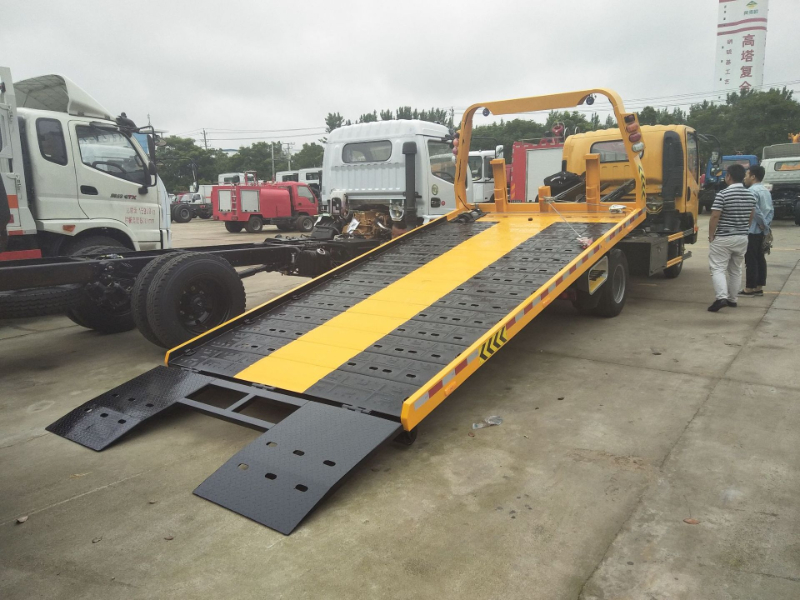

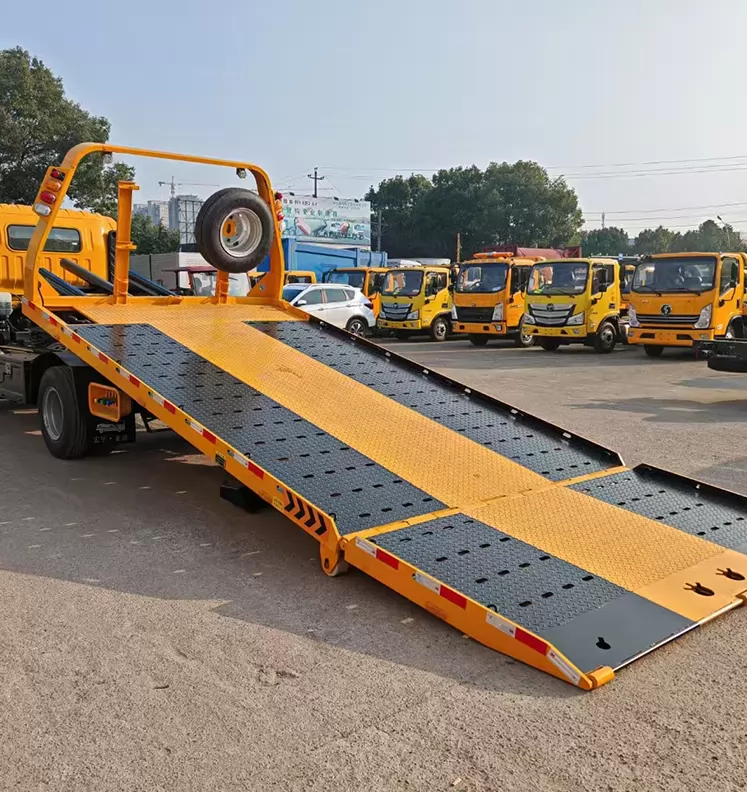

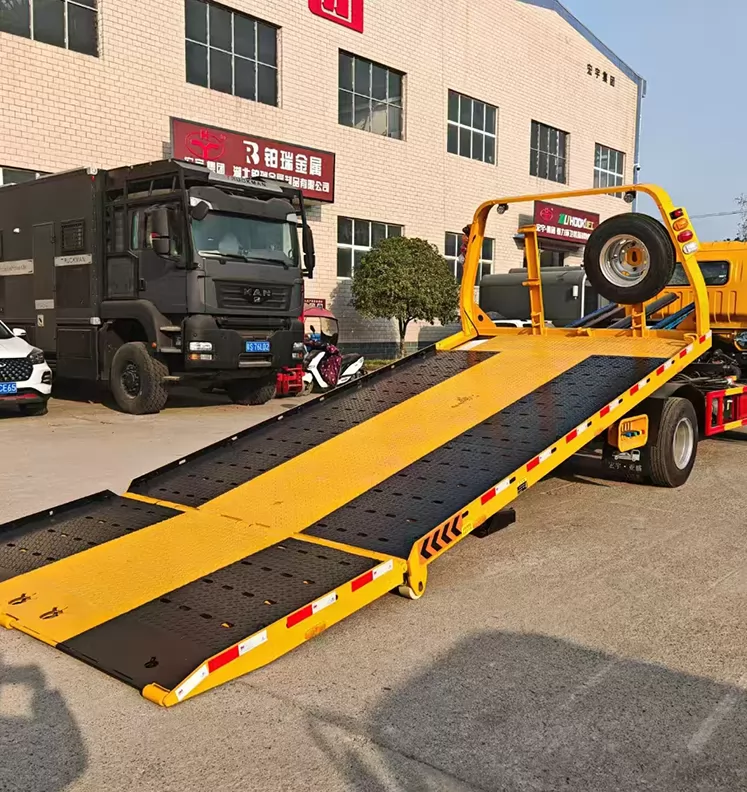

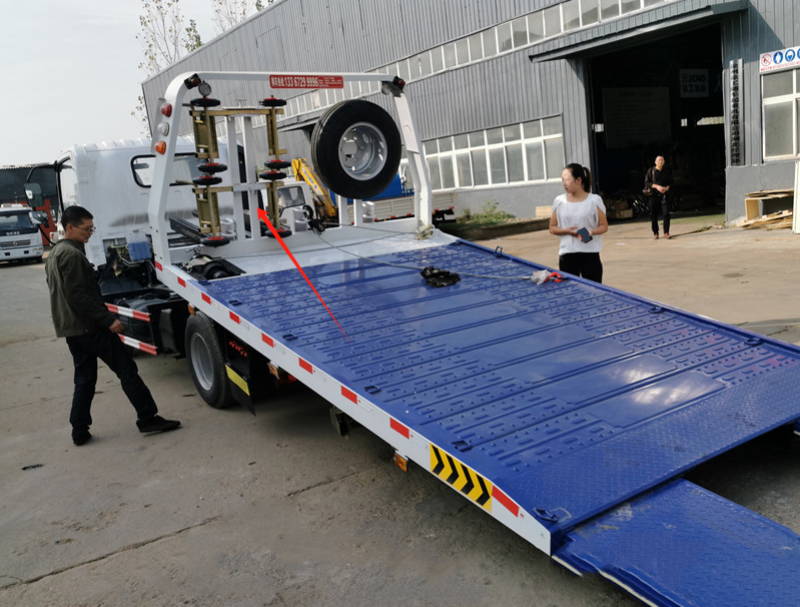

The upper part of the box body adopts a whole plate stamping anti-slip flat plate, which has the feature of permanent non-deformation.
Plate size is 5600mm long and 2400mm wide. the load capacity of the flat plate is 6 tons. If you need, we can adjust the load capacity to 3T/4T/5T/7T/8T/10T/13T

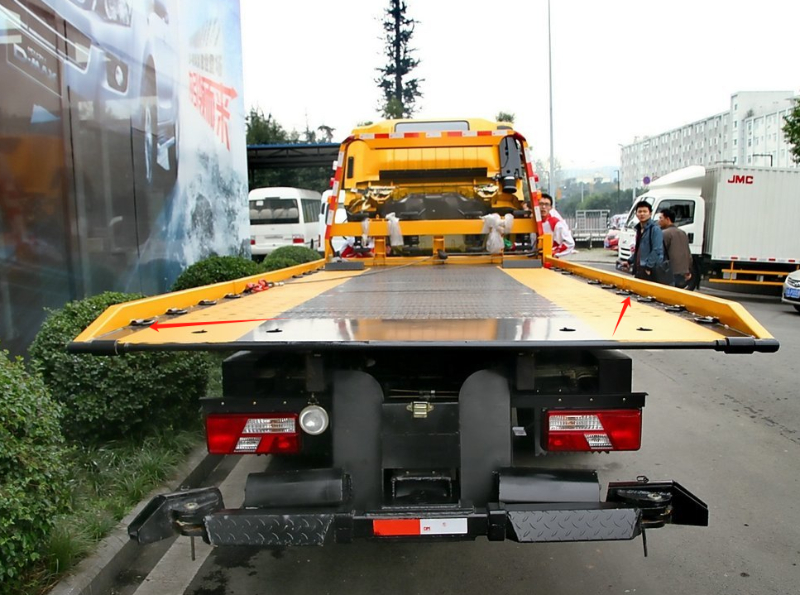

On both sides of the flat plate, there are five galvanized floor buckles distributed. They are used to fix the straps after the accident vehicle gets onto the flat plate.

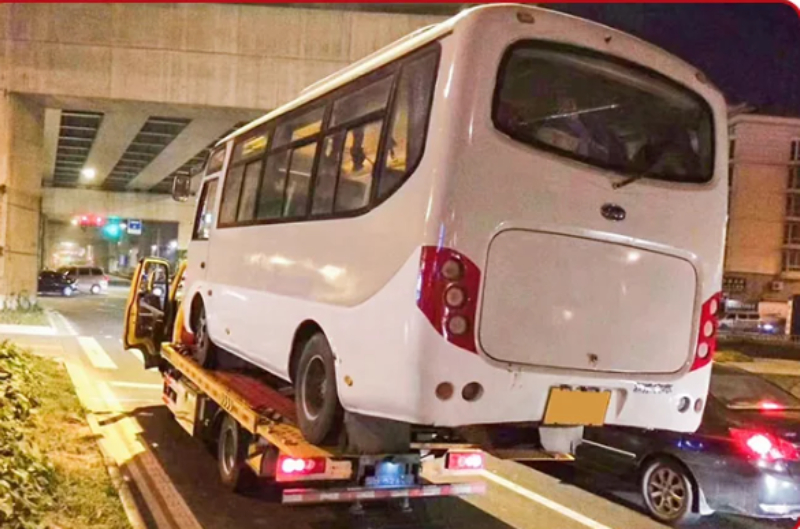

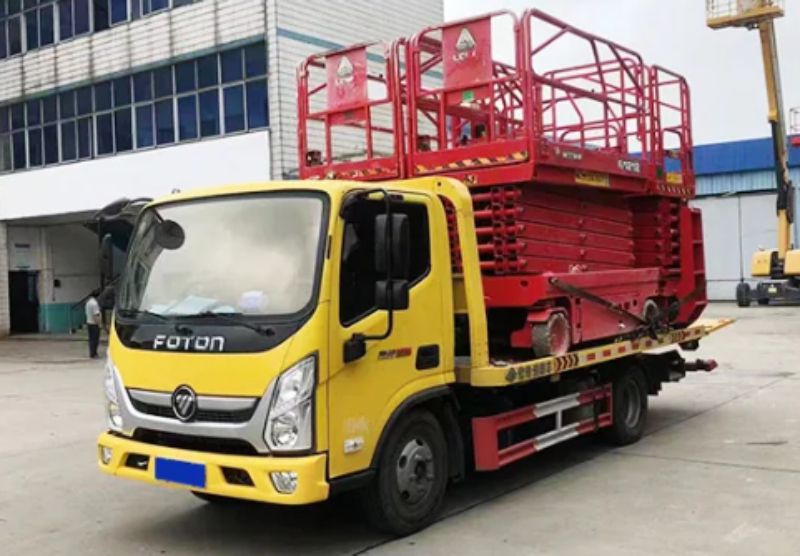

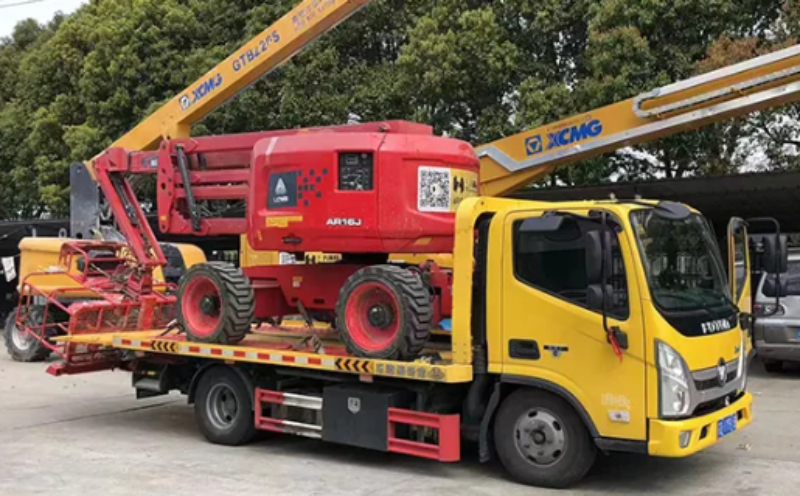

For equipment transportation, car transportation, disaster relief and risk resistance, accident rescue.

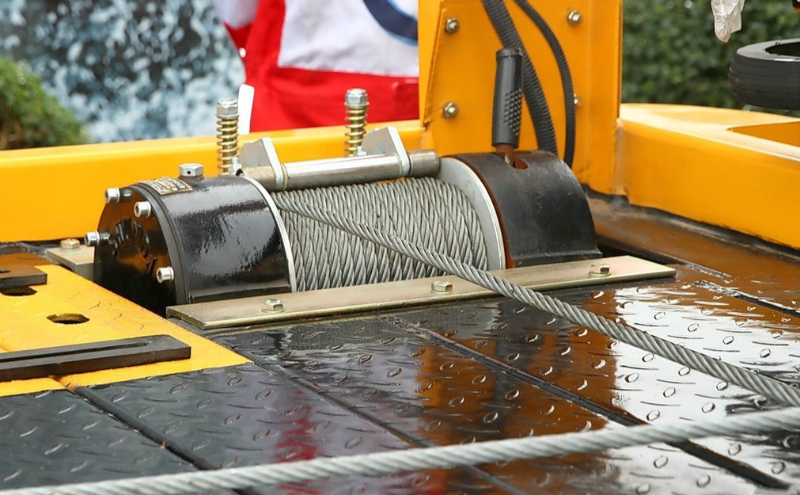

At the left front of the flat plate, there is a hydraulic winch equipped. The capacity can be selected as 3T/4T/5T/6T as needed. It is equipped with a 25-meter steel wire rope. The other end of the steel wire rope is connected to a steel hook, which is convenient for towing when towing.

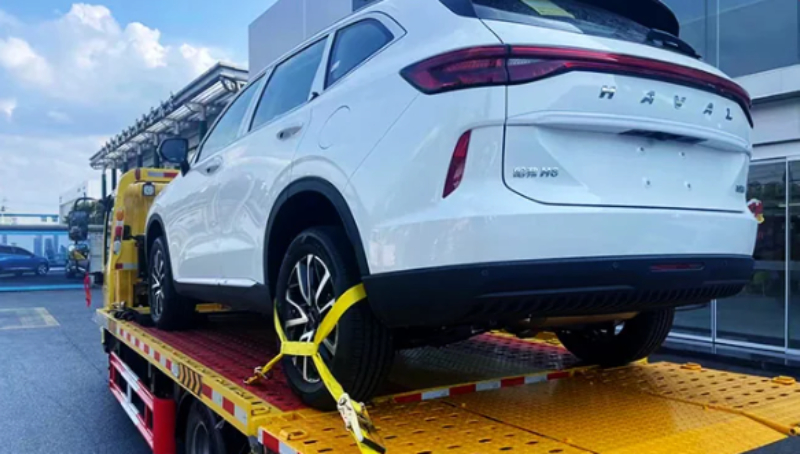

When the towed vehicle is placed on the flatbed, the vehicle stopper is used to hold the tires of the consigned vehicle to prevent it from moving and shaking. The sliding limit is reasonably designed and easy to use, which can well protect the consigned vehicle.

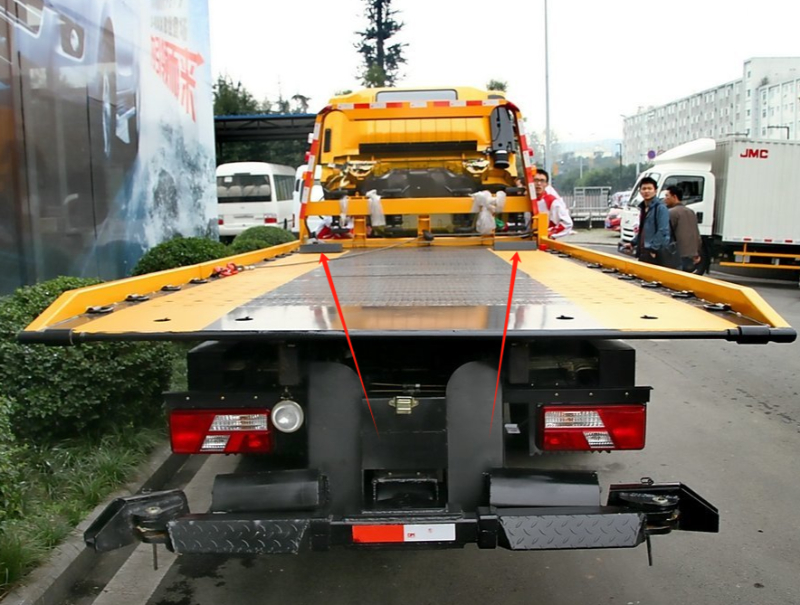

Two auxiliary wheels are fixed on the frame above the flat plate. It is mainly used for the rear of the lifted vehicle when it is being lifted.
The safety warning light on the top of the cab is turned on during operation to remind passing vehicles to give way. Additionally, long rows of 24V electronic safety warning lights are installed on each side of the frame above the flatbed, further enhancing safety.
The safety warning light on the top of the cab is turned on during operation to remind passing vehicles to give way. Additionally, long rows of 24V electronic safety warning lights are installed on each side of the frame above the flatbed, further enhancing safety.

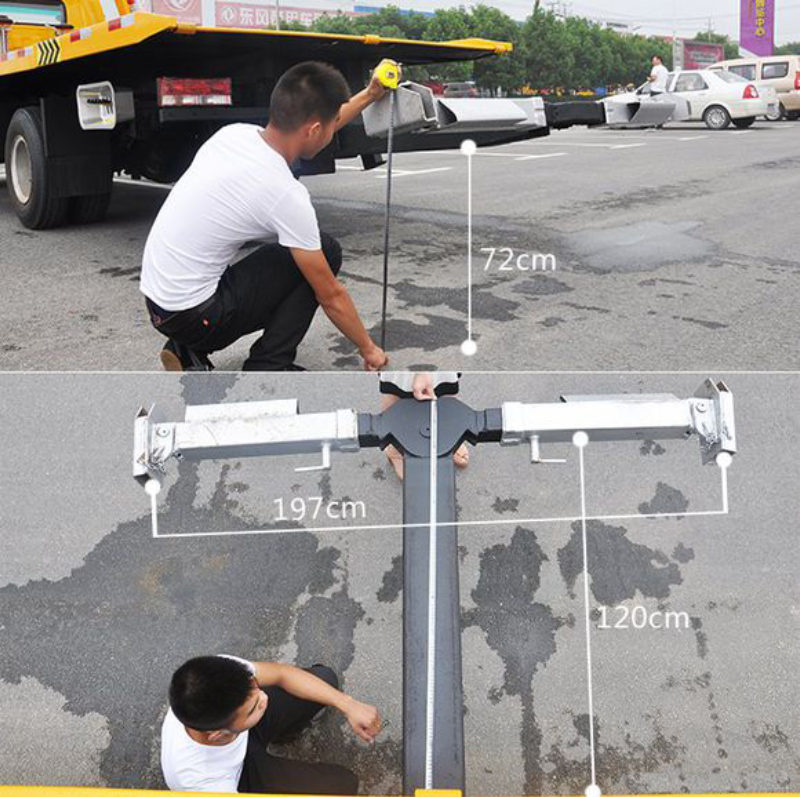

The rear lifting mechanism at the tail of the flat plate has a boom that can lift 1.9 tons. The boom is 1.97 meters wide, slightly narrower than the flat plate. When fully lifted, the maximum height of the boom from the ground is 72cm, and when fully extended, the distance from the flat plate is 120cm
Application scenarios
