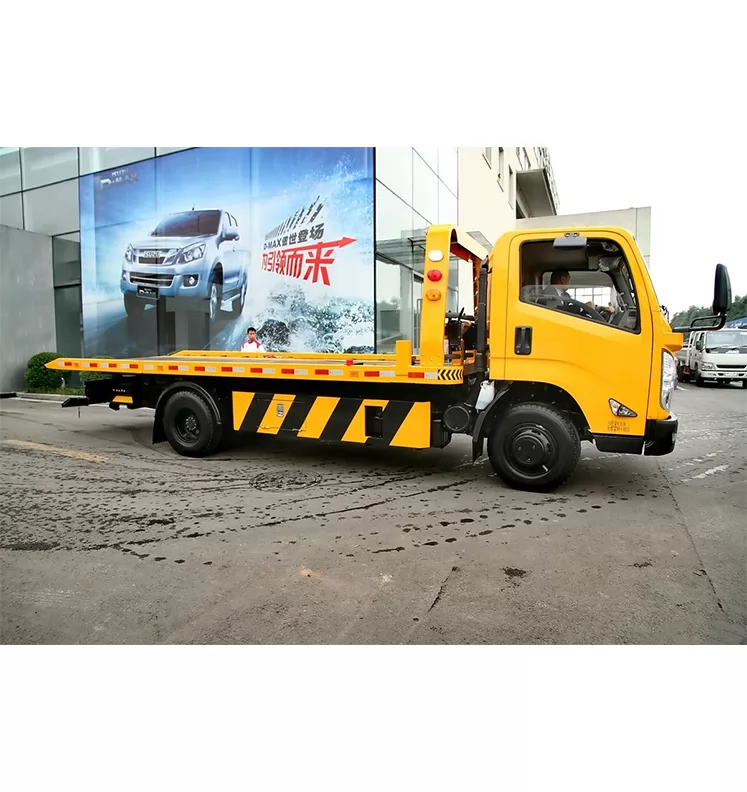

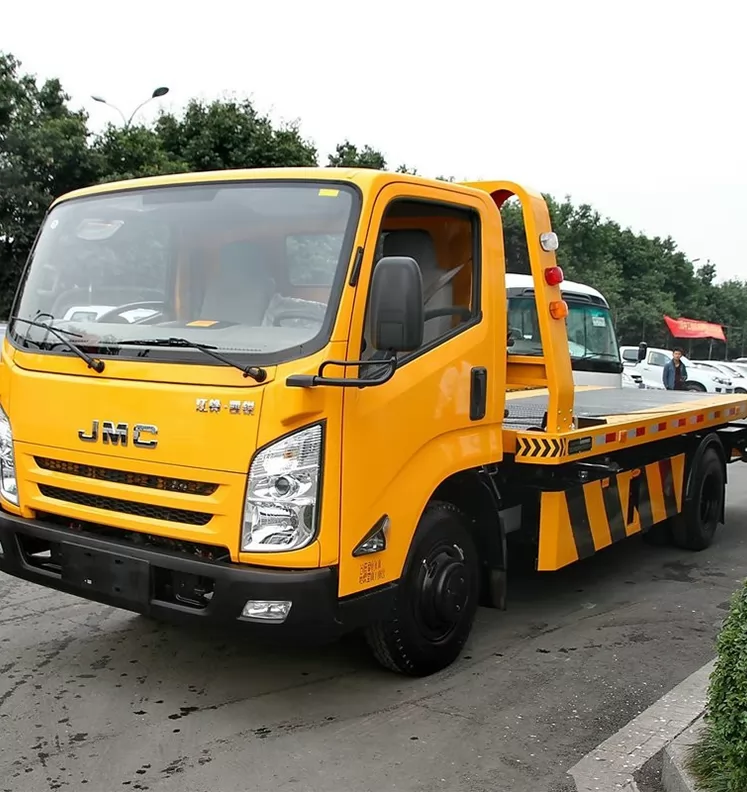

5T Flatbed Tow Truck

Flatbed tow truck

for faulty road vehicles, urban traffic violation vehicles and emergency rescue.

Carrying capacity: 4T /5T / 6T

Composition and structure

Gear oil pumps, power take-offs, junction cylinders, oil filters, multi-way valves, hydraulic winches, hydraulic locks, balance valves, drag chains, etc.

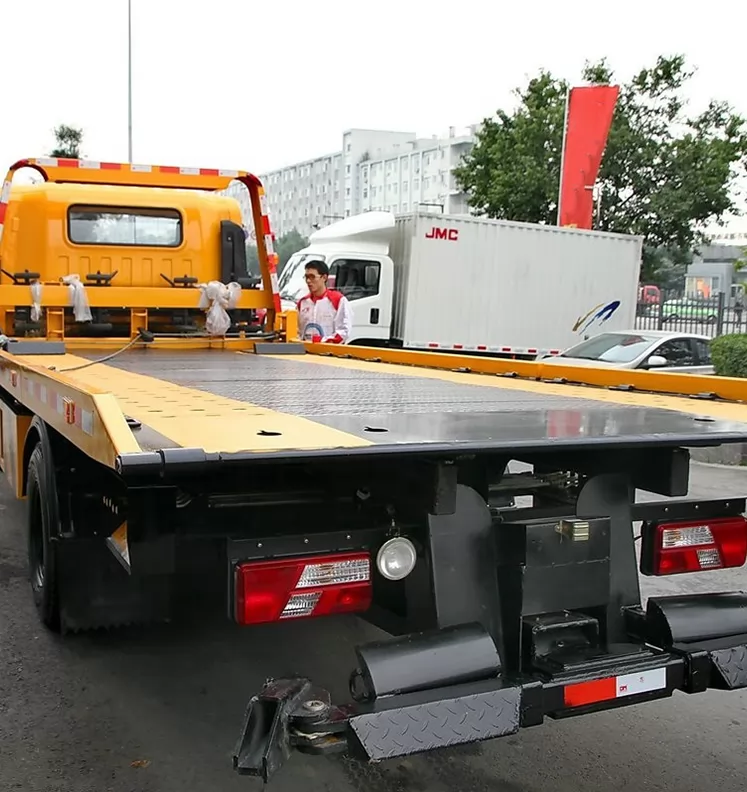

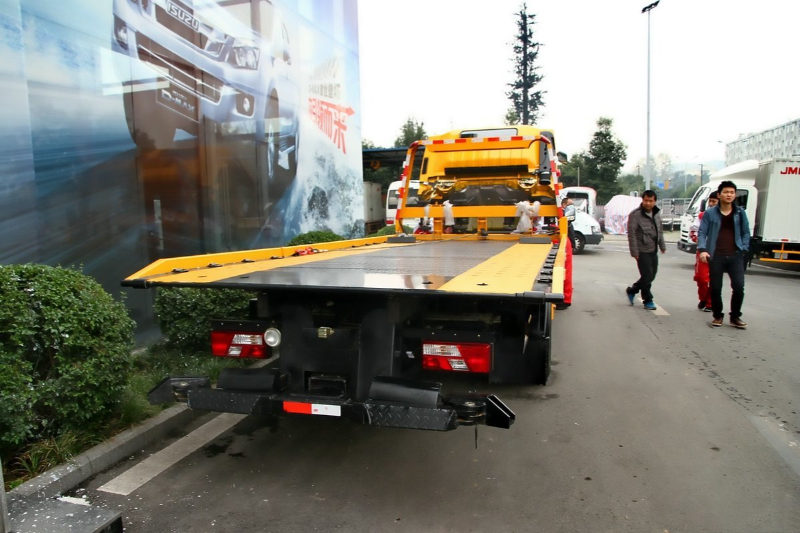

The flatbed size of this vehicle is 6300*2400mm.

It is composed of the loading platform assembly, the integral stamped flat plate, the subframe assembly, the boom assembly, the two side operating mechanism assemblies, the hydraulic system and the electrical system.

Bring three work lights.

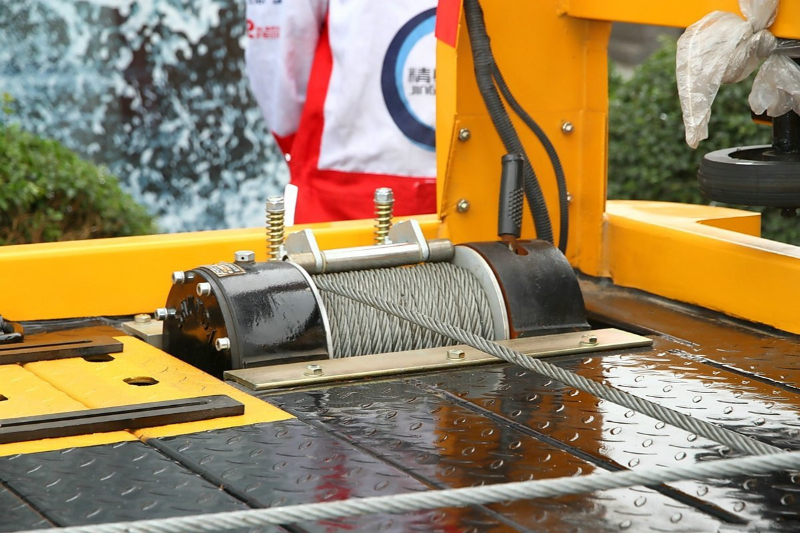

4tons hydraulic winch (25-meter steel wire rope).

Accessories:

One toolbox, one hand washing box, equipped with two small carts (auxiliary wheels), six binding straps, one pair of L-shaped tire support frames, one pair of forks, one pair of fork seats, one chain hook. 10-ton three-section rear support arm, one pair of fork seats, two pairs of forks

The carrying capacity of the wrecker : 3tons、5tons、8tons、10tons、12tons、14tons、18tons、20tons.

Flat plate material: Pressed plates or whole checkered plates are used, which make the plate surface flatter and have higher strength. The assembly parts are formed by cold stamping.

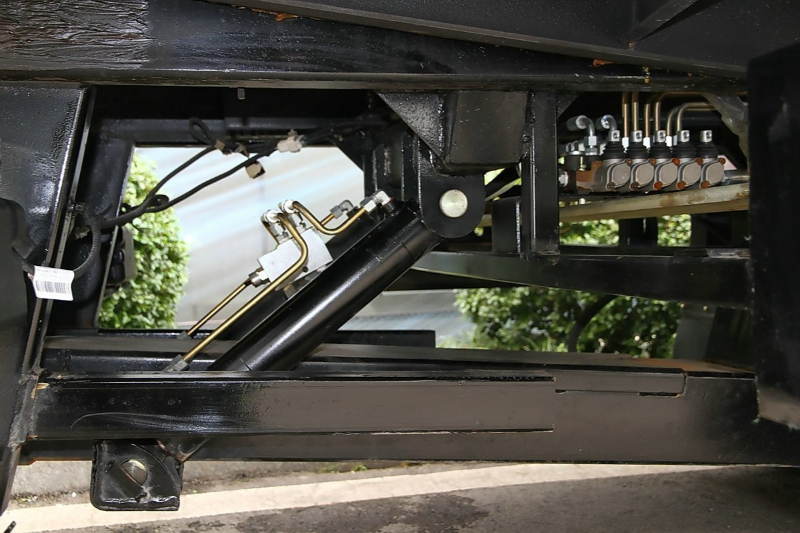

The inclined oil cylinders are arranged on the inner side of the frame and supported on the same crossbeam, with uniform load distribution, which greatly improves the service life of the entire vehicle.

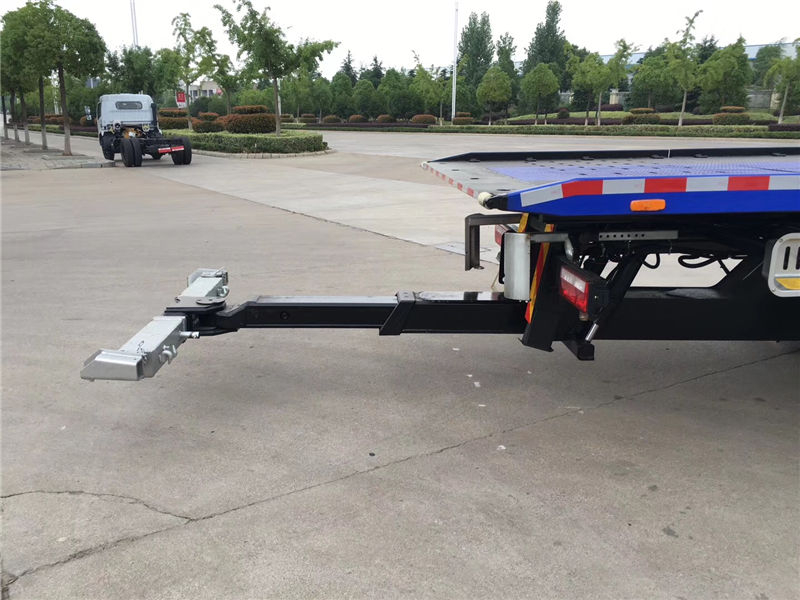

Lifting mechanism: By using the telescopic, lifting, and load-carrying folding actions of the boom, the damaged vehicle is lifted from the front or rear, and then the entire vehicle is towed away from the scene

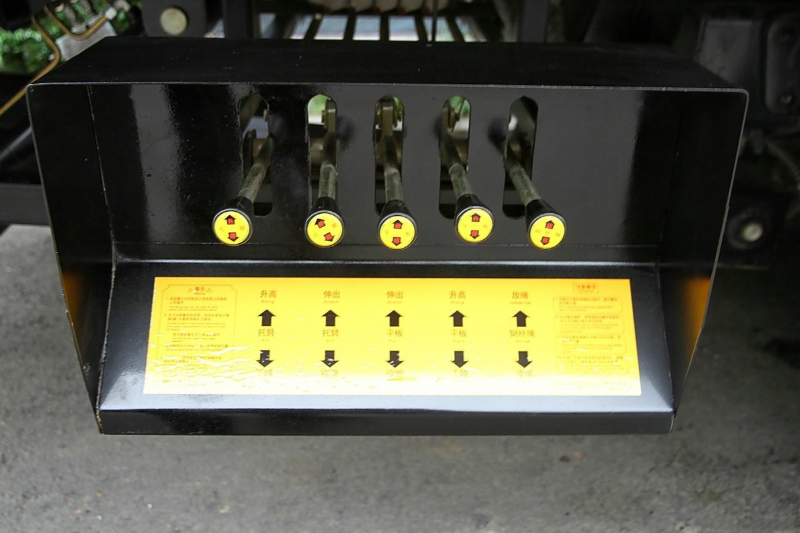

Double-sided manual operation device, high-quality hydraulic components
