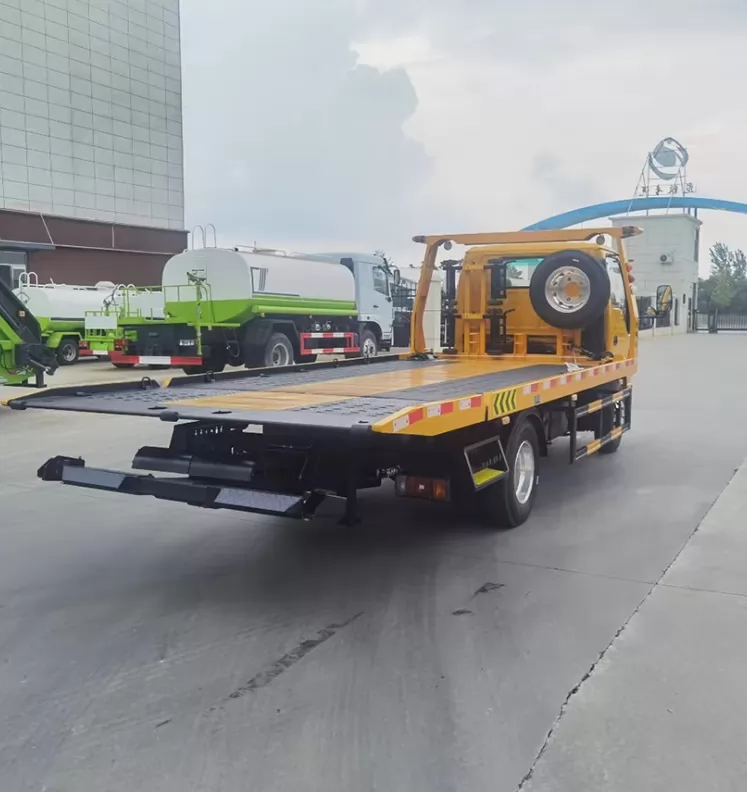

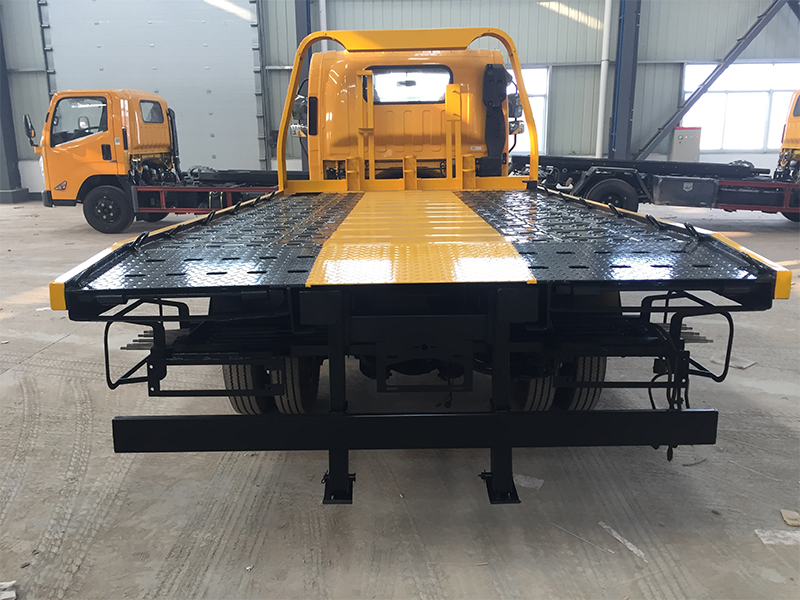

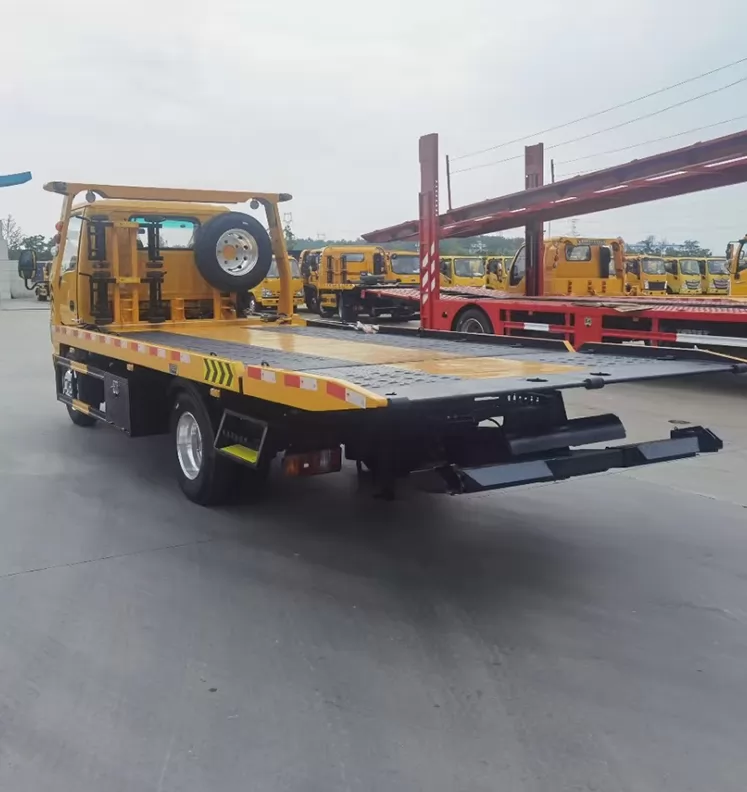

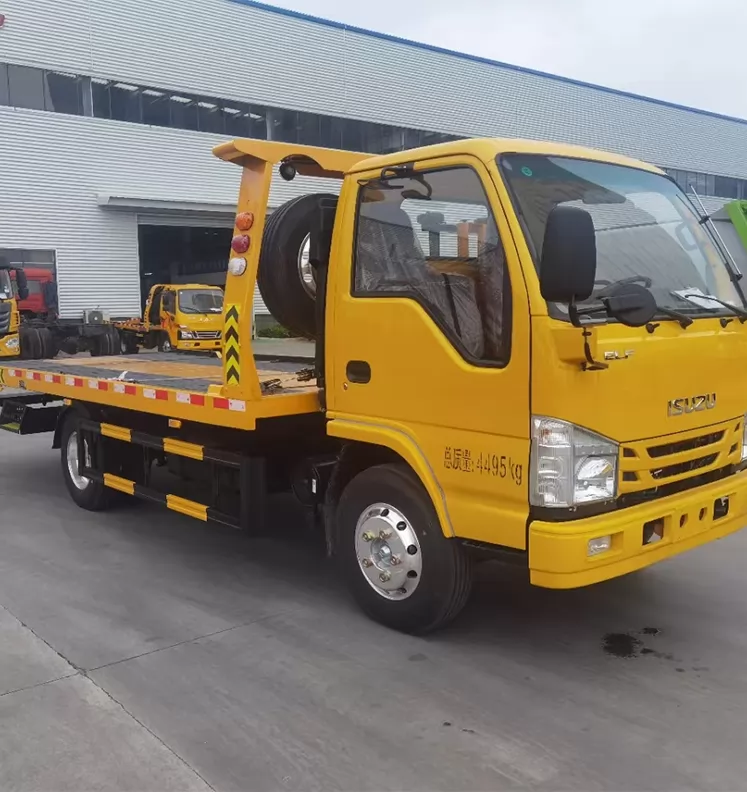

| ISUZU 4T wrecker truck | ||
| Cab | Configuration | 100P,single row cab, allowable 3 passengers,air conditioner, USB radio interface, car intcrior |
| Color | White,other color is optional | |
| Engine | Model | 4KK1N6LB |
| Emission | Euro 5 | |
| Type | 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine | |
| Rated power | 120hp, | |
| Displacement | 2500ml | |
| Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | |
| Tire | Size | 7.00R16 |
| Number | 6+ 1 nos | |
| Front axle | 2.5 tons | |
| Rear axle | 4.5 tons | |
| Drive fonn | 4X2 | |
| Suspension | Multi leaf springs | |
| Rated voltage | 24V,DC | |
| Transmissions | Isuzu MSB five speed transmission, 5 speed *ward 1 reverse | |
| Steering device | Power assisted steering | |
| Wrecker structure parameters | |
| Equipment | 2 units of towing wheel, 1 unit of 4 ton winch, 1 unit of steel wire rope, 1 unit of spare tire, 1 unit of jack, 1 unit of tire sleeve, 4 units of wrecker binding, 1 unit of alarm lamp. |
| Flat-bed dimensions | 5600*2300mm |
| Flat-bed Max capacity | 4000kg |
| Max under-hoisting capacity | 3000kg |
| Winch numbers | 1 unit |
| Max towing capacity of winch | 4000kg |
| Max towing speed | 40km/h |
| Length of steel wire rope | 20m |
| Speed of steel wire rope | 8 m/min |
