| [Vehicle Technical Parameters] | |||
| Vehicle name | Truck-mounted crane | Vehicle brand | ISUZU |
| Engine (ps) | ISUZU 380HP | Displacement (ml) | 9700 |
| Gearbox | Manual 12 | External dimensions (mm) | 12000×2550×3990 |
| Total mass (kg) | 31000 | Rated mass (kg) | 5.5T/16T |
| Curb weight (kg) | 16800 | Axial load (kg) | 4 axle,(8X4) |
| Frame (mm) | 300(Partial three floors) | Front and rear axles (T | 11.00R20 |
| Wheelbase (mm) | 2150 + 4250 + 1350 | Number of axes/drive form | 1940/1940/1860 |
| The number of tires | 12 + 1 | Front and rear track (mm) | 12000×2550×3990 |
| Fuel type | Diesel | Maximum speed (km/h) | 100 |
| Emission standard | Euro 2 /3/5/6 | Axle capacity | 6500/6500/18000 |
| [Technical Parameters of Crane] | |||
| Crane brand | XCMG, Sany, Shimei, etc | Crane tonnage | 10 tons /12 tons |
| Body size | 8500 * 2550 * 2300 | Crane type | Straight arm/folded arm |
| Thickness of the body panel | 3mm(carbon steel) | Crane boom | 3-arm / 4-arm |
| Thickness of the base plate | 4mm(carbon steel) | Crane material | HG785 |
| Body material | Q235(Carbon steel) | Crane section structure | U-shaped/hexagonal |
| Rotation mode | 360-degree full hydraulic rotation | Self-weight of the crane | 3.6 tons /3.95 tons |
| Hydraulic cylinder | Joint venture/Import | Working radius | 12 meters /15.2 meters |
| Hoisting system | Imported from Italy | Lifting height | 17 meters |
| Operating device | Manual device/remote control device | Crane external dimensions | 2508x2480x1040 |

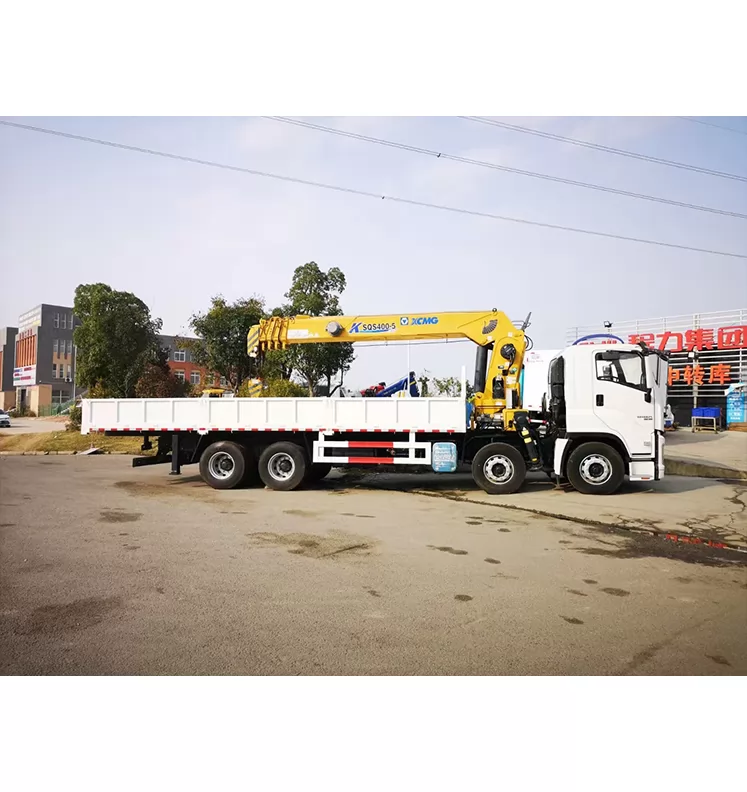

The ISUZU 14T Truck Mounted Crane is a heavy-duty lifting and transportation solution designed to meet the toughest demands of construction, logistics, and industrial operations. Built on the robust ISUZU chassis platform, this vehicle combines superior load-handling capability, high stability, and intelligent control systems to deliver exceptional performance in various working environments. With a rated lifting capacity of 14 tons, it provides the perfect balance of strength, precision, and versatility for demanding lifting tasks.
The ISUZU 14-ton truck-mounted crane integrates transportation and lifting functions into one efficient vehicle, eliminating the need for separate cranes or loaders. Designed for modern construction sites, logistics yards, and infrastructure projects, it provides enhanced flexibility and productivity while maintaining ISUZU’s signature reliability.
Equipped with an advanced hydraulic telescopic boom, this model ensures smooth and precise lifting operations. Its ISUZU heavy-duty chassis guarantees strong load-bearing capacity and road adaptability, making it suitable for both on-road and off-road use. The truck’s optimized structure minimizes fuel consumption and maintenance requirements, offering excellent long-term operational economy.
At the heart of the ISUZU 14T Truck Mounted Crane lies a state-of-the-art hydraulic lifting system that provides strong, stable, and efficient performance.
High Lifting Capacity: Rated for 14 tons, the crane can handle large loads with ease, suitable for steel structures, machinery, building materials, and logistics operations.
Hydraulic Telescopic Boom: The boom adopts a multi-section telescopic design, allowing flexible reach and precise positioning for high-altitude or extended-distance lifting tasks.
360° Rotating Platform: The crane features full-circle rotation for maximum flexibility, enabling operators to position loads accurately in tight spaces.
Smooth Control System: Hydraulic flow control ensures precise and safe movement during lifting, reducing vibration and enhancing stability.
These features allow the ISUZU 14T crane truck to perform high-intensity lifting tasks efficiently and safely in diverse environments.

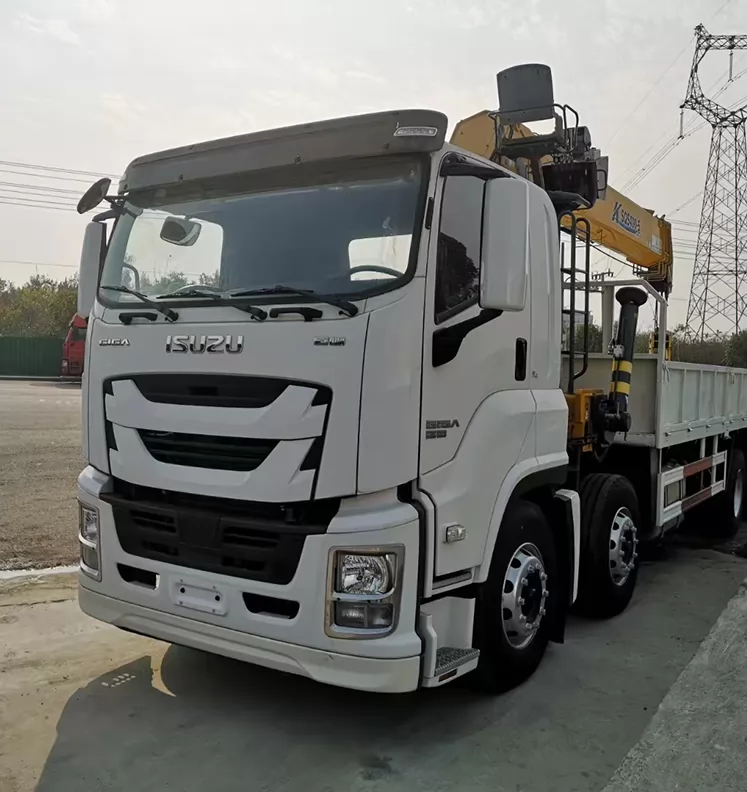

The vehicle is built on an ISUZU heavy-duty truck chassis, known globally for its durability, stability, and superior load performance. The frame structure is made of high-tensile steel, ensuring that the vehicle can withstand continuous heavy operation without deformation.
High Torque Engine: Provides powerful traction and reliable driving performance under full load conditions.
Reinforced Axles and Suspension: Enhances vehicle stability when carrying or lifting heavy loads.
Strong Load Platform: Designed for both lifting and transportation, supporting a variety of industrial and construction applications.
The combination of ISUZU’s reliable powertrain and advanced crane technology makes this model a top performer in its class.
The ISUZU 14T Truck Mounted Crane adopts integrated hydraulic and electronic control technology, ensuring responsive and precise operation under all working conditions.
Hydraulic System: Equipped with high-performance pumps, valves, and cylinders sourced from well-known international brands for consistent pressure and flow control.
Electronic Control System: Intelligent monitoring ensures synchronization between lifting, rotating, and extending movements, improving safety and work accuracy.
Safety Protections: Features include overload alarms, emergency stop switches, and automatic limit devices to prevent misoperation and accidents.
This combination of hydraulic power and intelligent control provides smooth, stable, and secure lifting performance even during long working hours.
Designed with the operator’s comfort and safety in mind, the ISUZU 14T Truck Mounted Crane offers a human-centered control interface and multiple safety enhancements.
Dual Operation Options: Crane can be controlled from both the cabin and the external control platform for flexible and safe operation.
Ergonomic Controls: Hydraulic levers and electric joysticks are intuitively arranged for precise operation.
Safety Devices: Outriggers are equipped with safety interlocks and pressure sensors to ensure stability on uneven ground.

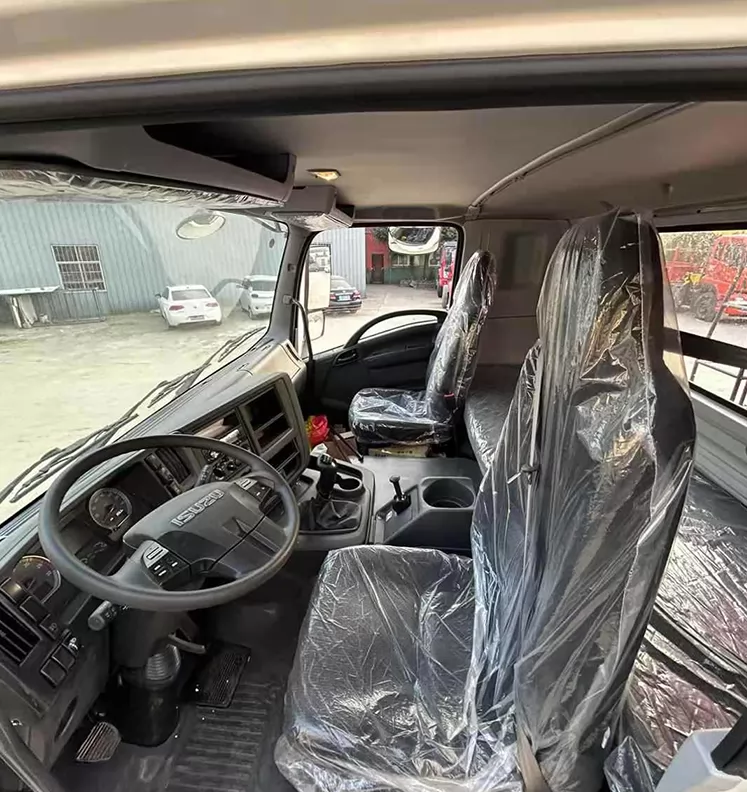

Comfortable Cabin: Spacious ISUZU driver cabin with vibration reduction, air conditioning, and clear visibility enhances operator comfort during long shifts.
The user-friendly design reduces operator fatigue, improves work precision, and guarantees maximum safety throughout the lifting process.
Every component of the ISUZU 14T Truck Mounted Crane is engineered for durability and longevity.
High-Strength Boom Material: The boom sections are made from fine-grain, high-tensile steel, ensuring excellent fatigue resistance and structural stability.
Corrosion Protection: The crane and chassis components are treated with anti-rust coatings for long-term outdoor use.
Modular Design: Simplifies component replacement and shortens maintenance time.
Reliable Outriggers: Wide-span outriggers provide solid ground stability and are easy to deploy and retract.
These features make the ISUZU 14T crane truck ideal for intensive, long-term industrial use with minimal maintenance downtime.

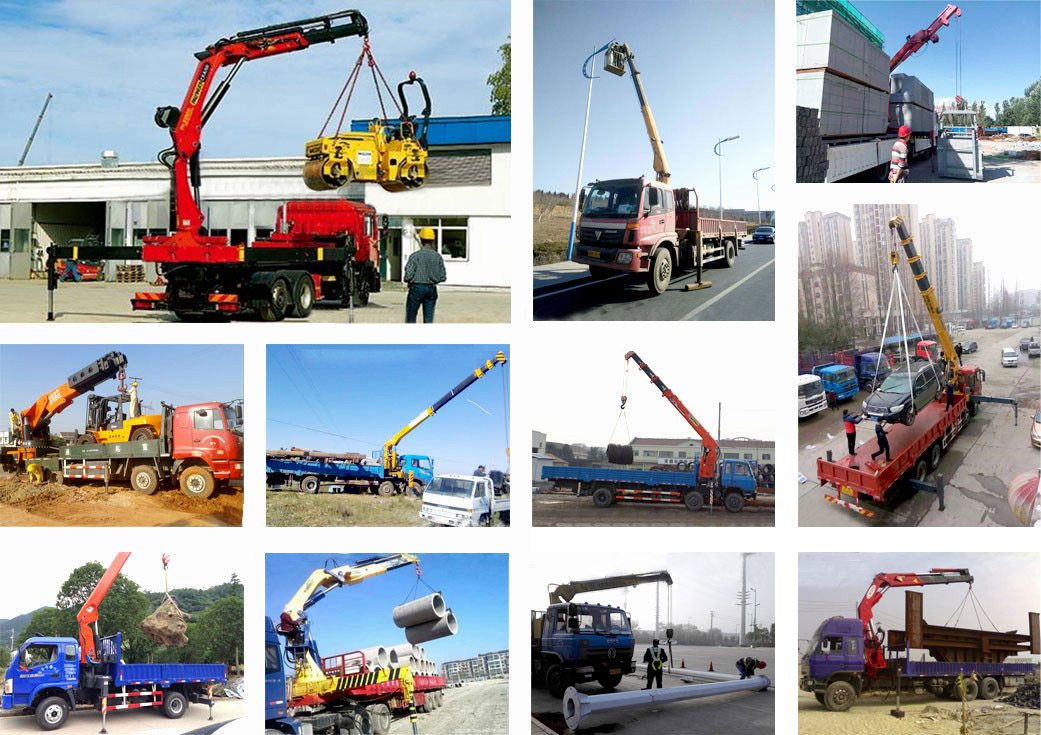

The ISUZU 14T Truck Mounted Crane is a versatile lifting and transport vehicle suitable for a wide range of applications:
Construction Industry: Lifting and positioning steel beams, concrete panels, and heavy building materials.
Logistics and Warehousing: Handling containers, machinery, and large equipment.
Utility Maintenance: Installing and repairing power lines, streetlights, and telecommunication towers.
Industrial Operations: Equipment relocation, loading, and unloading in factories or workshops.
Municipal Services: Bridge maintenance, landscaping projects, and public facility installations.
Its powerful lifting performance and excellent maneuverability make it indispensable for both urban and rural operations.
The ISUZU 14T Truck Mounted Crane is designed not only for strength but also for sustainability and cost-efficiency:
Fuel Efficiency: Optimized engine and transmission system reduce fuel consumption during both driving and crane operation.
Low Emission Design: Complies with Euro and international environmental standards for cleaner operation.
Reduced Maintenance Costs: Modular design and high-quality components extend service intervals and lower operating expenses.
Long Service Life: Durable structure and corrosion-resistant finish ensure consistent performance over years of operation.
By combining power, precision, and environmental responsibility, this model provides exceptional long-term value.
Exceptional Lifting Power: 14-ton capacity handles heavy equipment and materials with ease.
Trusted ISUZU Chassis: Ensures reliable performance, global parts availability, and excellent resale value.
Precision Control: Advanced hydraulic system allows smooth, accurate operation.
Safety and Stability: Multiple protection systems ensure secure operation under all conditions.
Cost-Effective Operation: Low fuel consumption and reduced maintenance frequency.
The ISUZU 14T Truck Mounted Crane is a powerful, efficient, and versatile lifting solution tailored for today’s demanding construction and industrial environments. Combining ISUZU’s proven chassis technology with advanced crane engineering, it delivers unmatched lifting performance, superior stability, and long-lasting reliability.
Whether for construction sites, logistics hubs, or infrastructure projects, this model offers a perfect balance of strength, precision, and economy, helping businesses improve operational efficiency while ensuring safety and sustainability.
