We offer a variety of Chinese brand truck chassis: SINOTRUCK, SHACMAN, ISUZU, JAC, FOTON. The capacity of the sweeping truck body can be customized according to actual needs; the dust bin is available in 6 m³, 8 m³, 12 m³, 16 m³, 18 m³ and 22 m³.
| Vehicle Parameters | |
| Chassis brand | ISUZU (KV100 series) |
| Gross vehicle weight | 4495 kg |
| Drive type | 4×2, LHD |
| High-pressure Cleaning | |
| Cleaning speed | 3 - 20 km/h |
| Cleaning width | 3.5 m |
| Cleaning water pressure | 10 MPa |
| Pump flow rate | 154 L/min |
| Suction and Sweeping | |
| Cleaning efficiency | ≥ 95% |
| Maximum inhalation particle size | 110 mm |
| Sweeping width | 3.5 m |
| Maximum sweeping capacity | 70,000 m³/h |
| Extrusion size of the disc-shaped brush | ≥ 400 mm |
| Sweeping and driving speed | 3 - 20 km/h |
| Tank Body | |
| Water tank rated capacity | 3 m³ |
| Garbage bin rated capacity | 5 m³ |
| Tank material | Stainless steel plates, water tank and garbage bin in split design |
| Garbage bin lifting angle | ≥ 50° |
| Hydraulic System | |
| Type | Electrical control |
| Main components | Gear pump, hydraulic motor, hydraulic cylinder, electromagnetic valve |
| System pressure | 16 MPa |
| Hydraulic oil tank capacity | 60 L |
| Oil temperature | 60° |
| High-pressure Water System | |
| Type | Plunger pump |
| Model | PT40 (Germany) |
| System pressure | 10 MPa |
| Speed | 1150 r/min |
| Water valve type | Electro-hydraulic high-pressure ball valve |
| Water valve pressure | 7 MPa |
| Nozzle type | High-pressure washing type |
| Water filter | Filter screen type |
| Low-pressure Water System | |
| Pump model | Chinese brand 60/90, 50/110 |
| Flow rate | 60, 50 m³/h |
| Head | 90, 110 m |
| Scraping Device | |

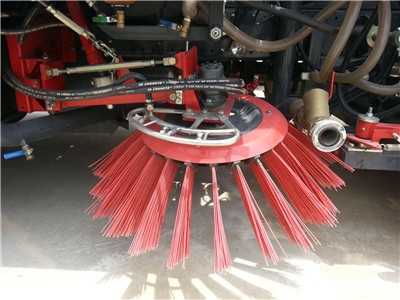

| Type | Two scraping discs, driven by hydraulic motors, with adjustable rotational speed, independently controllable, and featuring an automatic avoidance function |
| Disc sweeping diameter | 850 mm |
| Disc sweeping speed | High: 110, Medium: 80, Low: 50 |
| Disc sweeping angle | Forward tilt: 4-6°, Outward tilt: 4-7° |
| Suction Cup | |
| Type | Double suction ports, hydraulically controlled, spring suspension |
| Suction port diameter | 180 mm |
| Suction cup width | 2400 mm |
| Side Spray Nozzle | |
| Function | With automatic avoidance function |
Functions of the street sweeper truck: road cleaning; sweeping and washing; spraying for dust suppression; low-pressure flushing and other functions. It is widely used for road cleaning in urban areas, bridges, docks, airports and squares.
Characteristics:
1. The operation method adopted combines scrubbing and high-pressure cleaning, along with garbage collection and wastewater recycling.

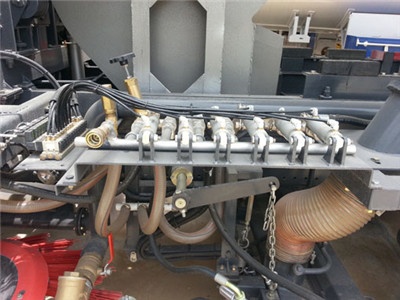

2. Center-mounted 2 brush discs + center-mounted high-pressure spray pipe + suction nozzle structure.
3. It has multiple operation functions including road sweeping, road washing, high-pressure cleaning, sewage recovery, low-pressure flushing, fog spraying and road barrier cleaning.
4. The layout of the water tank at the front and the garbage bin at the back; a semi-enclosed auxiliary engine compartment, with left and right turning corner doors and double-sided doors.
5. The grounding pressure of the side-sweep system is adjusted by a spring mechanism. During operation, it can be adjusted according to the road conditions to reduce the wear on the brush.

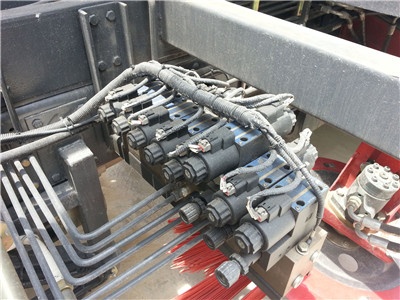

6. The high-pressure water pump and water nozzles all use imported products. The pump is a stainless steel pump head with a pressure of up to 120 Bar and a maximum flow rate of 115 L/min. The hydraulic valves are equipped with electromagnetic directional valves, arranged neatly, which is convenient for maintenance; the hydraulic motors adopt well-known Chinese brands, ensuring the reliability of the hydraulic system operation.
7. High-pressure centrifugal fan, with a maximum air volume of up to 5700 m³/h; the blade material is made of special steel, which is not prone to wear. Working method: first sweep, then rinse, and finally absorb. It can clean, rinse and absorb garbage and sewage all at once. The high-pressure water line is equipped with a quick-connect anti-freeze water blowing device interface to prevent water line components from being damaged due to low temperatures.

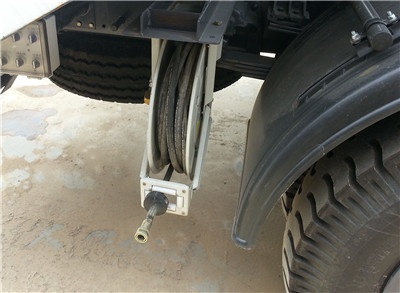

8. The trash bins and water tanks are made of stainless steel plates. Control method: implemented using a PLC programming controller; one-button operation, capable of achieving 9 different working modes. It is equipped with an automatic retraction flushing winch and a flushing gun; large flow rate and high pressure can perform powerful flushing on local oil stains.

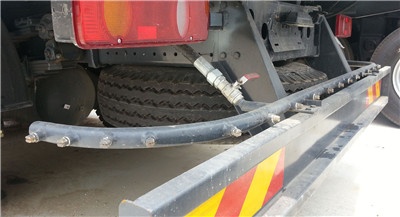

9. The rear guardrail is equipped with a row of high-pressure nozzles, which have the function of spraying water to suppress dust.
