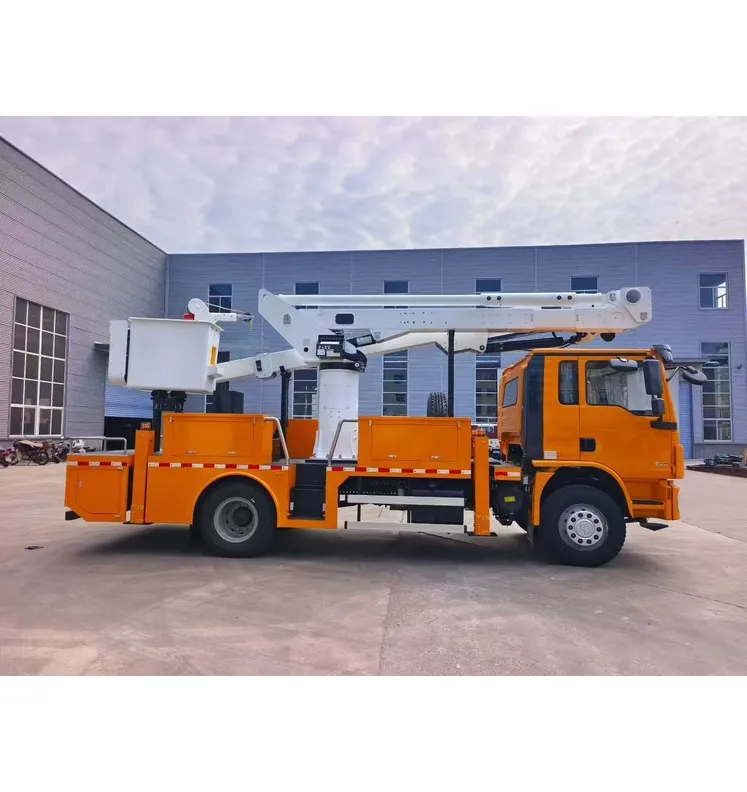

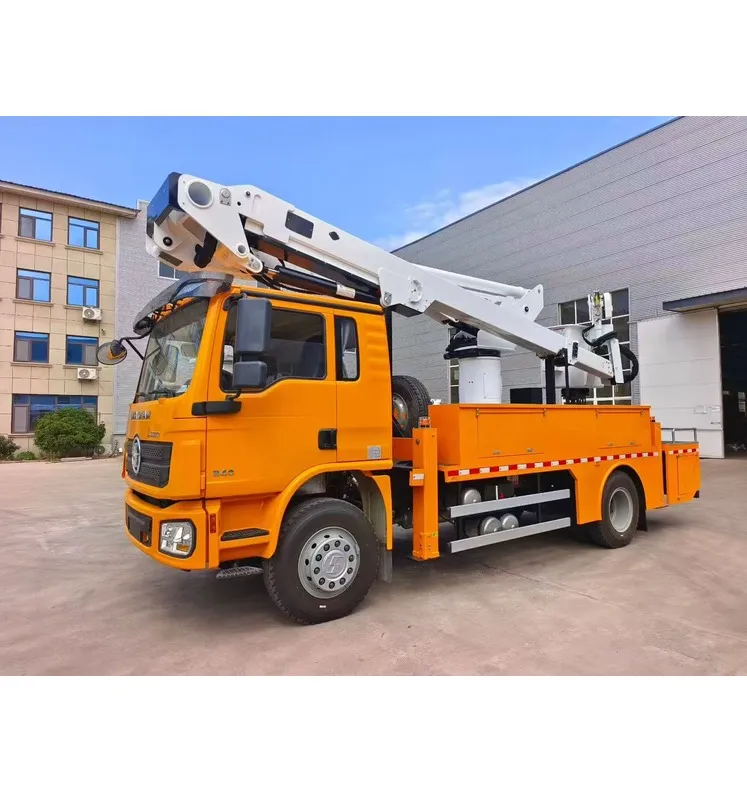

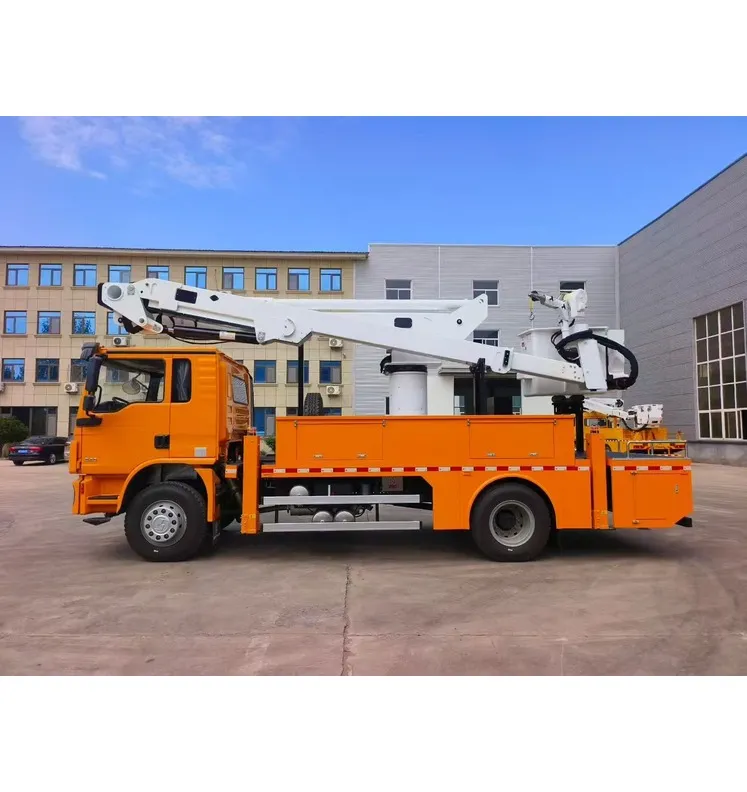

17meter 69kv overhead live-working insulated bucket truck

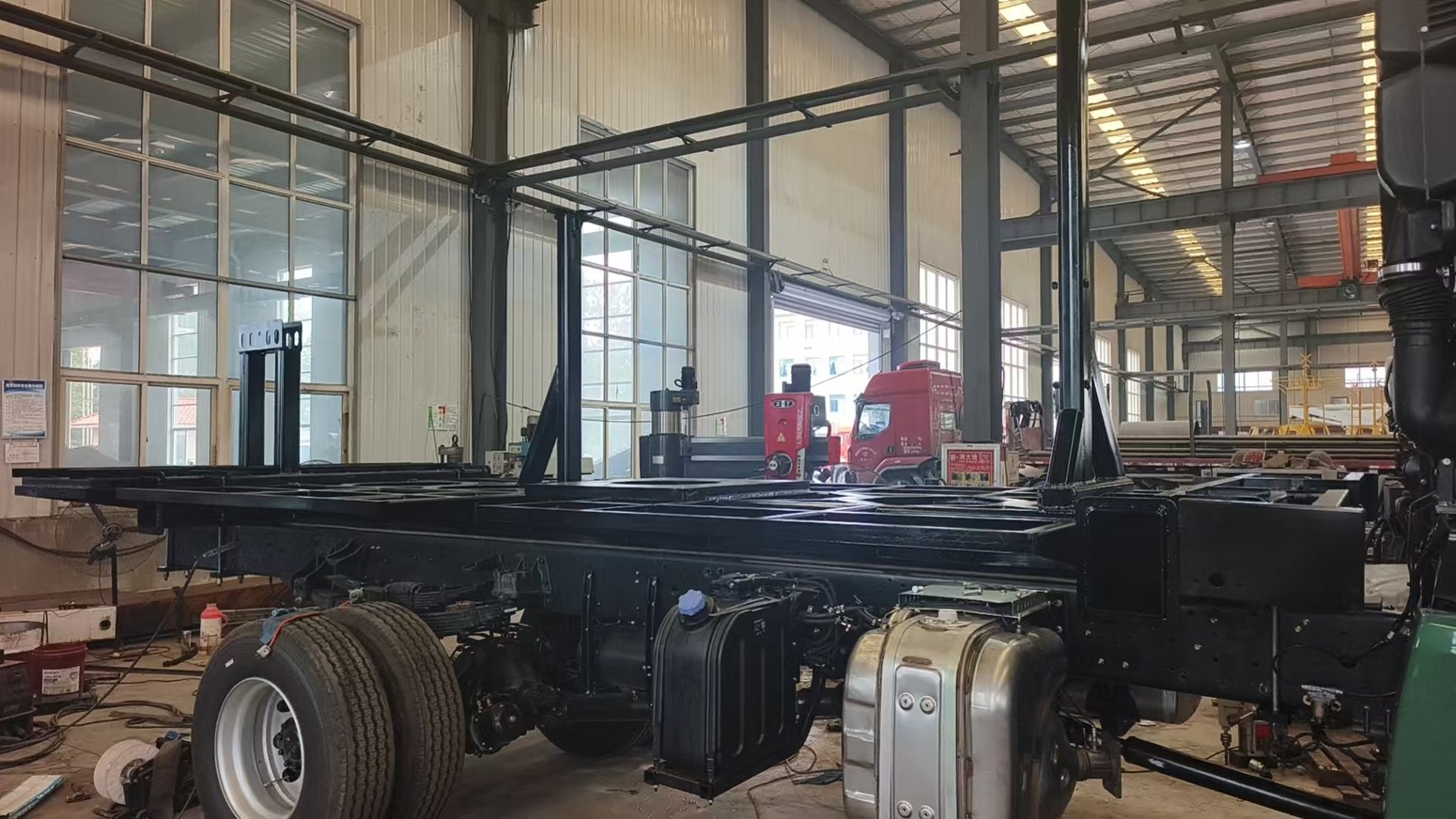

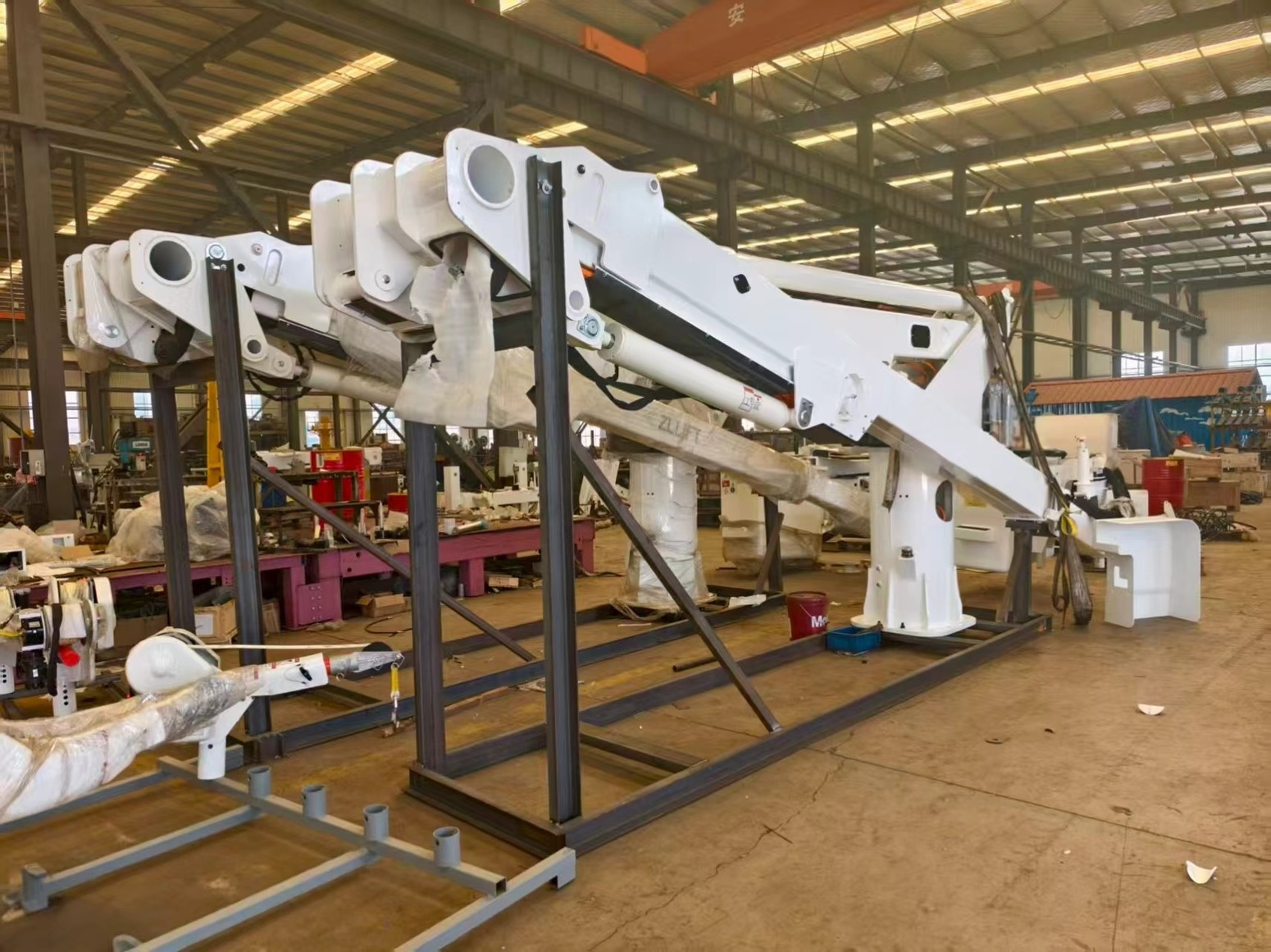

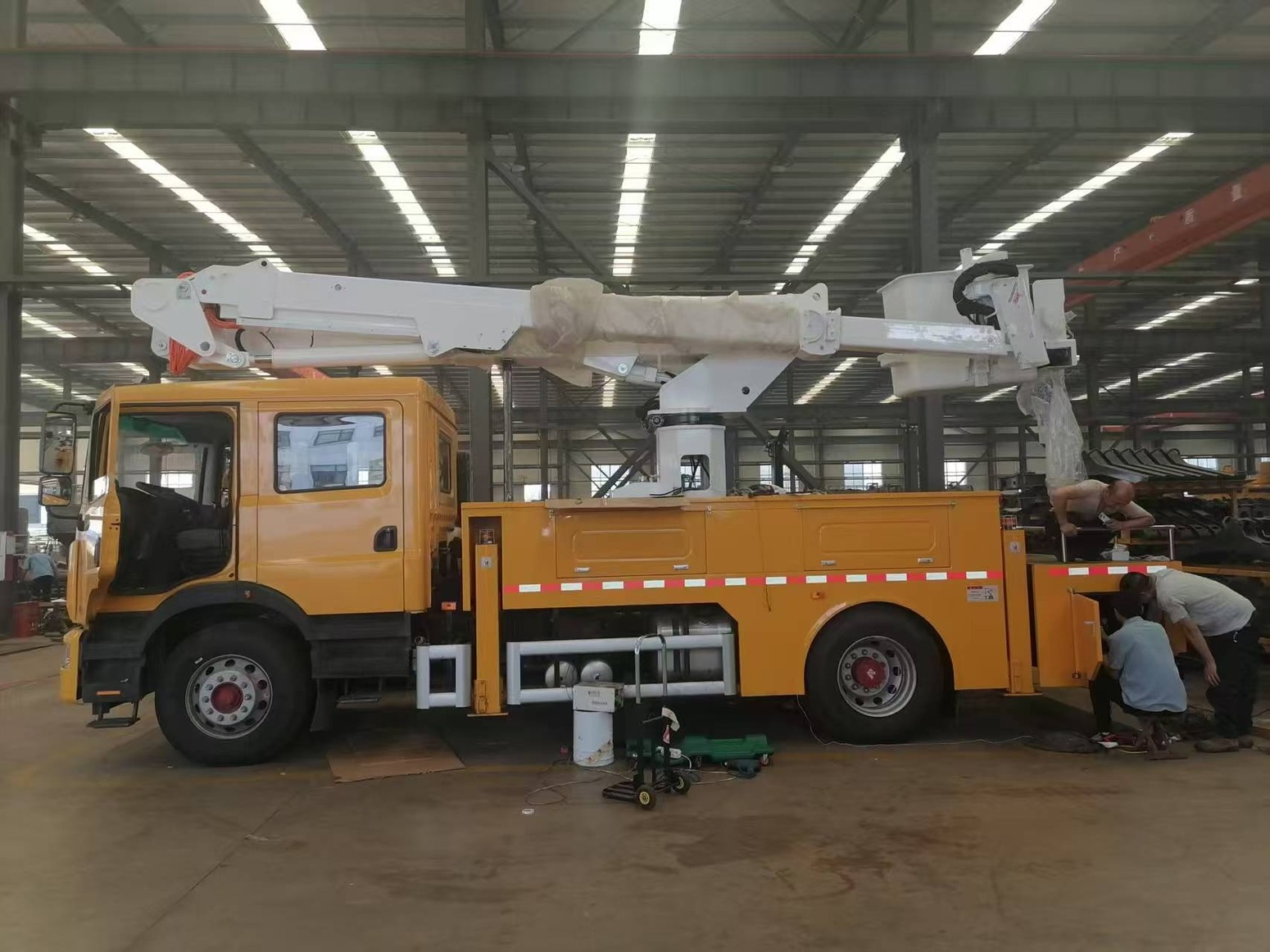

Production process of the workshop

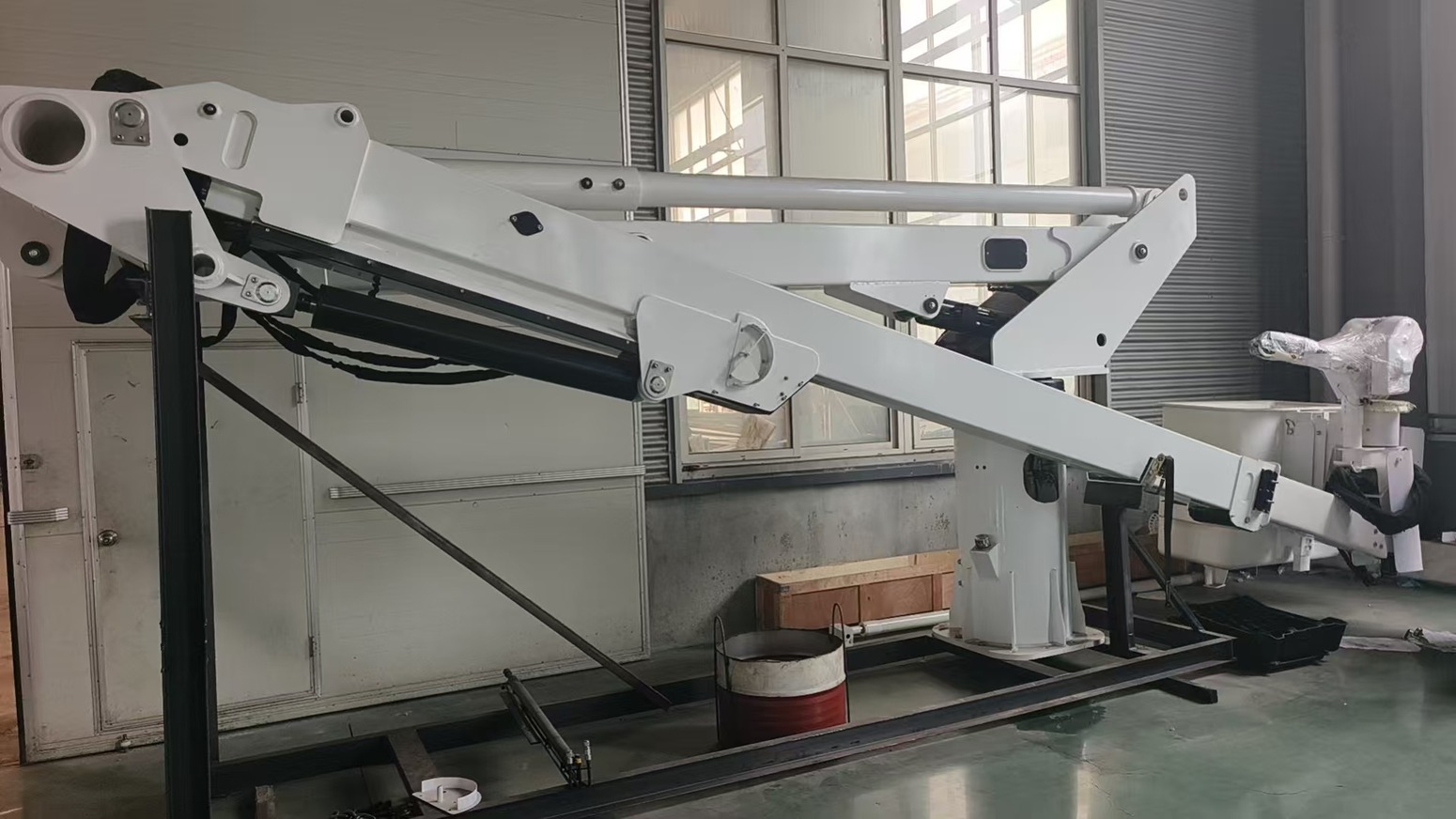

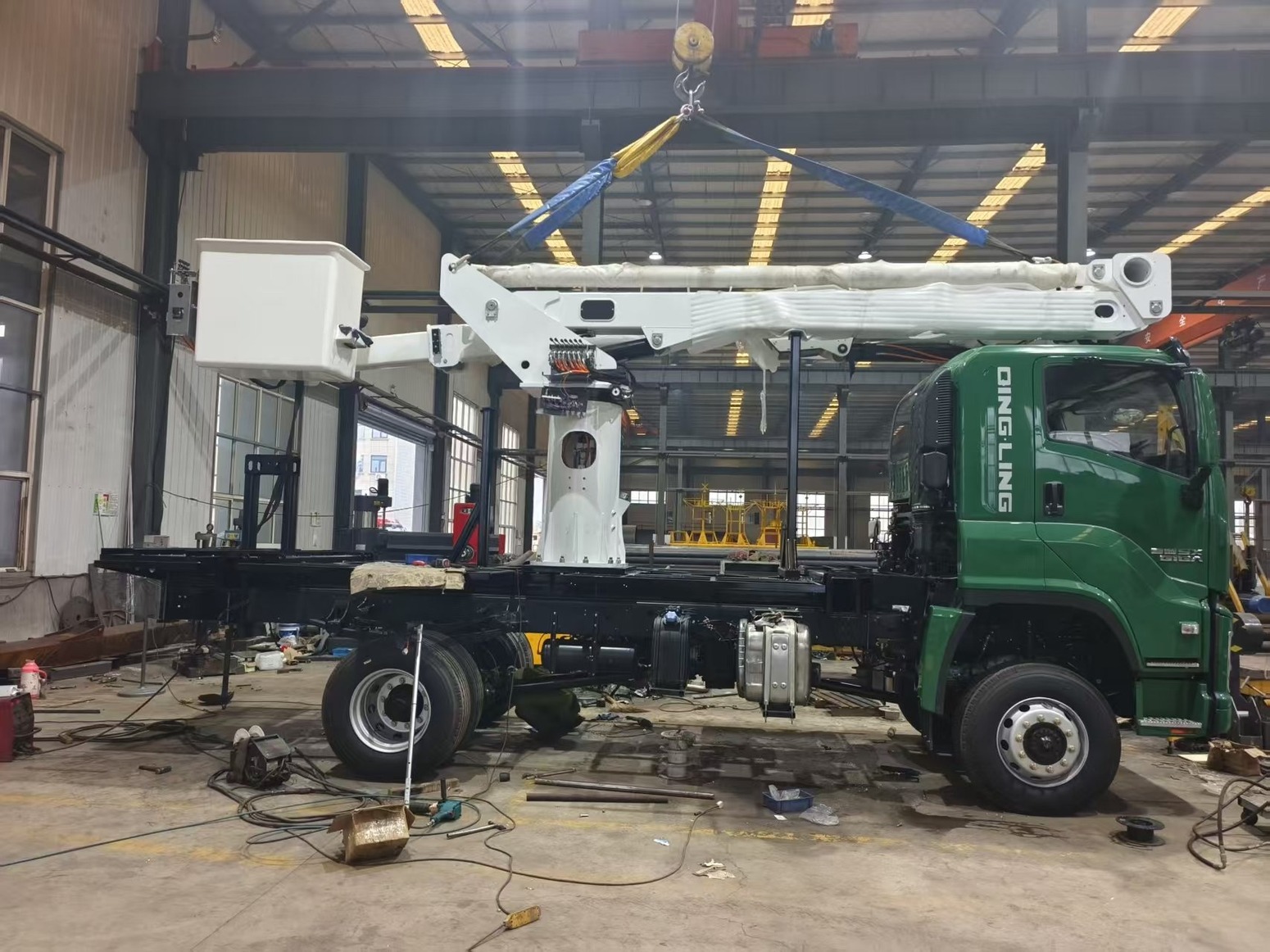

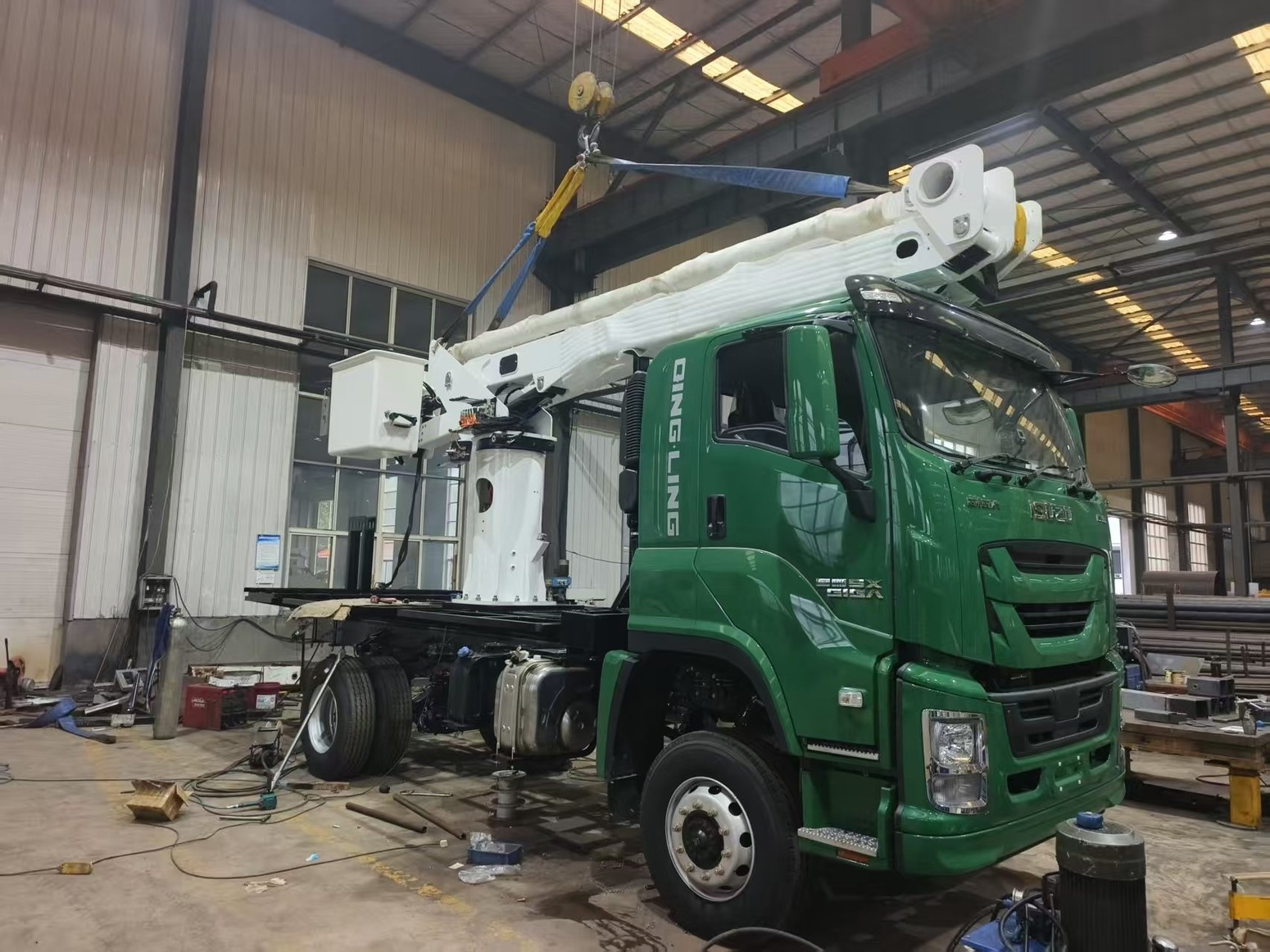

Assemble the completed insulating arm to precisely fit onto the ISUZU 4*2 chassis.

Environmental usage requirements

1. Usage location: Outdoor

2. Altitude (m) (not exceeding): ≤ 2000 m

3. Environmental temperature (℃)

Maximum temperature ℃: +40

Minimum temperature ℃: -25

Maximum daily temperature difference ℃: ±20

4. Required range of relative humidity (%)

Average daily relative humidity %: ≤ 95

Average monthly relative humidity %: ≤ 90

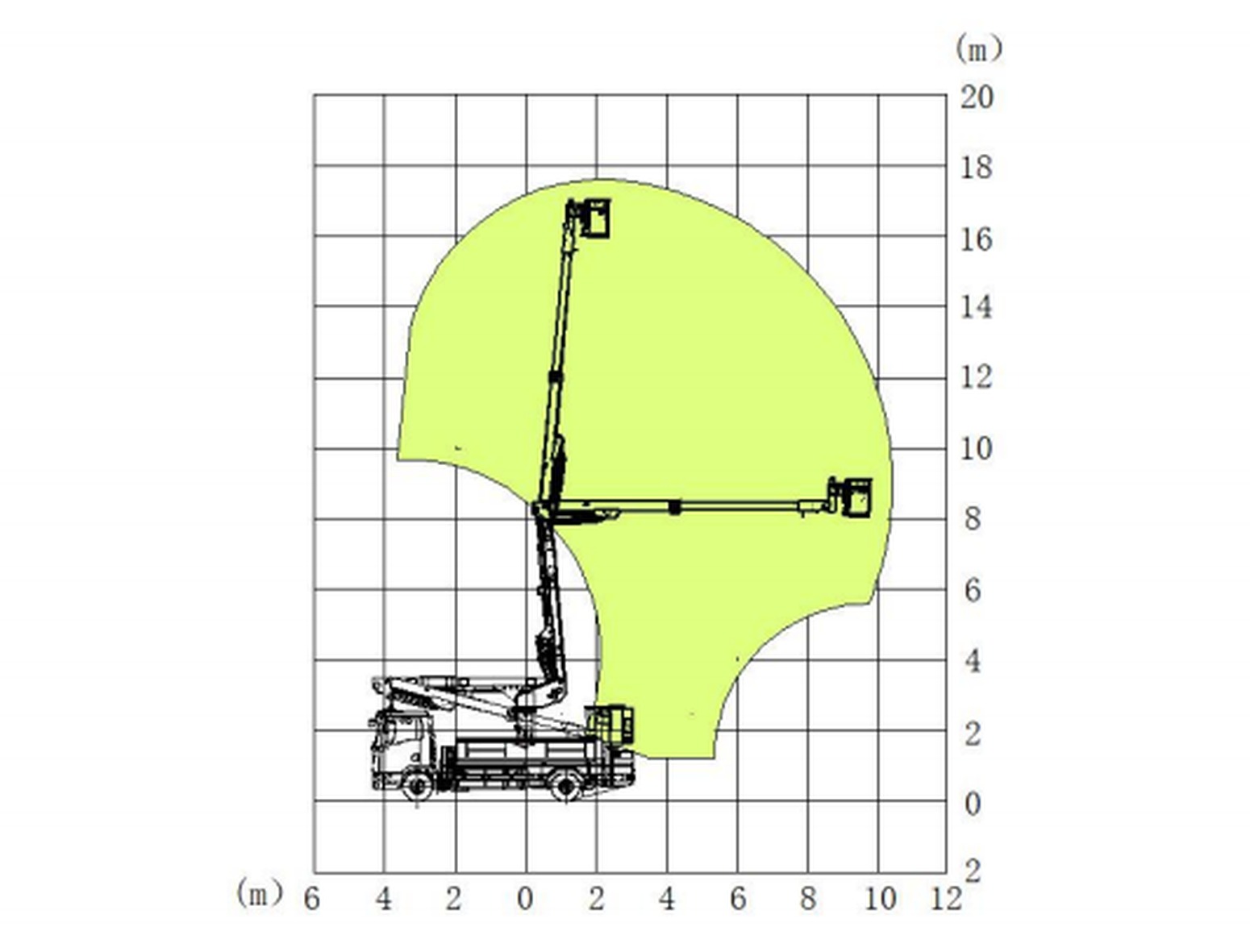

Operation amplitude diagram

Main technical parameters

1. Vehicle length × width × height (mm): 7410 × 22350 × 3525

2. Total mass (kg): 7500

3. Rated load of working platform (kg): 220

4 Maximum working height (m): 17.5

5 Maximum working span (m): 10.4

6 Working span at maximum working height of the work bucket (m): 3

7 Rotation angle of the work bucket (°): ±90

8 Rotation angle of the turntable (°): 360

9 Voltage level for use (kv): 69

10 Length of the upper insulating arm (m): 2.68

11 Length of the lower insulating arm (m): 0.3

12 Working bucket (length x width x height) (mm): 1070 x 610 x 1100

13 Boom type: Hybrid boom: (foldable + telescopic)

14 Rotation device: Worm gear type rotation reducer

Main functional requirements

(1) Insulated bucket aerial work vehicle: It consists of the vehicle chassis, control system, insulation device, safety system, etc.

(2) Structure of the insulated bucket arm vehicle: 2 telescopic arms + 1 folding arm.

(3) Control system: High-integration 3D control system.

(4) Insulation device: Composed of the main insulation arm, insulated working bucket, insulation medium, etc.

(5) Voltage withstand level: High voltage withstand level, capable of achieving 69KV live-line operation, with excellent insulation performance: Two-level insulation for the upper and lower arms.

(6) Remote control: Includes remote start/stop, emergency stop, power emergency power source safety device.

(7) Hydraulic components: Global and Chinese renowned brands.

Control system:

The control system consists of hydraulic, electrical and operation systems.

Hydraulic system / Electrical System:

The lower operating system / Work basket :

Has the function of controlling the up-and-down movement, extension and rotation of the working arm.

Insulation device:

This will be elaborated in the quotation.

Customer acceptance inspection

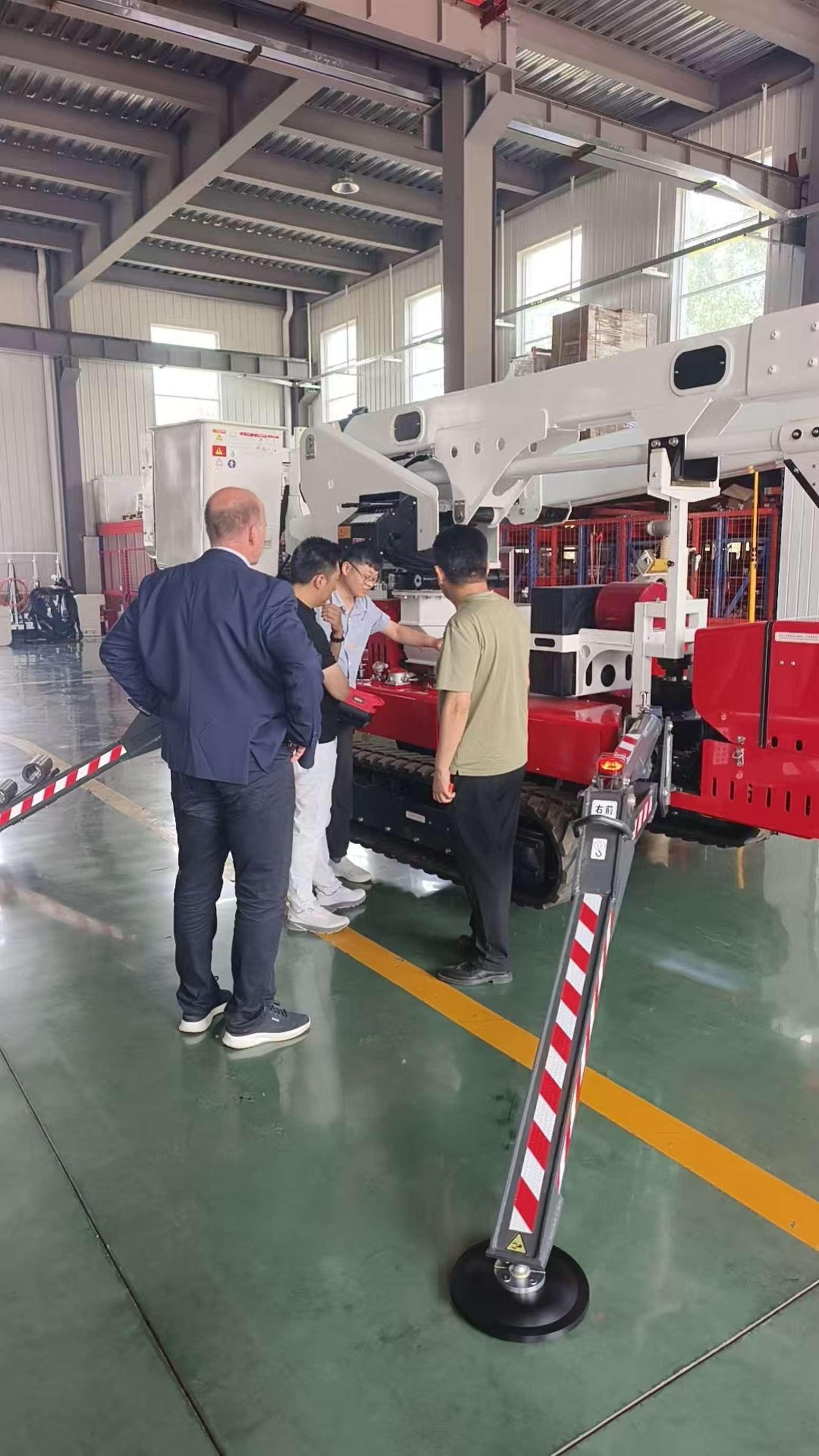

Conduct on-site tests for the actual performance of the 69KV insulating arm aerial work vehicle with the customer

Personalized customization

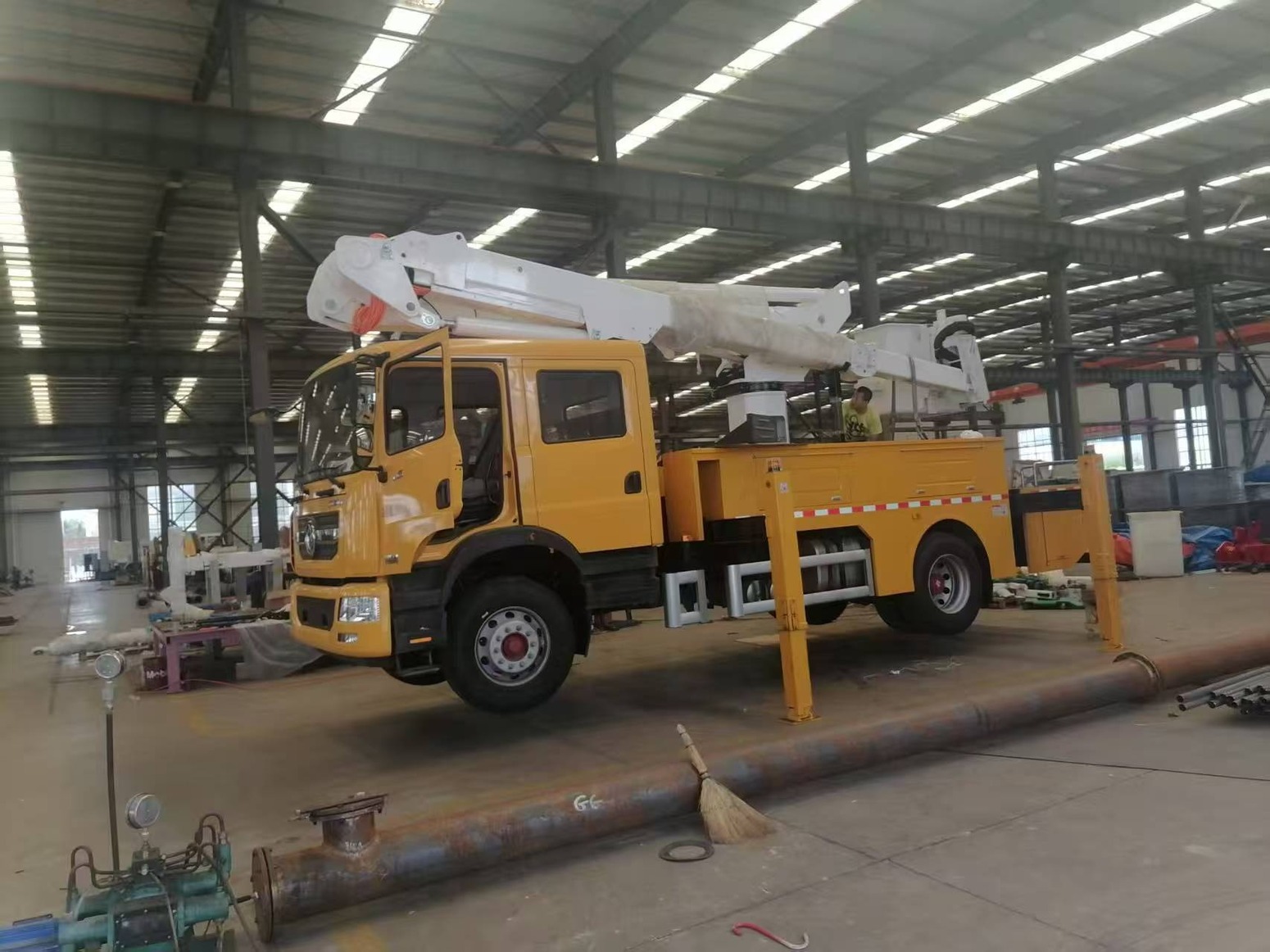

The 20-meter 69KV insulated boom aerial work truck we customized for other customers

We have also customized 66KV insulating boom platforms.

If you have workers and the workshop has assembly capabilities, we can also provide you with insulated arm mounting, thereby reducing your transportation costs.
