| Skip loader 8T (The quotation does not include the garbage bin.) | |
| Type | telescopic type |
| · Adaptation box volume | 8-12m³ |
| · Rated lifting weight | 8Tons |
| · Working pressure (MPa) | 24Mpa |
| · Hydraulic system flow rate (L/min) | 80 |
| · Unloading method (rear flip / self-unloading) | Tip-back |
| · Operating mode (manual / electric control / remote control) | manual |
| · Shell material (e.g. Q345 steel) | Q345/Q235/T70 |
| · Anti-corrosion process (anti-rust paint) | Anti-rust paint |
| Connection method with the chassis: | U-shaped bolt |
| Hydraulic cylinder and seals: | Well-known Chinese brand |
| Oil pump: | 60 liters / minuteWorking pressure: 25 Mpa |
| Retract force of the cylinder;Extension force of the cylinder; | 20T;28T; |
| Hydraulic oil tank | 100L |
| Loading:Legs extend:Legs retract: | 60 S ;12 S;10 S |
| Hydraulic outriggers | 2 |
Our advantages
Provide different tonnage for the skip loader: 3 tons / 5 tons / 8 tons / 12 tons / 18 tons
Provide different brands for the skip loader: SINOTRUK /SHACMAN/ ISUZU/JAC/FOTON/FAW
Additionally, if you are a factory, we can produce the upper part of the skip loader for you.

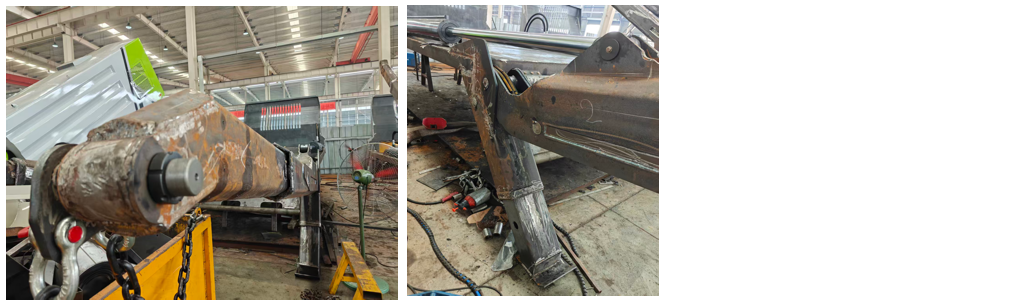

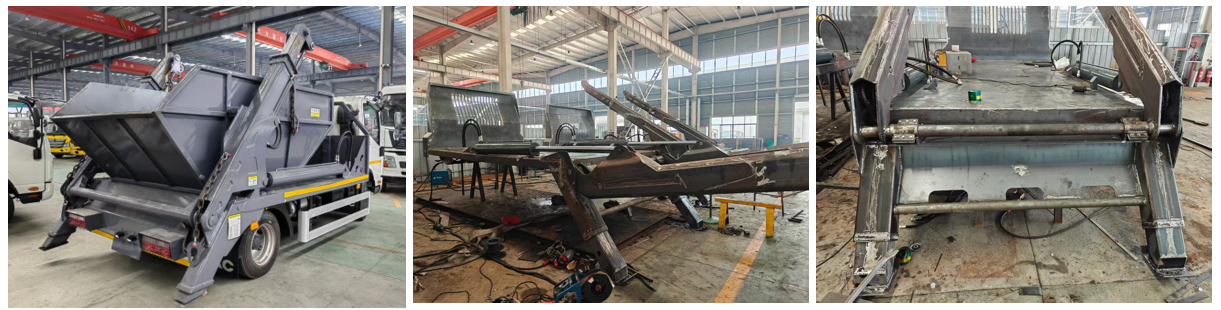

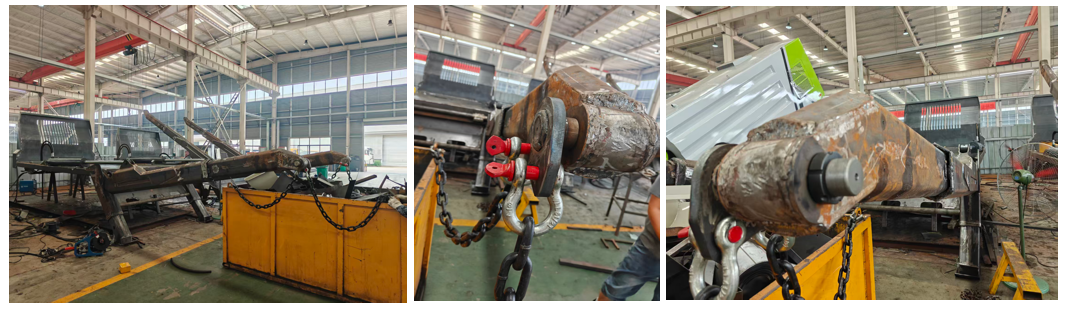

Production details
