Dynamic performance
The Isuzu sewage suction truck chassis is equipped with an Isuzu 6HK1-TCG60 engine, which complies with the National VI B emission standards. It features a powerful output of 300 horsepower and a torque of 1,000 N.m, ensuring the vehicle's stability and reliability in complex road conditions.
Meanwhile, its 7.79L displacement also ensures the fuel economy of the vehicle during long-distance transportation.
The engine is matched with the FAST 9JS119TA transmission. This transmission features a 9-speed design with direct and climbing gears, comes with a synchronizer, and is manually operated, providing a flexible shifting experience based on different road conditions and driving needs.
Cab configuration
The cab of the Isuzu Juka 5X is another highlight of this refrigerated truck.
The flat-head one-and-a-half-row design can accommodate three people, providing a spacious and comfortable working environment for the driver and co-driver. The cab is equipped with an air-suspended cab and air-suspended seats, effectively reducing the fatigue caused by long driving hours.
The configurations such as heating and cooling air conditioning, hydraulic power steering, clutch and brake assist also enhance the comfort and safety of driving.
High-tech configurations such as cruise control, multi-functional LCD instrument panel and electrically heated rearview mirrors make the driving experience more convenient and intelligent.
Chassis system
The axle adopts a front disc and rear drum brake design, with a rear axle speed ratio of 4.555. Such a configuration can ensure the stability and safety of the vehicle under high-speed driving and heavy load conditions.
Meanwhile, the 6×4 drive mode and the design of a central differential lock on the middle and rear axles further enhance the vehicle's off-road capability and passability.
Safety performance
In terms of safety performance, the exported Qingling Isuzu Juka (rear double-axle) refrigerated truck also performs outstandingly.
The braking system configuration such as air cut-off brake, ABS and exhaust brake ensures the braking effect and safety of the vehicle in emergency situations. Furthermore,
The 400-liter aluminum alloy fuel tank and 295/80R22.5 18PR tires further enhance the vehicle's safety and reliability.

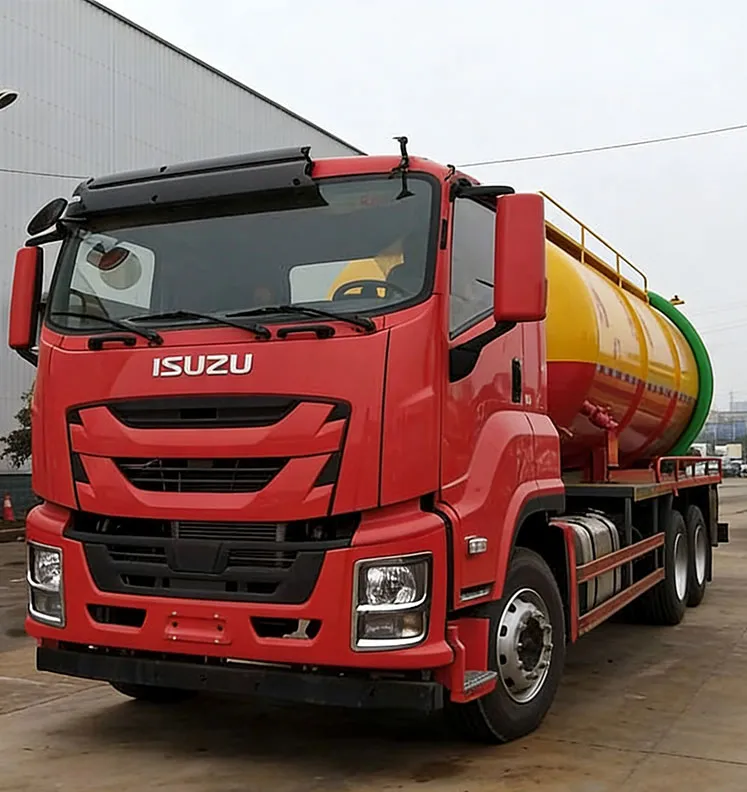

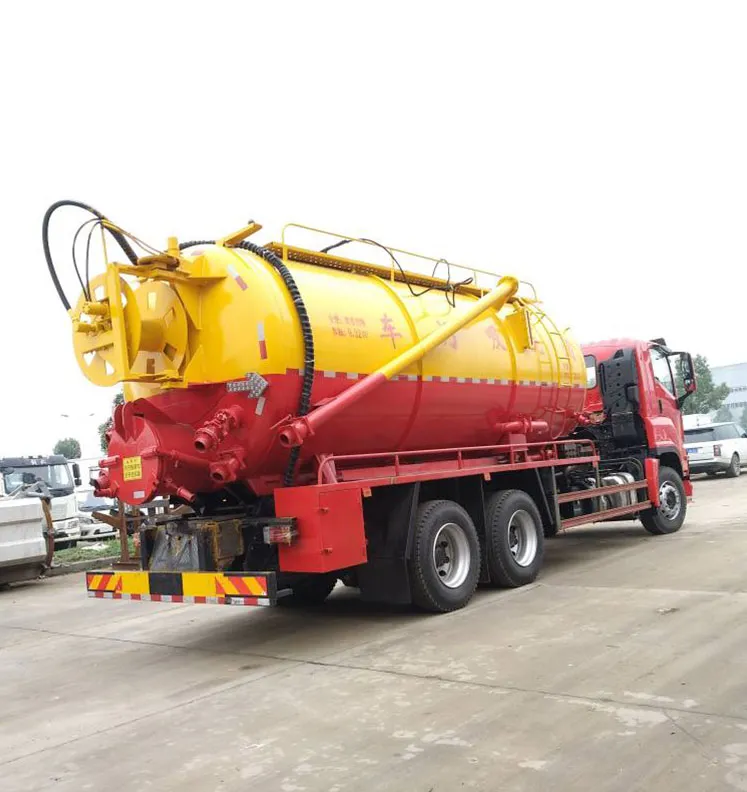

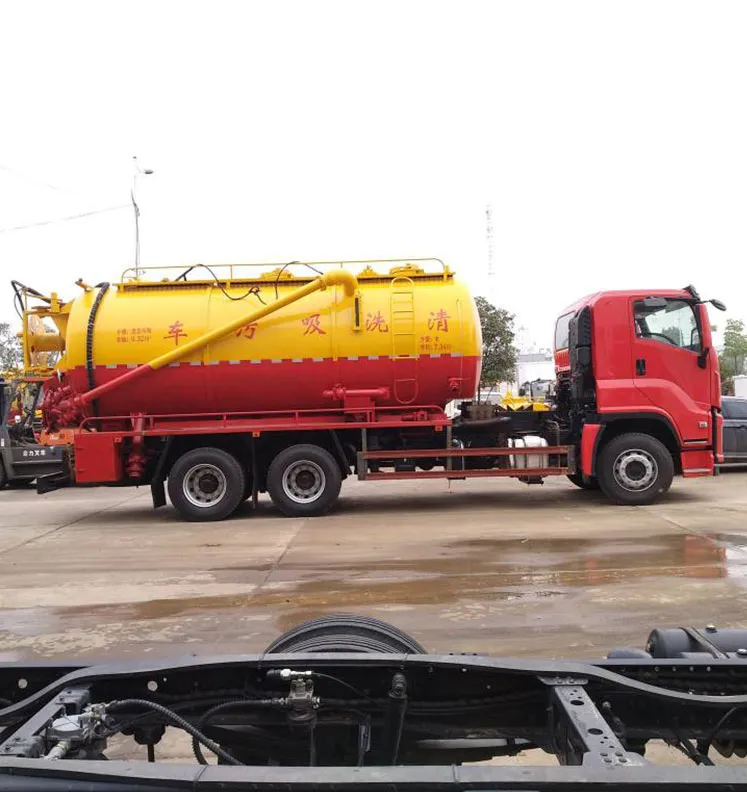

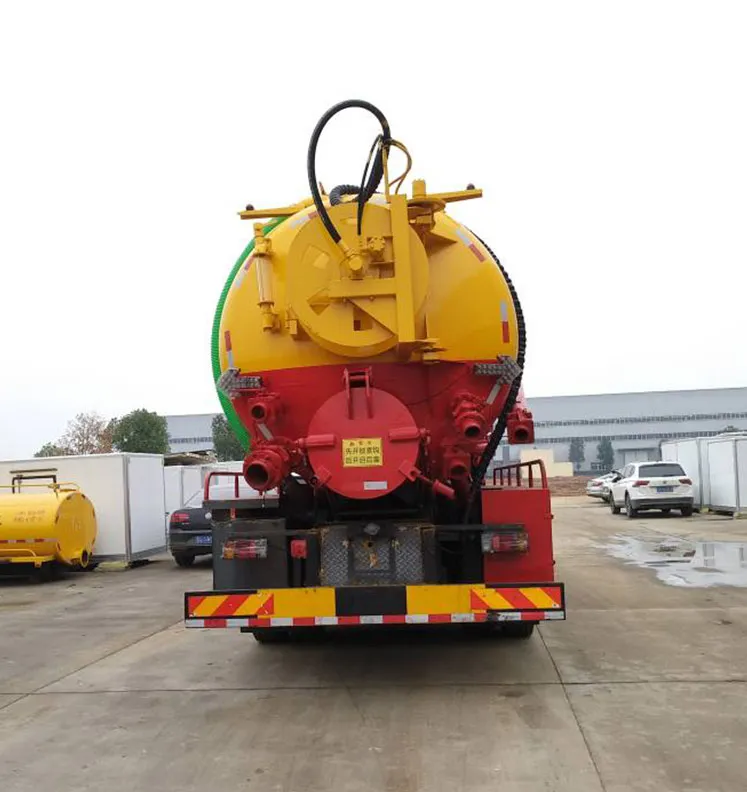

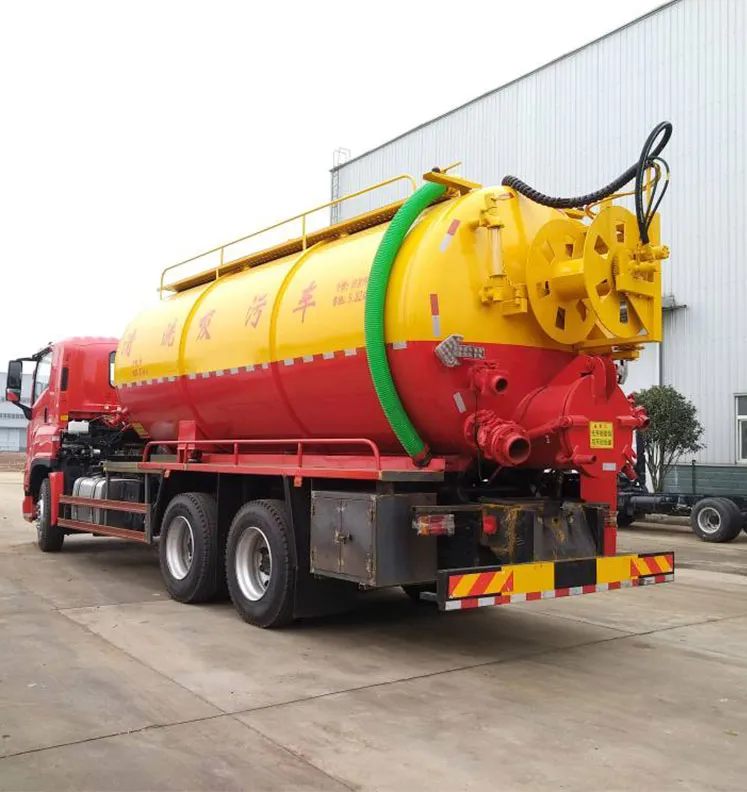

| 15000L sewage suction tanker truck | ||
| Truck Cabin | One and half row Seat, with airbag seat, tiltable, with air conditioner, 3 passenger. | |
| condition | Brand new | |
| Overall dimensions | 10800*2550*3700 mm | |
| G.V.W | 28000 kg | |
| Drive type | 6x4 | |
| Wheelbase | 4600+1370 mm | |
| Number of axles | 3 | |
| Tire ( No. & specification) | 295\82R22.5 | |
| Max speed (Km/h) | ≥ 90 km/h | |
| Brake system | Pneumatic braking | |
| Steering | Power steering | |
| Transmission | HW13710, Mechanical 10+2 | |
| Engine | Engine model | 6UZ1-TCG61 |
| Type of fuel | diesel | |
| Power | 247 kw ( 336 hp ). | |
| Exhaust | 9726 ml | |
| Vacuum Tank | Tank capacity | 15000 L, |
| Tank shape | round shape | |
| Tank material | Mild steel / stainless steel / aluminum alloy | |
| Standard equipment | Equipped with vacuum sewage suction pump, rear cover locker hydraulic cylinder, and lift hydraulic cylinder system, oil & air separator, water and air separator, valves, painting, 1, Equipped with special vacuum (rating rotate speed+ 1400r/m, min rotate speed>800 r/m, max suction lift>6 m vacuum > 500 mm Hg, clockwise) 2, Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. 3, time for full suction < 5 min. | |
