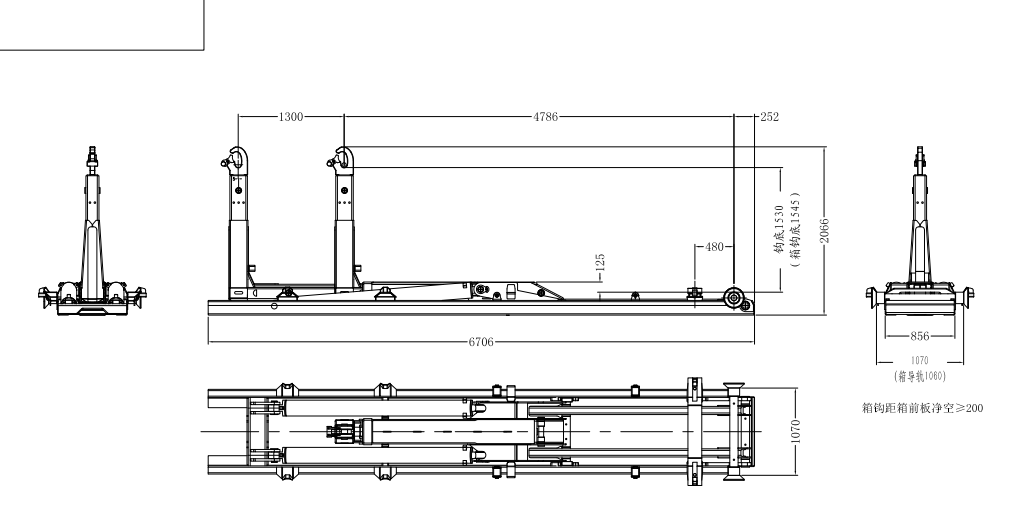

HOOKLIFT main technical parameters
| 1 | Lift capacity | 26Tons |
| 2 | System pressure | 30MPa |
| 3 | Dead weight of equipment | 2800kg |
| 4 | Control voltage | 24V |
| 5 | Extension of hook arm | 1000~1350mm |
| 6 | Oil pump displacement | 84~108ml/r |
| 7 | Hydraulic tank volume | 130L |
| 8 | Box lifting time | 45S |
| 9 | Hook center height | 1570mm |
| 10 | Distance from hook center to rear roller | 6100mm |
| 11 | Width of guide | 1060mm |
| Hydraulic components | ||
| 1 | Hooklift structural component | Q550 high strength steelQ355 low alloy high strength steel |
| 2 | Hydraulic pump | Plunger pump |
| 3 | Multiple directional valve | Chinese famous brand |
| 4 | Two-way hydraulic lock | Italy |
| 5 | Balance valve | Italy |
| 6 | Travel valve | Taiwan |
| 7 | Oil filterfilter | Taiwan |
| 8 | Lift cylinderSlide arm cylinderRear support cylinder | Chinese famous brand |
The 26 Tons Hooklift System is a heavy-duty hydraulic loading solution designed for high-capacity container transport in demanding industrial environments. Built for maximum lifting performance and long-term durability, this system is widely used in large-scale waste management, construction debris handling, mining operations, and industrial logistics.
With its reinforced structural design and optimized hydraulic configuration, the 26-ton hooklift system ensures stable lifting, precise container positioning, and reliable operation under continuous heavy loads.
This 26 tons hooklift system adopts high-strength alloy steel for the main frame and hook arm, providing exceptional resistance to deformation and fatigue. Key load-bearing components are reinforced to withstand repeated high-stress cycles, ensuring consistent performance in long-term operations.
The extended hook arm and optimized lifting geometry allow the system to handle oversized and heavy containers with improved balance and safety, even on uneven ground.
Equipped with a high-capacity hydraulic system, the 26 tons hooklift delivers smooth and powerful lifting motion throughout the entire loading and unloading process.
Hydraulic advantages include:
High-pressure cylinders designed for heavy container lifting
Stable oil flow control for precise operation
Reduced vibration and shock during container engagement
Reliable performance under full-load conditions
The hydraulic system is engineered to minimize energy loss, improving overall operational efficiency.
The 26 Tons Hooklift System supports a wide range of container types, making it ideal for multi-purpose fleet operations.
Compatible containers include:
Heavy-duty roll-off containers
Industrial waste boxes
Scrap metal containers
Flatbed platforms
Sealed containers for bulk material transport
This flexibility allows operators to switch between different tasks without changing vehicles.

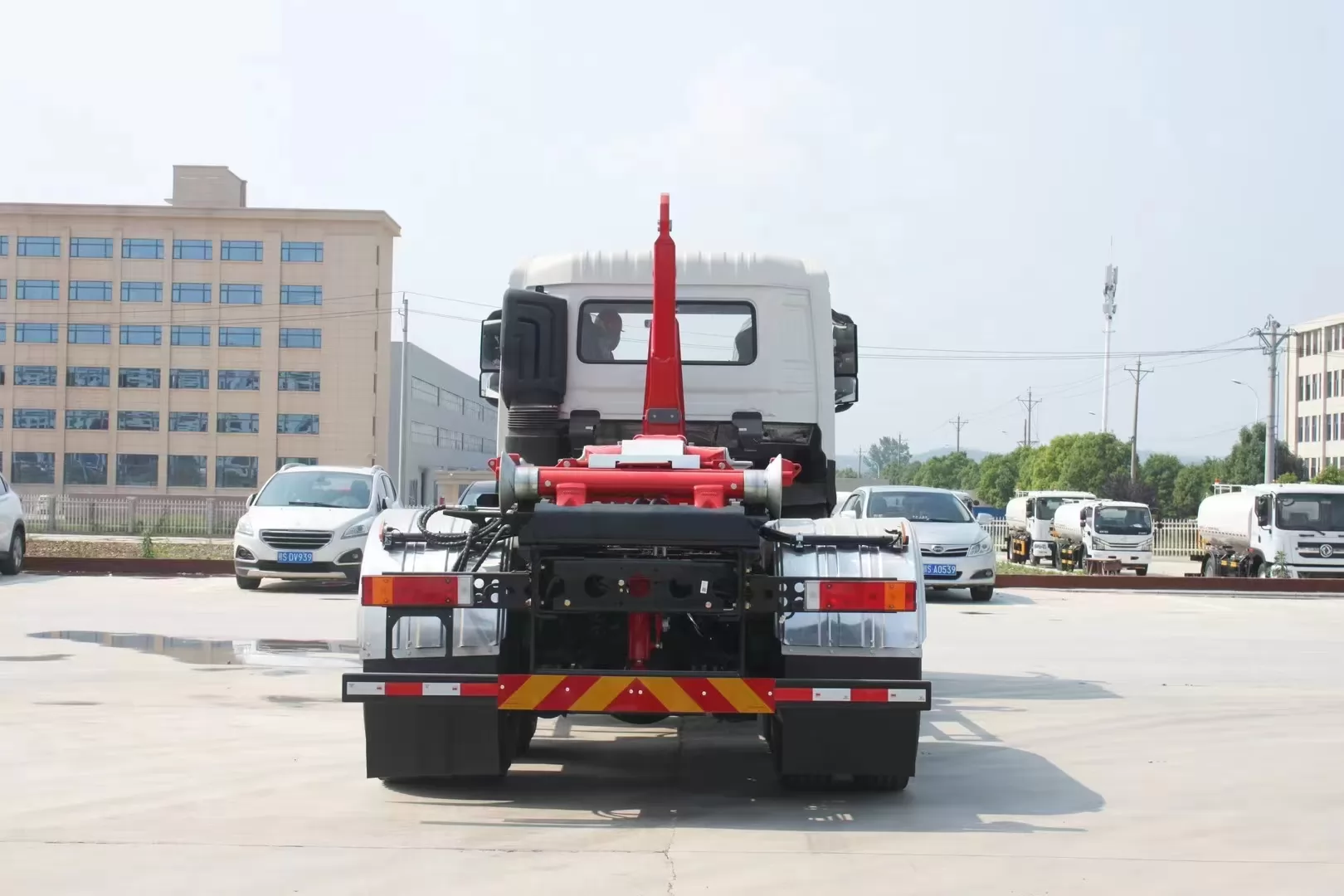

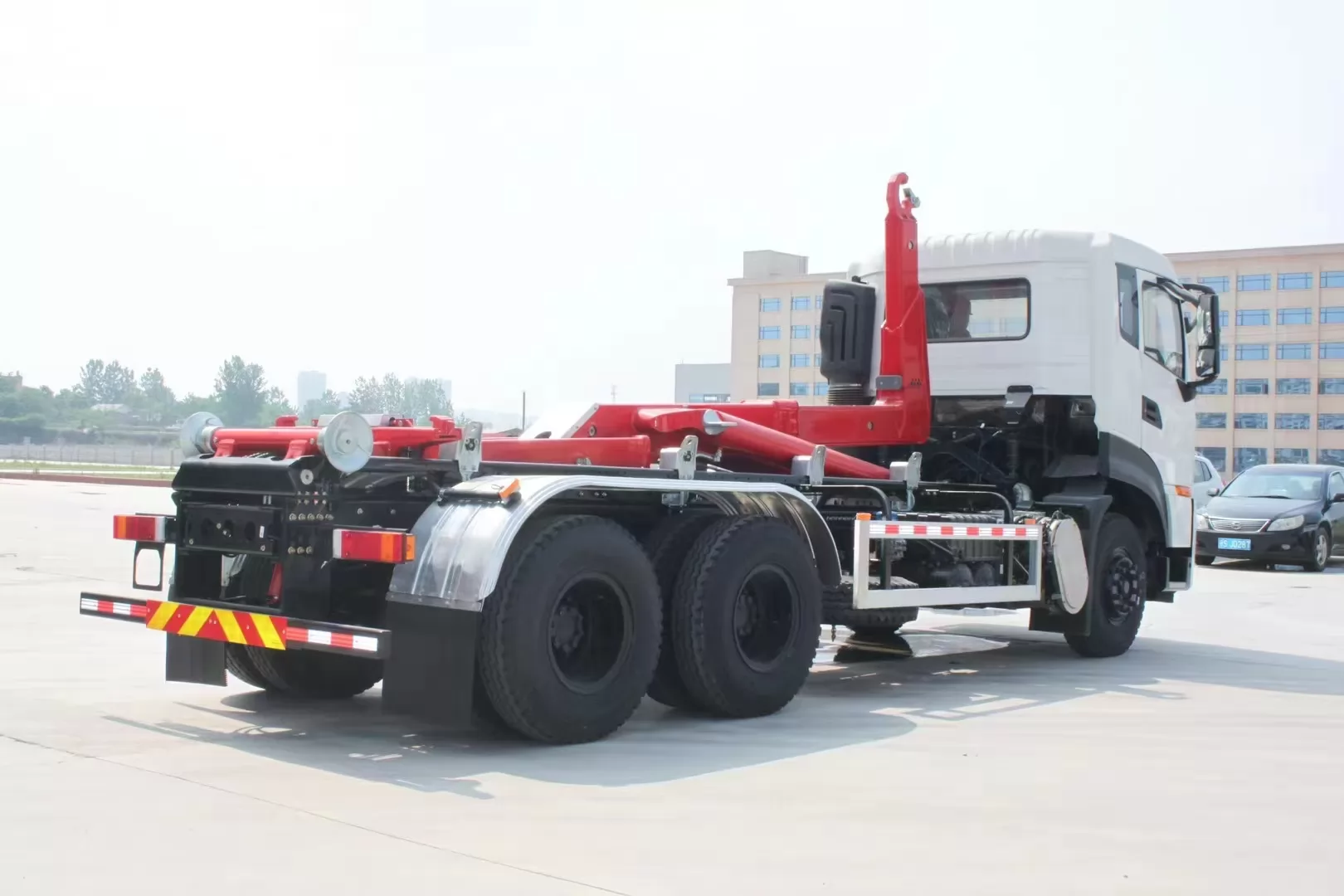

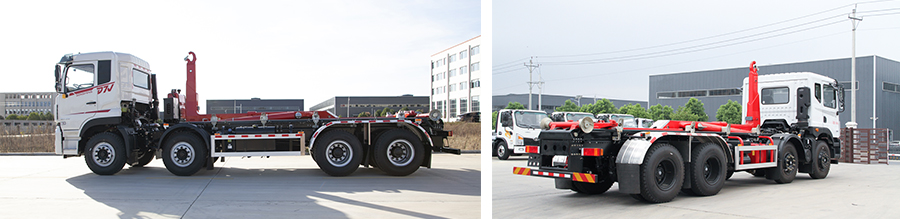

Designed for heavy truck configurations, the 26 tons hooklift system is commonly mounted on:
8×4 truck chassis
Heavy-duty 6×4 chassis (depending on regulations)
The system integrates seamlessly with major truck brands and can be customized according to wheelbase, axle load, and local transport regulations.
Safety is a critical factor in heavy lifting operations. The 26 tons hooklift system incorporates multiple protective features to ensure stable and controlled operation.
Safety features include:
Mechanical locking system to secure containers during transport
Hydraulic overload protection
Controlled lifting speed for safer container engagement
Stable center-of-gravity design to reduce tipping risk
These features help protect both operators and equipment in demanding working environments.
The 26 Tons Hooklift System is widely used in:
Large-scale municipal waste transfer stations
Construction and demolition waste transport
Mining and quarry material handling
Steel mills and heavy manufacturing plants
Industrial recycling and scrap logistics
Its high load capacity makes it the preferred solution for heavy and bulky materials.
Compared with lower-capacity hooklift systems, the 26-ton model offers:
Higher payload efficiency per trip
Reduced number of transport cycles
Improved productivity in large-volume operations
Lower long-term operating cost per ton
These advantages make it especially suitable for high-frequency, heavy-duty usage.
To meet different operational needs, the 26 tons hooklift system can be customized in:
Hook height and arm length
Hydraulic configuration
Container locking mechanism
Control system layout
Customization ensures optimal compatibility with both truck chassis and container standards.
The 26 Tons Hooklift System combines strength, reliability, and flexibility, making it a dependable solution for heavy-duty container handling. Whether for waste management, construction, or industrial logistics, it delivers consistent performance where maximum lifting capacity is required.

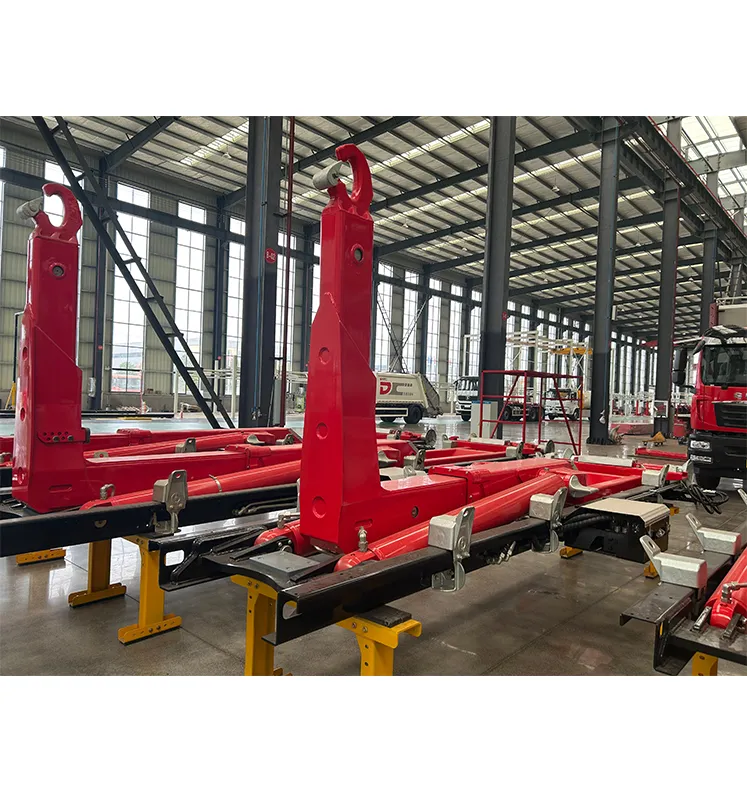

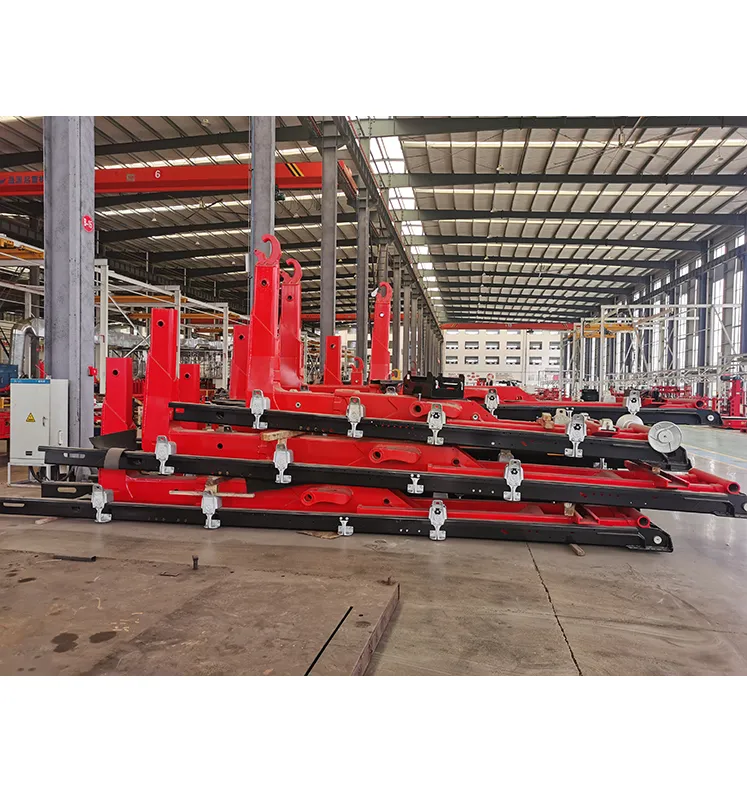

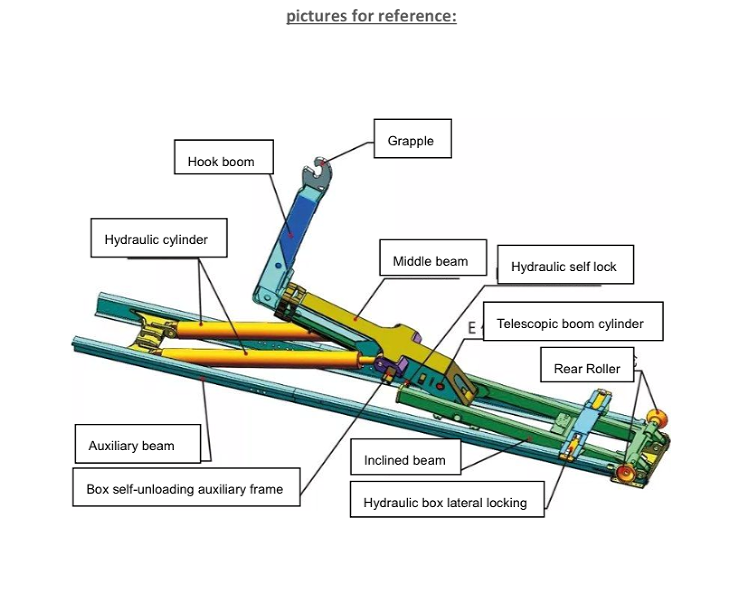

Hooklift structure
A hook arm
B Grab hook
C middle beam
D Hydraulic dump lock
E Telescopic boom cylinder
F hydraulic housing lateral lock
G Rear roller wheel
H tilt arm
I beam
J Dumpster dump auxiliary bracket
K master cylinder
Hooklift ydraulic system
It is composed of hydraulic gear pump, multi-way valve, hydraulic oil storage tank of oil cylinder, etc., and provides hydraulic dynamic force for the pulling arm mechanism through the system.
Hooklift control system
Through the multi-way valve handle, electronic control unit, controller to control the corresponding hydraulic actuator work, the garbage truck operation required action requirements.
Hooklift technique features:
1 Advanced structure and hydraulic system design.
2 All the operations can be operated at a distance (30 meters range), and the operation is simple and convenient.
3. Anti-corrosion treatment of junction component filling: spray coating of steel structure with high quality paint; Metal parts (axial connections parts, hard oil pipes, flexible pipe fittings, bolt joints, etc.) are treated with anti-corrosion and zinc-plated.
4 In the parts of the friction set between the drawarm hook and the box body, integral cast parts are used in many places. Castings have good mechanical properties and excellent rubbing and smoothing properties
Secure
1) The total pressure of the system and each single valve block are equipped with overload protection.
2) Lift cylinder, slide cylinder, rear box lock cylinder and rear stability mounting are equipped with load holding valves.
Liquid pressure interlocking is arranged between the hook arm sliding, box body self-unloading, loading and unloading box body and rear box locking, etc.
To avoid misoperation.
Hook
High strength design, the whole system. The curved line of the contact surface fits the actual moving track, and the box is hung and unloaded
Simple and reliable; The hook is equipped with organic mechanical gravity safety to ensure safety and reliability
Hydraulic system
The system is composed of hydraulic oil pump, main control valve, balance valve, hydraulic lock, tipping cylinder, sliding cylinder, hydraulic tubing, hydraulic oil tank and so on
Control system
This system is composed of pneumatic control valves, electronic control components, controllers, etc. The air control system installed in the cockpit is equipped with damping devices to ensure safe and reliable operation. By controlling the pneumatic control valve, the corresponding hydraulic actuator is controlled to achieve the required action.
Or choose wireless remote control.
Hydraulic drum back support system
Product raw materials and components

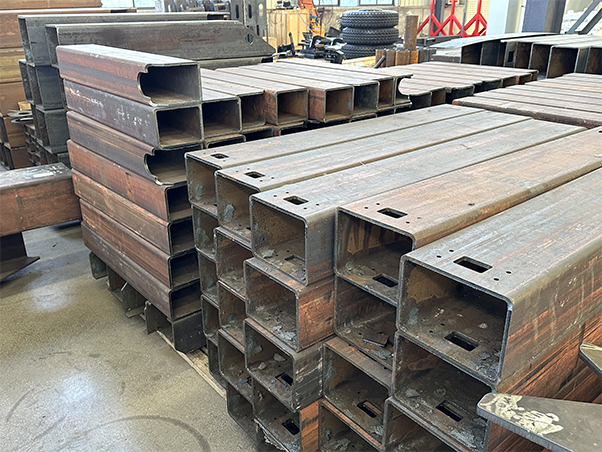

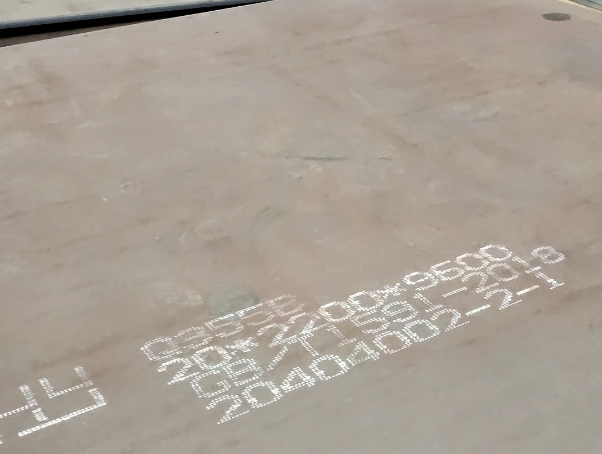

1. Steel plate material: Q355 low alloy high strength steel plate, normalizing rolling low-temperature alloy steel plate.
Physical properties:
Q indicates yield strength > 355Mpa
The tensile strength is 450-630 mpa
Elongation: ≥21%
Impact test: ≥34 joules;
2. Steel pipe material: Q550 low alloy high strength seamless steel pipe
Physical properties:
▷Q yield strength > 550Mpa
Tensile strength: 670 ~ 830Mpa
▷ Elongation: ≥16%
▷ Impact test: ≥40 joules

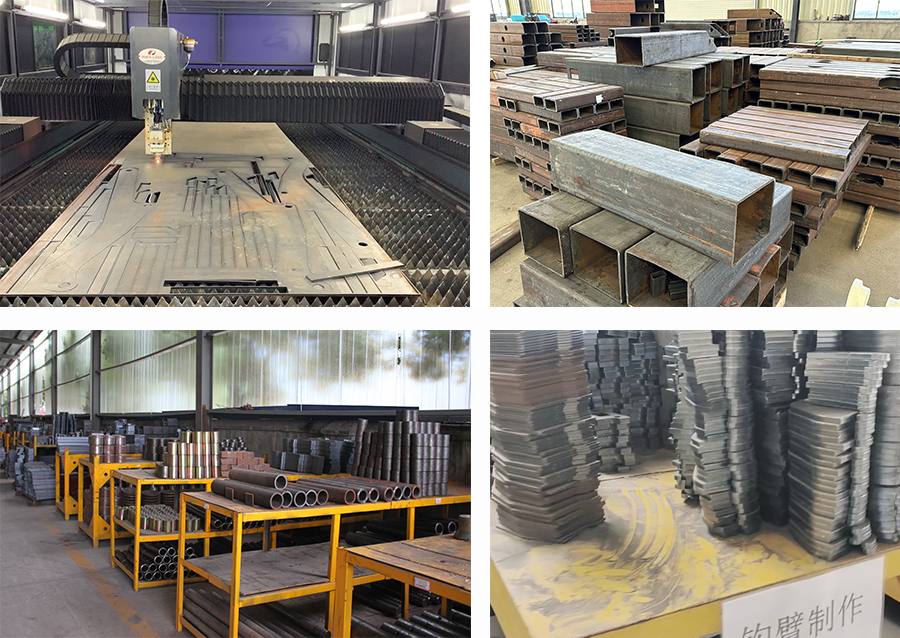

3. High power laser equipment for precise cutting
The heat affected zone is small and not easy to deform;
High precision parts;
The slit is smooth and beautiful, and no post-processing is required

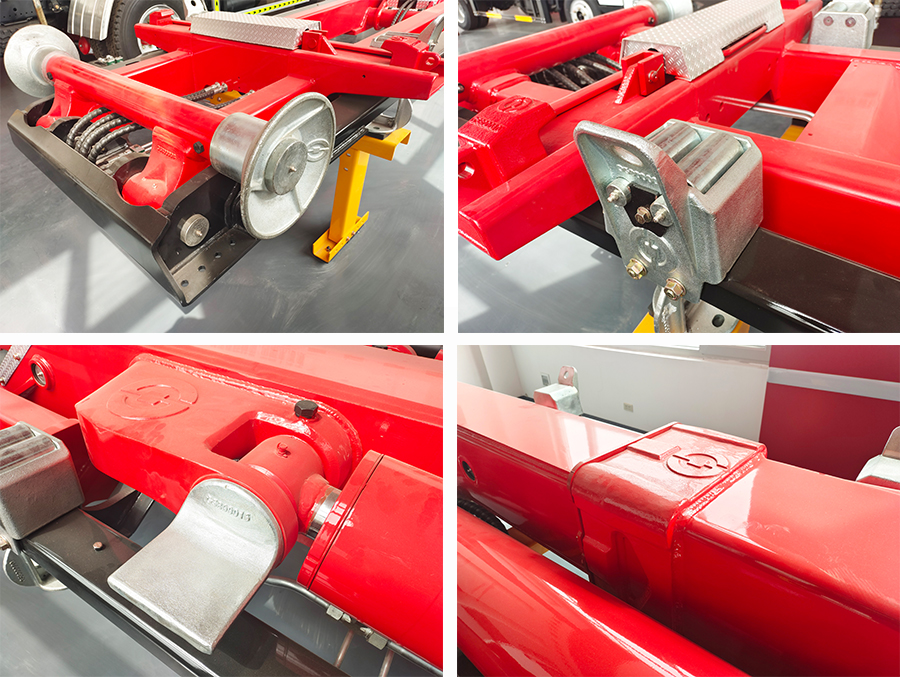

4. Casting part
The components at the key structure are cast with high strength;
Cast parts have good mechanical properties, as well as excellent friction and lubrication properties;

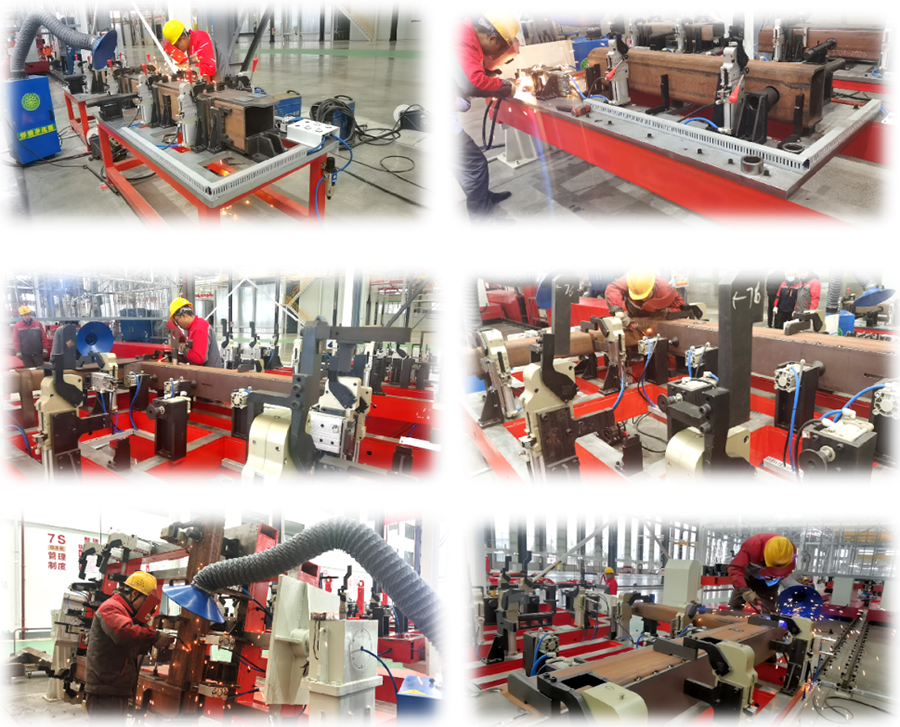

Tooling and welding process
High precision tooling positioning module / Industrial welding robot assembly line;
L arm spot welding process;
Robot automatic welding;
Spot welding of longitudinal beam accessories;
Longitudinal beam robot automatic welding;
Secondary arm spot welding;

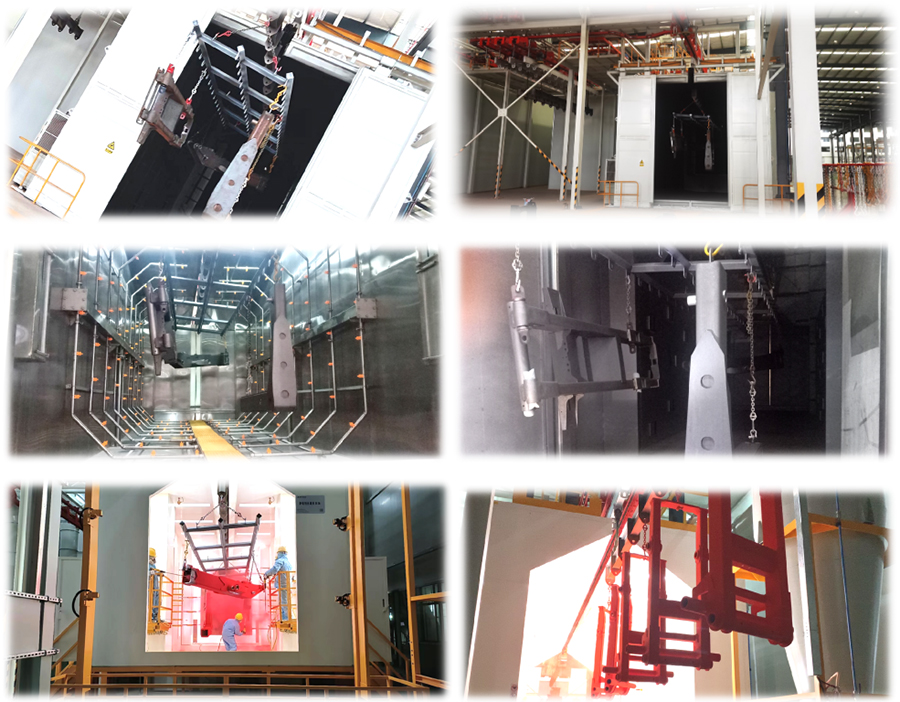

Electrostatic powder coating process
The coating powder is inorganic solvent-based coating; More environmentally friendly than the traditional paint process, better coating quality and durability, high degree of automation.
Powder coating performance: film thickness 75-300μm; The coating has beautiful appearance, high wear resistance, impact resistance, high-density adhesion, toughness, and corrosion resistance

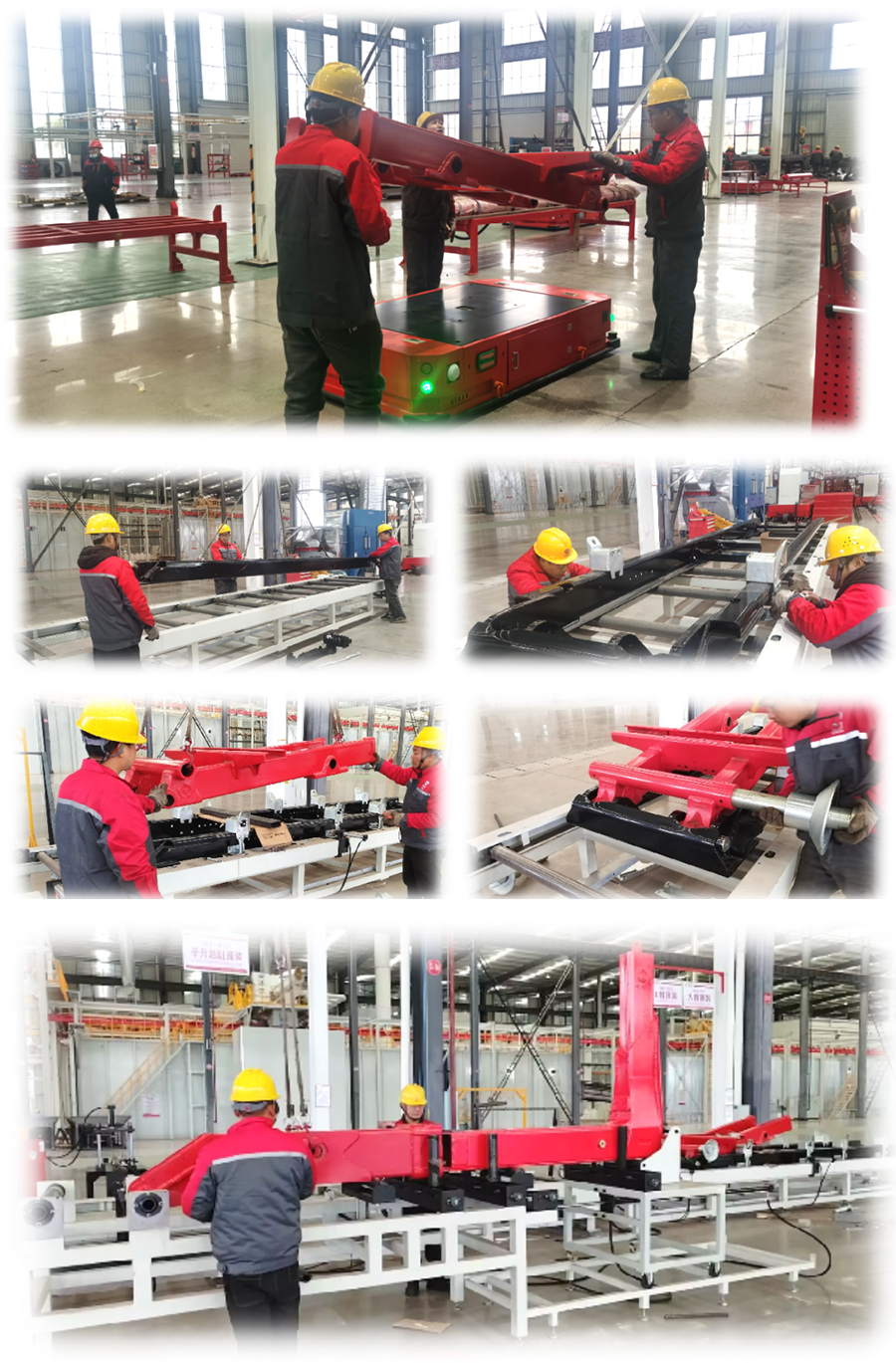

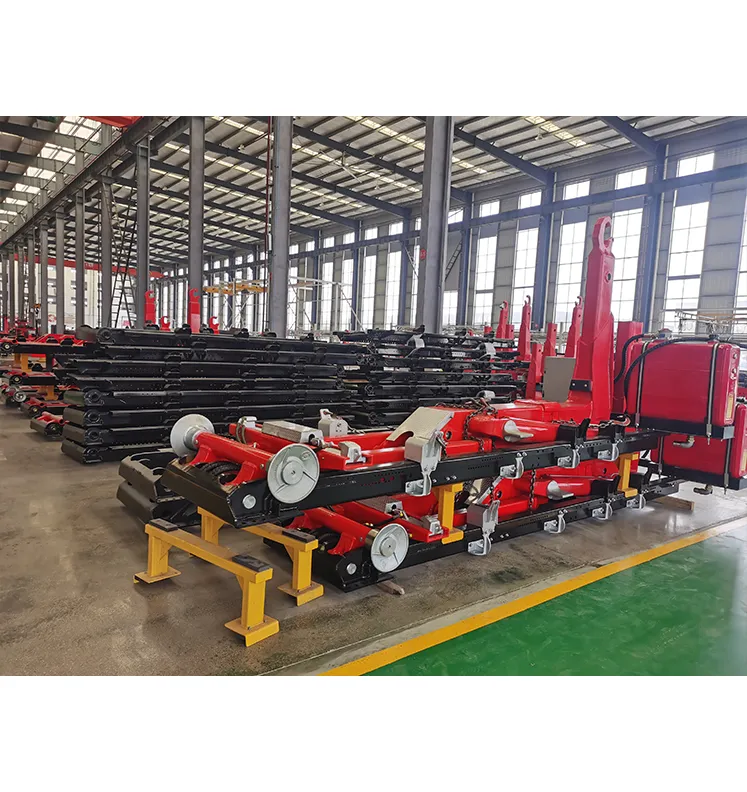

Assembly
The assembly platform is installed on the assembly line, which is fully modular assembly without any welding position;
Each assembly is completed through the body action detection, hydraulic system pressure detection;
Overall effect display
