HOOKLIFT main technical parameters
| 1 | Lift capacity | 16Tons |
| 2 | System pressure | 25MPa |
| 3 | Dead weight of equipment | 2200kg |
| 4 | Control voltage | 24V |
| 5 | Extension of hook arm | 700-800mm |
| 6 | Oil pump displacement | 50ml/r |
| 7 | Hydraulic tank volume | 50L |
| 8 | Box lifting time | 45S |
| 9 | Hook center height | 1530mm |
| 10 | Distance from hook center to rear roller | 4677mm |
| 11 | Width of guide | 1060mm |
| Hydraulic components | ||
| 1 | Hooklift structural component | Q550 high strength steelQ355 low alloy high strength steel |
| 2 | Hydraulic pump | Plunger pump |
| 3 | Multiple directional valve | Chinese famous brand |
| 4 | Two-way hydraulic lock | Italy |
| 5 | Balance valve | Italy |
| 6 | Travel valve | Taiwan |
| 7 | Oil filterfilter | Taiwan |
| 8 | Lift cylinderSlide arm cylinderRear support cylinder | Chinese famous brand |
The 16 Tons Hooklift System is a reliable and efficient hydraulic container handling solution designed for medium-duty operations. It provides an excellent balance between lifting capacity, vehicle maneuverability, and operating efficiency, making it a preferred choice for municipal services, construction support, and recycling logistics.
The 16 tons hooklift system is built with high-strength structural steel, ensuring durability while maintaining a compact and lightweight structure. The optimized hook arm geometry allows smooth container engagement and stable lifting, even in confined or uneven working environments.
This design reduces stress on the truck chassis while maintaining consistent lifting performance.
The hydraulic system of the 16 tons hooklift is engineered for smooth operation and precise control, supporting frequent loading and unloading cycles.
Hydraulic performance highlights:
Reliable lifting force for medium-weight containers
Controlled movement during loading and unloading
Reduced vibration and mechanical shock
Consistent performance in continuous daily use
This ensures higher efficiency and lower maintenance requirements.
The 16 Tons Hooklift System supports a variety of container types, enabling multi-functional use with a single vehicle.
Common compatible containers include:
Standard roll-off containers
Municipal waste containers
Construction debris boxes
Recycling containers
Flatbed platforms
This flexibility improves fleet utilization and operational adaptability.
The 16 tons hooklift system is typically mounted on:
4×2 truck chassis
Light 6×2 or 6×4 chassis, depending on local regulations
Its balanced weight distribution makes it suitable for urban and semi-urban transport environments.
To ensure secure operation, the 16 tons hooklift system incorporates multiple safety design elements.
Key safety features include:
Mechanical container locking system
Hydraulic overload protection
Stable lifting speed control
Optimized center-of-gravity layout
These features enhance operational safety during both loading and transportation.
The 16 Tons Hooklift System is widely used in:
Municipal waste collection
Construction and renovation projects
Recycling material transport
Commercial waste handling
Infrastructure maintenance operations
Its versatility makes it suitable for medium-duty, high-frequency operations.
Compared with higher-capacity hooklift systems, the 16 tons model offers:
Lower system and vehicle investment
Improved fuel efficiency
Reduced operating costs
Adequate lifting capacity for most urban applications
This makes it a cost-effective solution for growing fleets.
The 16 tons hooklift system can be customized to match specific operational needs, including:
Hook height adjustment
Arm length configuration
Hydraulic system options
Container locking mechanisms
Customization ensures optimal compatibility with both truck chassis and container standards.
The 16 Tons Hooklift System delivers dependable performance, flexibility, and durability for medium-duty container handling tasks. It is an ideal choice for operators seeking efficiency and reliability without unnecessary system weight or cost.

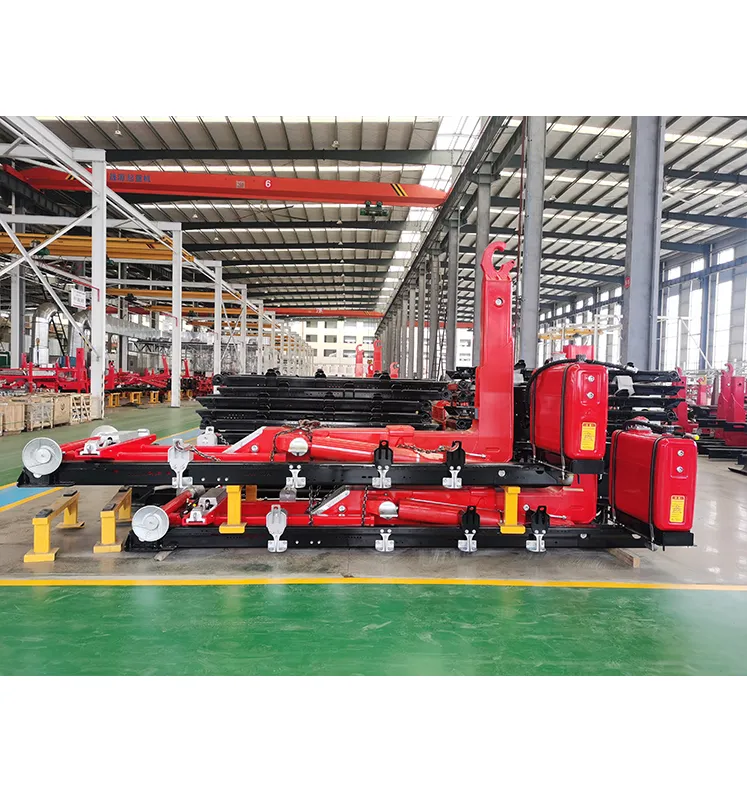

Hooklift structure
A hook arm
B Grab hook
C middle beam
D Hydraulic dump lock
E Telescopic boom cylinder
F hydraulic housing lateral lock
G Rear roller wheel
H tilt arm
I beam
J Dumpster dump auxiliary bracket
K master cylinder
Hooklift ydraulic system
It is composed of hydraulic gear pump, multi-way valve, hydraulic oil storage tank of oil cylinder, etc., and provides hydraulic dynamic force for the pulling arm mechanism through the system.
Hooklift control system
Through the multi-way valve handle, electronic control unit, controller to control the corresponding hydraulic actuator work, the garbage truck operation required action requirements.
Hooklift technique features:
1 Advanced structure and hydraulic system design.
2 All the operations can be operated at a distance (30 meters range), and the operation is simple and convenient.
3. Anti-corrosion treatment of junction component filling: spray coating of steel structure with high quality paint; Metal parts (axial connections parts, hard oil pipes, flexible pipe fittings, bolt joints, etc.) are treated with anti-corrosion and zinc-plated.
4 In the parts of the friction set between the drawarm hook and the box body, integral cast parts are used in many places. Castings have good mechanical properties and excellent rubbing and smoothing properties
Secure
1) The total pressure of the system and each single valve block are equipped with overload protection.
2) Lift cylinder, slide cylinder, rear box lock cylinder and rear stability mounting are equipped with load holding valves.
Liquid pressure interlocking is arranged between the hook arm sliding, box body self-unloading, loading and unloading box body and rear box locking, etc.
To avoid misoperation.
Hook
High strength design, the whole system. The curved line of the contact surface fits the actual moving track, and the box is hung and unloaded
Simple and reliable; The hook is equipped with organic mechanical gravity safety to ensure safety and reliability
Hydraulic system
The system is composed of hydraulic oil pump, main control valve, balance valve, hydraulic lock, tipping cylinder, sliding cylinder, hydraulic tubing, hydraulic oil tank and so on
Control system
This system is composed of pneumatic control valves, electronic control components, controllers, etc. The air control system installed in the cockpit is equipped with damping devices to ensure safe and reliable operation. By controlling the pneumatic control valve, the corresponding hydraulic actuator is controlled to achieve the required action.
Or choose wireless remote control.
Hydraulic drum back support system
Overall effect display
