HOOKLIFT main technical parameters
| 1 | Lift capacity | 12Tons |
| 2 | System pressure | 25MPa |
| 3 | Dead weight of equipment | 2500kg |
| 4 | Control voltage | 24V |
| 5 | Extension of hook arm | 600mm |
| 6 | Oil pump displacement | 40ml/r |
| 7 | Hydraulic tank volume | 400L |
| 8 | Box lifting time | 45S |
| 9 | Hook center height | 1570mm |
| 10 | Distance from hook center to rear roller | 3670mm |
| 11 | Width of guide | 1060mm |
| Hydraulic components | ||
| 1 | Hooklift structural component | Q550 high strength steelQ355 low alloy high strength steel |
| 2 | Hydraulic pump | Plunger pump |
| 3 | Multiple directional valve | Chinese famous brand |
| 4 | Two-way hydraulic lock | Italy |
| 5 | Balance valve | Italy |
| 6 | Travel valve | Taiwan |
| 7 | Oil filterfilter | Taiwan |
| 8 | Lift cylinderSlide arm cylinderRear support cylinder | Chinese famous brand |

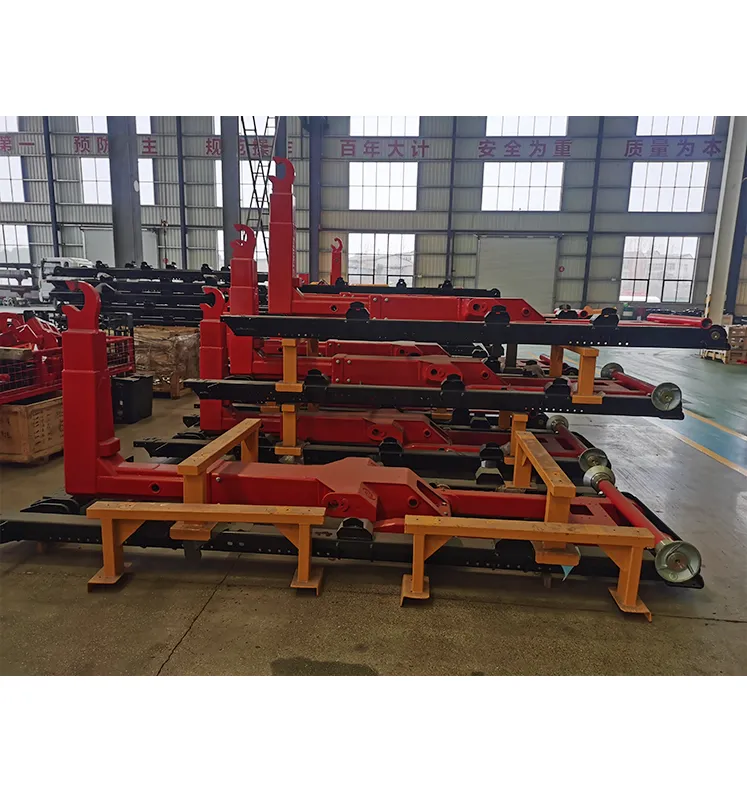

The 12 Tons Hooklift System is a compact and efficient hydraulic container handling solution designed for light-duty applications and urban environments. With its streamlined structure and reliable lifting performance, it is widely used in municipal sanitation, residential waste collection, and small-scale construction projects.
The 12 tons hooklift system is built with high-strength structural steel to ensure durability while maintaining a lightweight profile. Its compact frame and optimized hook arm geometry allow easy operation in narrow streets and restricted workspaces.
This design minimizes stress on the truck chassis and improves overall vehicle maneuverability.
The hydraulic system of the 12 tons hooklift is engineered for stable and precise lifting control, making it suitable for high-frequency daily operations.
Hydraulic performance highlights:
Consistent lifting force for light to medium containers
Smooth loading and unloading motion
Reduced vibration and mechanical wear
Reliable performance with low maintenance demand
This ensures efficient container handling and long service life.
The 12 Tons Hooklift System supports a variety of standard container types, enabling flexible use across multiple applications.
Compatible containers include:
Small roll-off containers
Skip containers
Municipal waste boxes
Recycling bins
Flatbed platforms
This versatility allows operators to maximize vehicle utilization with minimal equipment changes.
The 12 tons hooklift system is typically mounted on:
4×2 light-duty truck chassis
Its balanced weight distribution and compact size make it ideal for city roads and residential areas.
Safety is a key consideration in urban operations. The 12 tons hooklift system integrates essential safety features to ensure stable and controlled operation.
Safety features include:
Mechanical container locking system
Hydraulic overload protection
Controlled lifting speed
Stable center-of-gravity design
These features help protect both operators and equipment during daily use.
The 12 Tons Hooklift System is commonly used in:
Municipal and residential waste collection
Urban sanitation services
Landscaping and garden waste transport
Small construction and renovation projects
Property maintenance operations
Its compact design makes it especially suitable for dense urban environments.
Compared with larger hooklift systems, the 12 tons model offers:
Lower initial investment
Reduced fuel consumption
Lower maintenance costs
Adequate lifting capacity for light-duty tasks
This makes it an ideal entry-level solution for urban service fleets.
The 12 tons hooklift system can be customized to meet specific operational requirements, including:
Hook height adjustment
Arm length configuration
Hydraulic control options
Container locking mechanisms
Customization ensures compatibility with different truck chassis and container standards.
The 12 Tons Hooklift System delivers dependable performance, flexibility, and efficiency for light-duty container handling. It is a practical choice for operators seeking a compact, economical, and reliable hooklift solution for urban operations.
Hooklift structure
A hook arm
B Grab hook
C middle beam
D Hydraulic dump lock
E Telescopic boom cylinder
F hydraulic housing lateral lock
G Rear roller wheel
H tilt arm
I beam
J Dumpster dump auxiliary bracket
K master cylinder
Hooklift ydraulic system
It is composed of hydraulic gear pump, multi-way valve, hydraulic oil storage tank of oil cylinder, etc., and provides hydraulic dynamic force for the pulling arm mechanism through the system.
Hooklift control system
Through the multi-way valve handle, electronic control unit, controller to control the corresponding hydraulic actuator work, the garbage truck operation required action requirements.
Hooklift technique features:
1 Advanced structure and hydraulic system design.
2 All the operations can be operated at a distance (30 meters range), and the operation is simple and convenient.
3. Anti-corrosion treatment of junction component filling: spray coating of steel structure with high quality paint; Metal parts (axial connections parts, hard oil pipes, flexible pipe fittings, bolt joints, etc.) are treated with anti-corrosion and zinc-plated.
4 In the parts of the friction set between the drawarm hook and the box body, integral cast parts are used in many places. Castings have good mechanical properties and excellent rubbing and smoothing properties
Secure
1) The total pressure of the system and each single valve block are equipped with overload protection.
2) Lift cylinder, slide cylinder, rear box lock cylinder and rear stability mounting are equipped with load holding valves.
Liquid pressure interlocking is arranged between the hook arm sliding, box body self-unloading, loading and unloading box body and rear box locking, etc.
To avoid misoperation.
Hook
High strength design, the whole system. The curved line of the contact surface fits the actual moving track, and the box is hung and unloaded
Simple and reliable; The hook is equipped with organic mechanical gravity safety to ensure safety and reliability
Hydraulic system
The system is composed of hydraulic oil pump, main control valve, balance valve, hydraulic lock, tipping cylinder, sliding cylinder, hydraulic tubing, hydraulic oil tank and so on
Control system
This system is composed of pneumatic control valves, electronic control components, controllers, etc. The air control system installed in the cockpit is equipped with damping devices to ensure safe and reliable operation. By controlling the pneumatic control valve, the corresponding hydraulic actuator is controlled to achieve the required action.
Or choose wireless remote control.
Hydraulic drum back support system
Overall effect display
