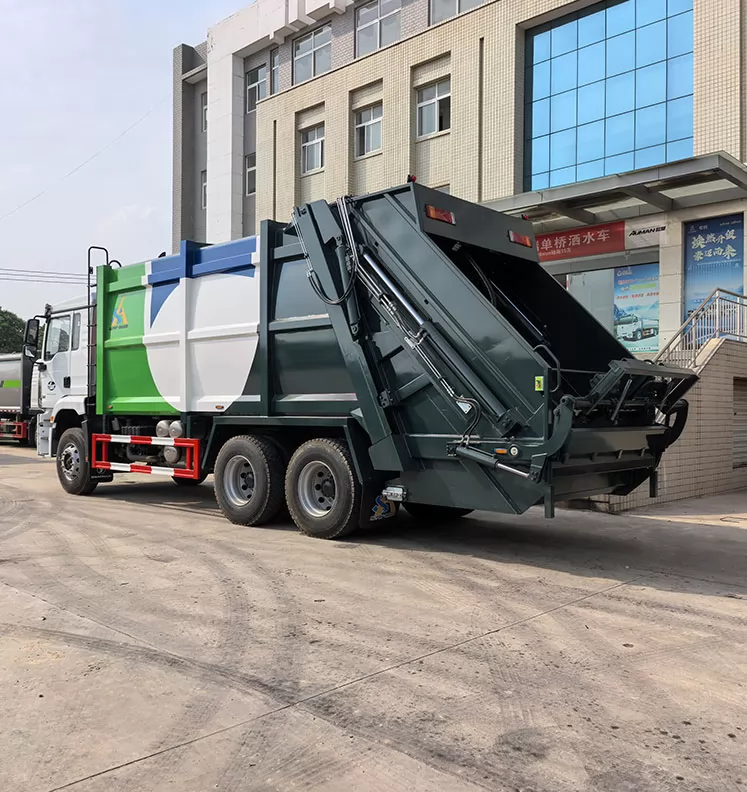

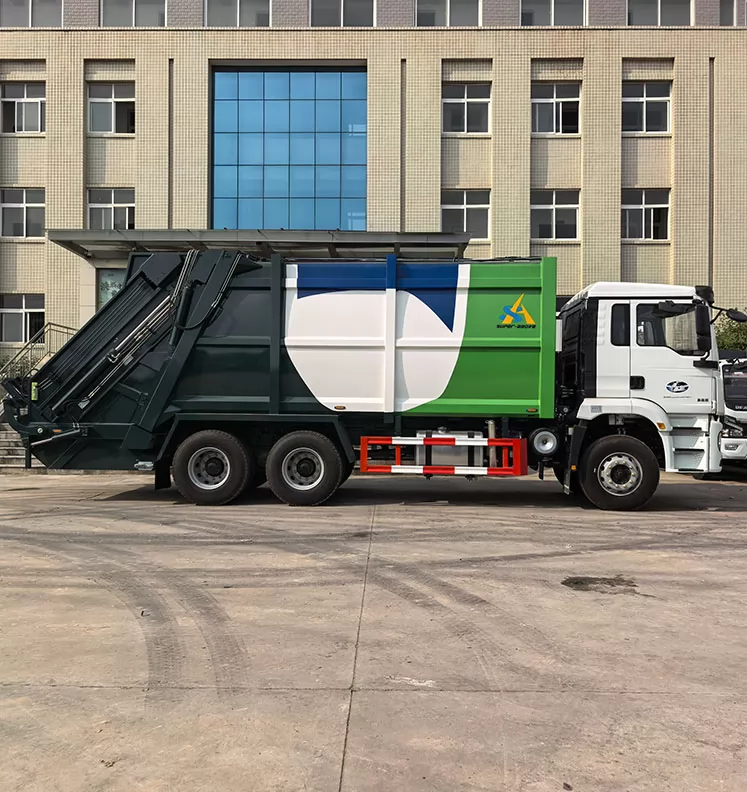

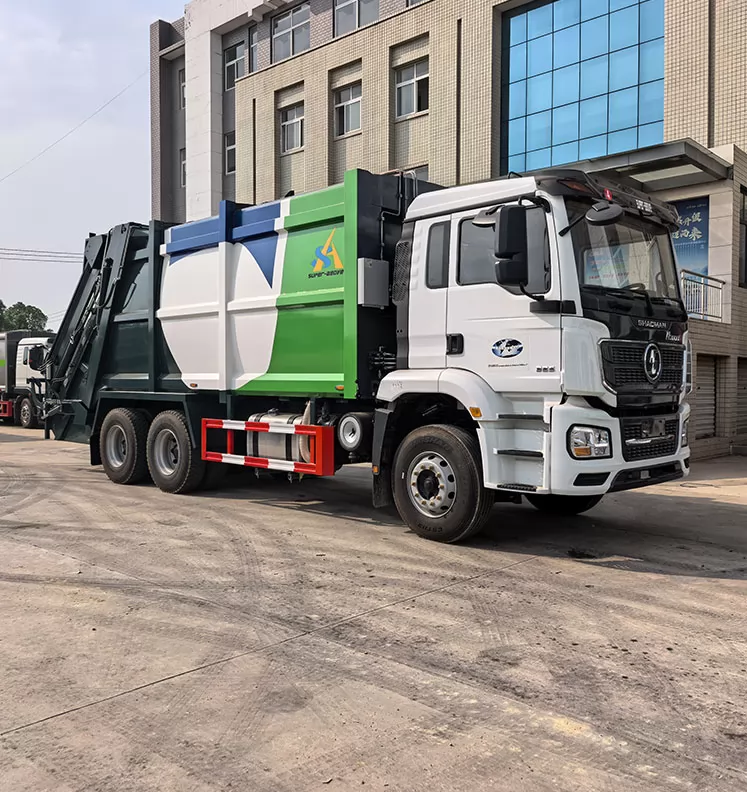

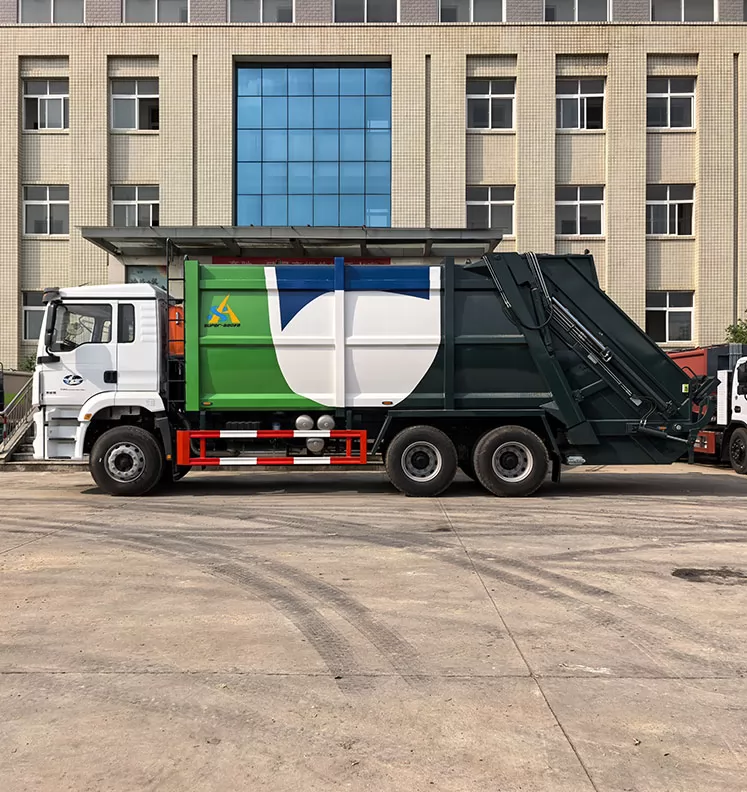

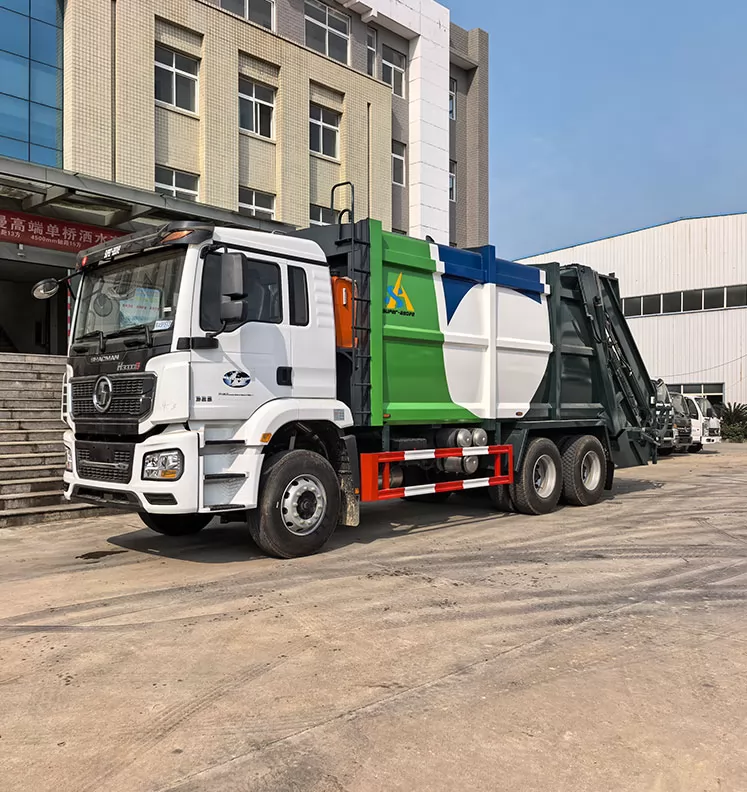

| SHACMAN brand 26CBM Compactor Garbage Truck | |||
| Vehicle parameters | Body parameters | ||
| Name | Rear loading compactor garbage truck | Body capacity | 26 m³ |
| Chassis brand | Shacman | Appearance of the body | Square/Arc-shaped |
| Overall vehicle dimensions( mm) | 10070,10120,10150, 10320×2500×3450 | Body material | 6mm on the side / 8mm at the bottom(Hardox steel or NM550) |
| Total mass (kg) | 28000 | Compression ratio | ≥2.5 |
| Curb weight (kg) | - | Filler volume | 1.5m3 |
| Curb weight (kg) | 15805,15405 | The loading cycle time is once | ≤40 s |
| Wheelbase (mm) | 4550+1350 | Shirking junk time | ≤45 s |
| Front overhang/Rear overhang (mm) | - | Control mode | PLC+manual |
| Gearbox | Manual 11 | Pressure of the hydraulic system | 16Mpa |
| Engine model | WP8.350E61 | Hydraulic oil pump | famous brand |
| Engine power | 257kw(350ps) | Afterloading mechanism | 120L/360L/660L/1100L |
| Tyre | 11.00R20 | ||

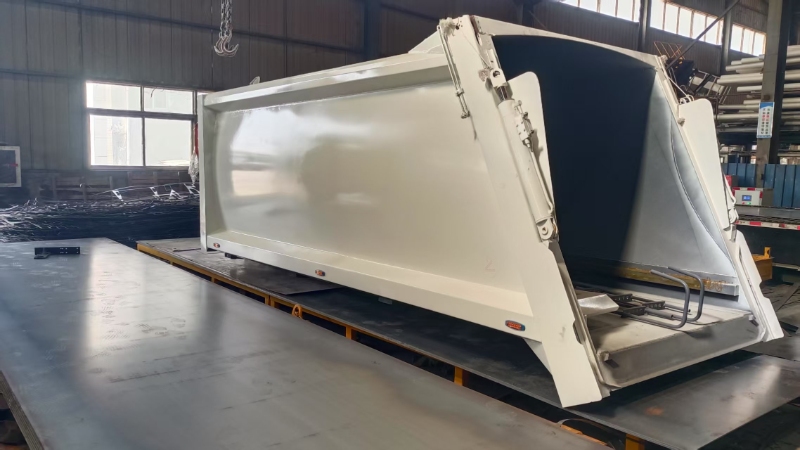

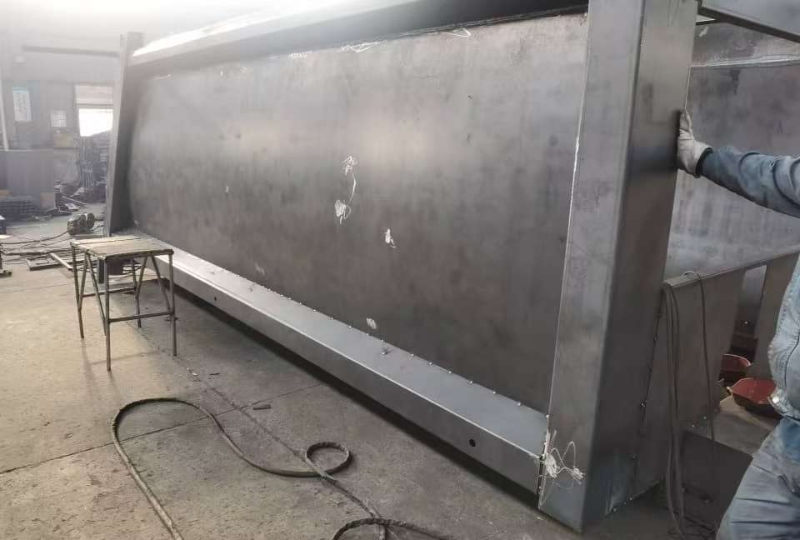

1.The material of the compactor garbage truck body adopts high-strength manganese steel plate. The thickness is 6mm on the side and 8mm at the bottom. NM550 or Hardox steel can also be selected.
The chassis is seamlessly welded with folded edges as a whole, eliminating leakage. It is wear-resistant, corrosion-resistant and does not deform.

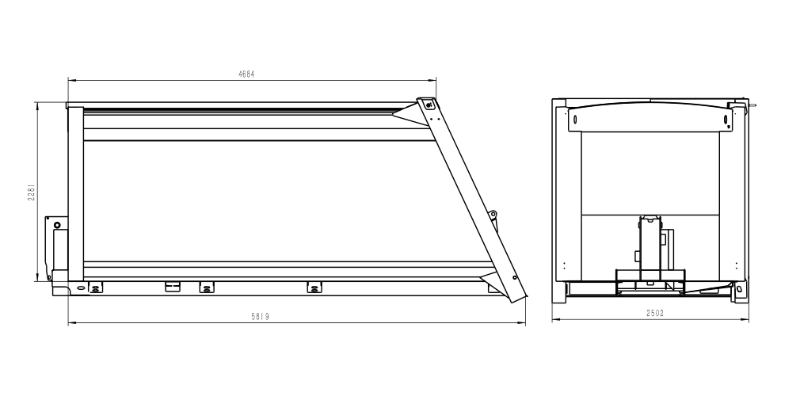

Body capacity: The box length is designed according to the needs of the truck, and different capacities range from 7m³ to 38m³

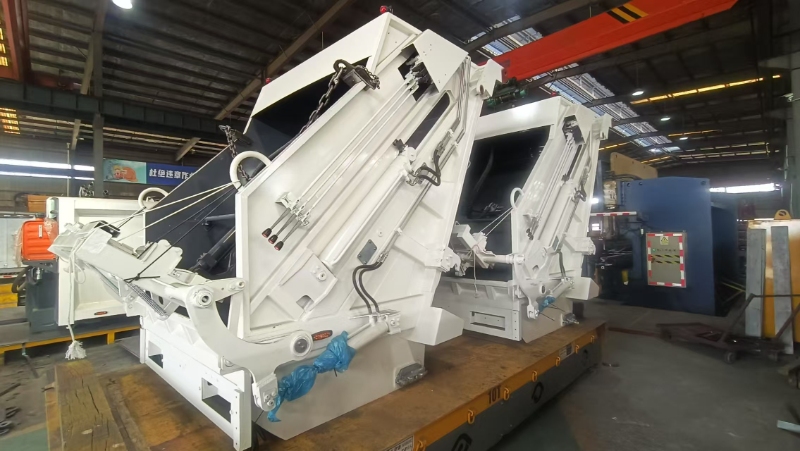

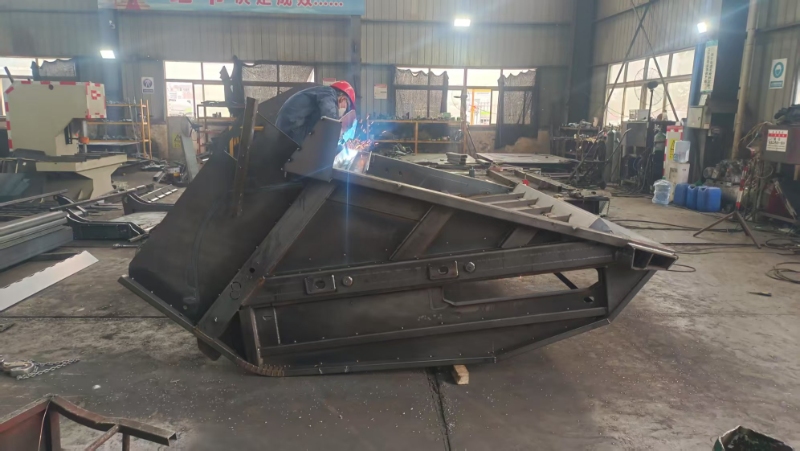

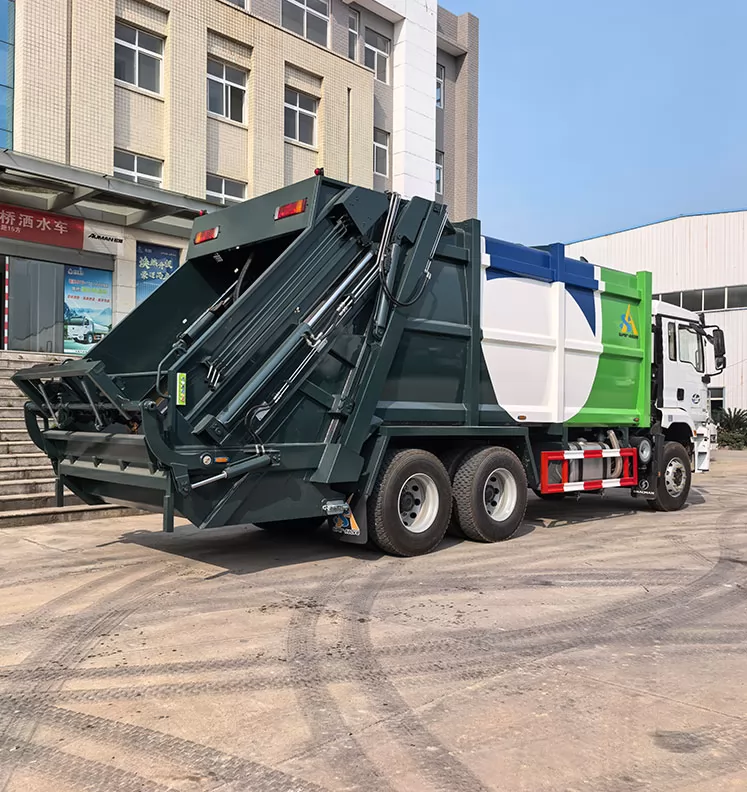

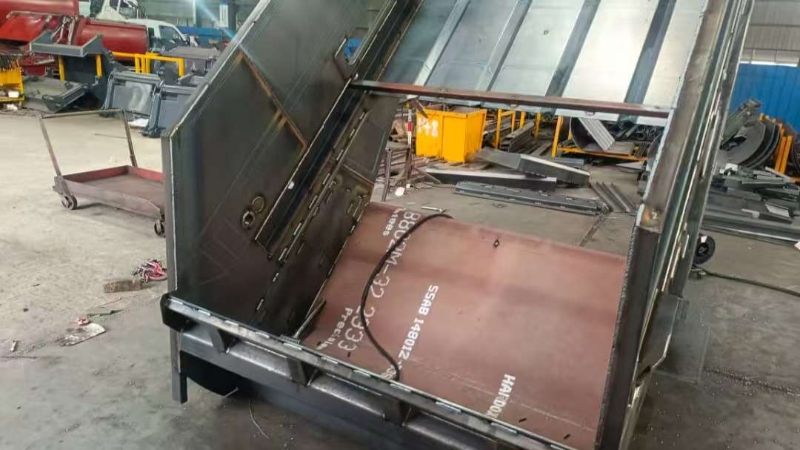

2.The filling device is mainly composed of the filling device assembly, slide plate, scraper and other components. They adopt high-quality load-bearing beam and plate or box structure, and are made of high-strength wear-resistant steel plates. The structure is firm and the weight is light
3. At the joint surface between the garbage bin and the filler, a specially made rubber sealing strip was installed. the hydraulic locking device is adopted for compression sealing. A specially structured water collection trough is designed in the lower part to effectively prevent the sewage floor drain.
4. The electrical control system (PLC) control reduces the failure rate and avoids misoperation
5. The reversing mechanism of the compressed garbage truck is available in capacities of 120L, 240L, 660L and 1100L

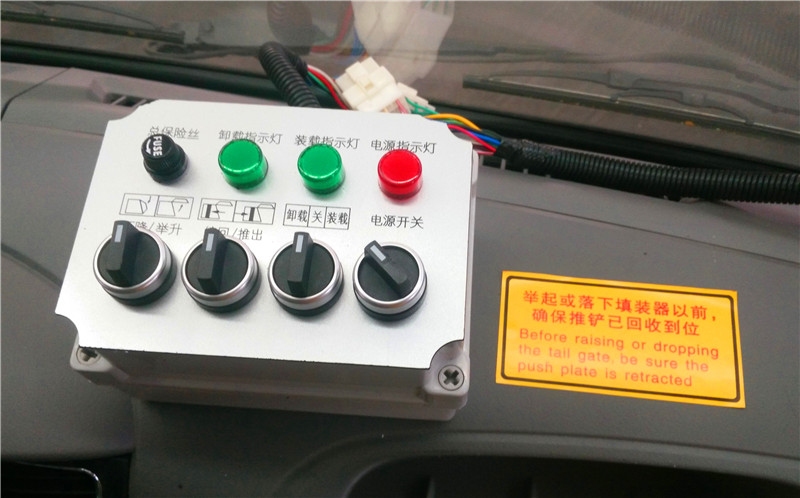

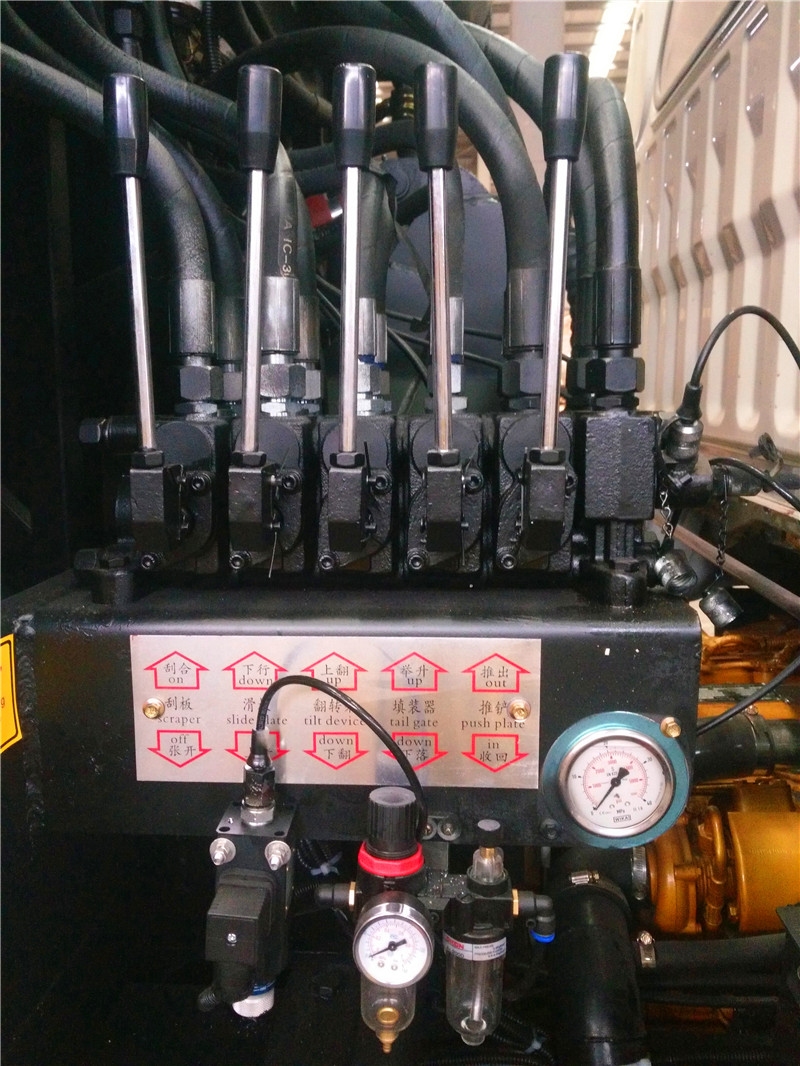

6. Operation mode: There are two modes, automatic and manual. The operation control boxes are respectively installed in the driver's cabin and the rear of the vehicle, very convenient
