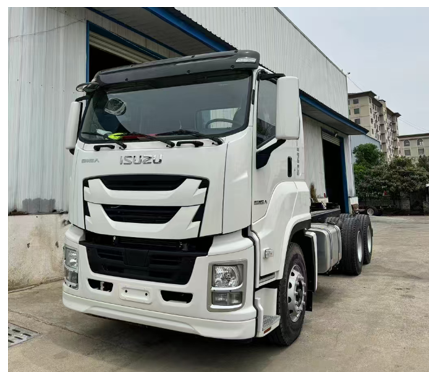

ISUZU Chassis Introduction
| Products Technical Specification | |

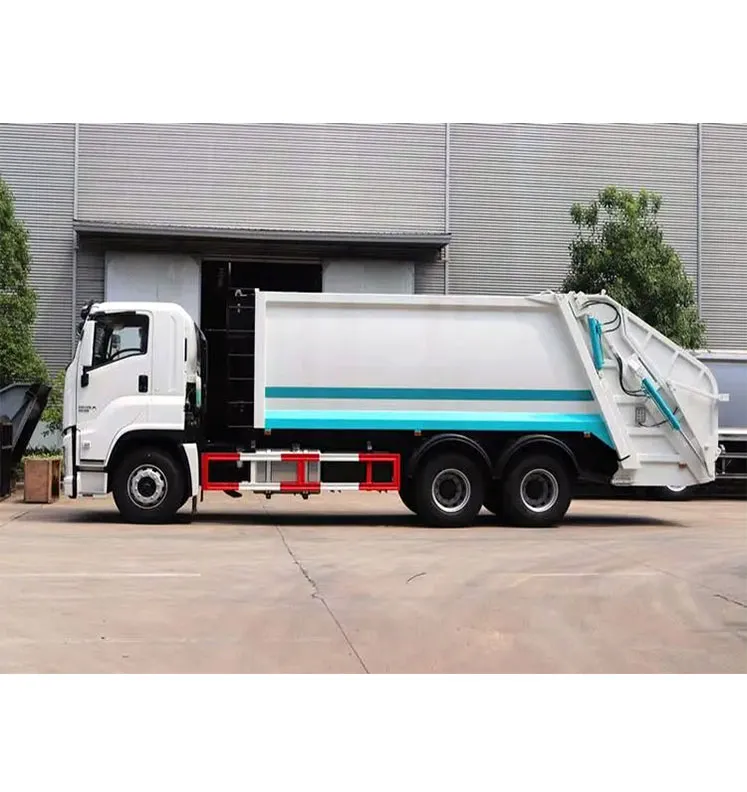

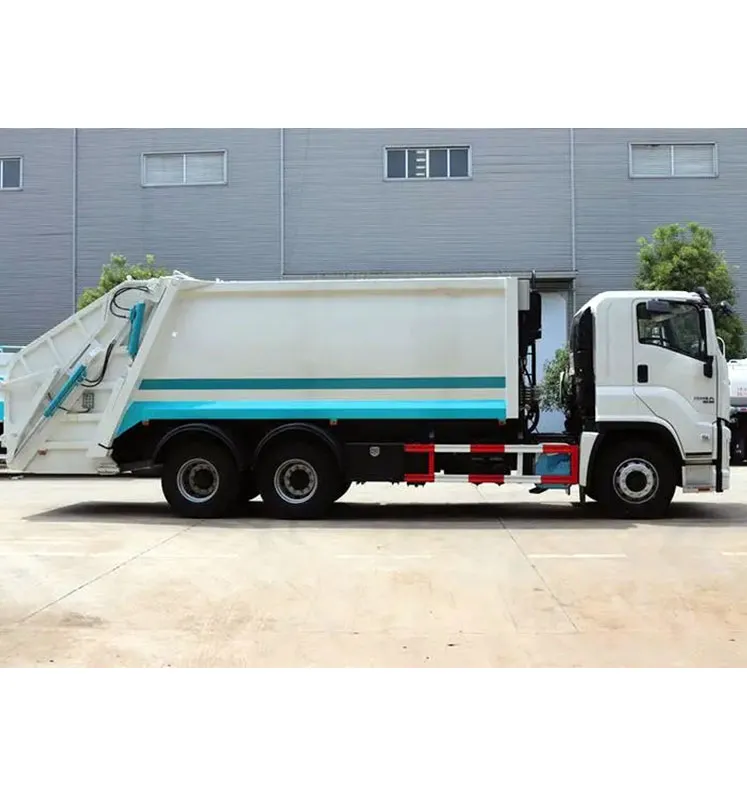

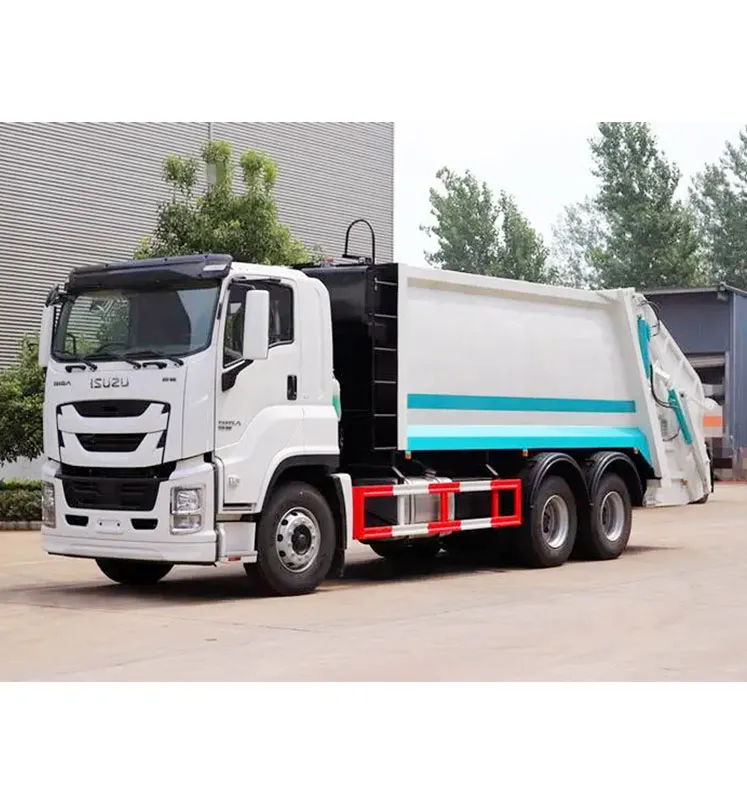

| Name | ISUZU GIAG 23cbm Rear Loader Compactor |
| Cab | Power steering, one bed with air condition,USB,direction assistance |
| Overall dimensions（mm） | 10600×2550×358 0 |
| Engine | Isuzu 6UZ1-TCG60 |
| Type | Diesel,6-cylinder in line with water cooling, turbo-charging |
| ax. power | 380HP /279Kw |
| Max. torque | 1800N.m |
| Displacement | 9839ml |
| Emission level | Euro 6 |
| Wheelbase | 4600+1370 mm |
| Drive type | 6x4,LHD |
| Tire | 315/80R22.5 ;10+1 pcs |
| Gear Box | Fast 12forwards 2revers,manual |
| Compactor body | |
| Capacity: | 23cbm |
| Sewage tank: | 300L |
| Material: | steel ;side 4mm bottom 5mm |
| Compression ratio: | ≥1:3.4 |
| Loading cycling time: / Unloading garbage time: | ≤25s ; ≤15s |
| Other | With rear and front working light, 4 operating modes, with discharge valve.1. Include garbage carriage,sewage tanker,a packer,scraper,shovel,multi-way reversing valve and hydraulic system. 2. With convenient and efficient garbage collection function, high compression ratio, large loading capacity, automatic operation, good sealing. 3.The dirty water is come into the sewage tank during compression; the main part is high quality imported parts. |
| Painting | According to the requirements |
Engine
This garbage truck is equipped with the 50 brand 6HK1-TCG60 engine, meeting the Euro 6 emission standards. It features a powerful 300 horsepower and a torque output of 1000 N.m, ensuring the stability and reliability of the vehicle in complex road conditions. The 7790ML displacement guarantees the fuel economy of the vehicle.
Transmission
Use the Fatester brand 9JS119TA transmission.
This manual transmission has direct gear and climbing gear designs, equipped with synchronizers, and can provide flexible shifting experiences according to different road conditions.

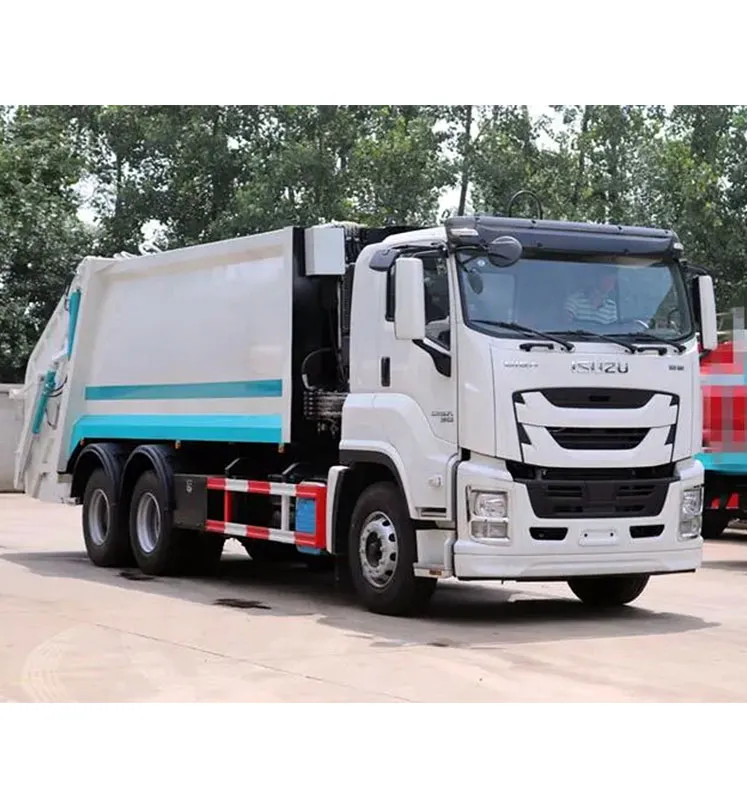

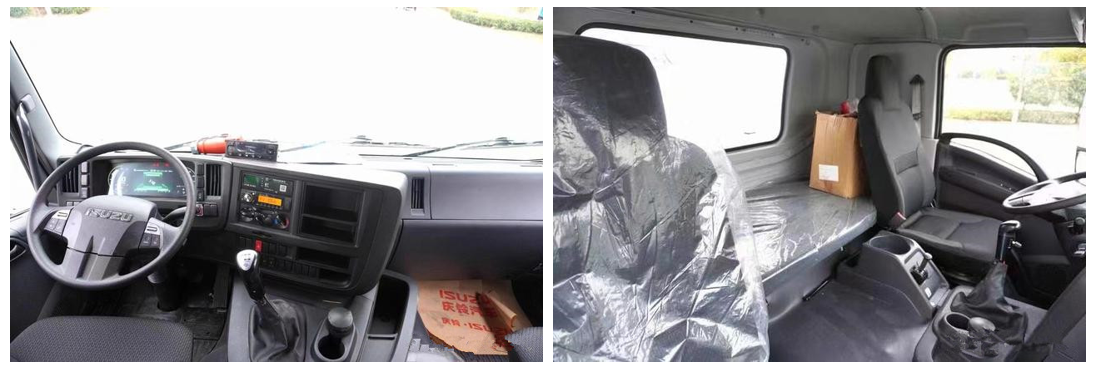

Cabin
The new ISUZU GIGA cab is adopted, with seats capable of accommodating three people, providing a spacious and comfortable working environment for the driver and the co-driver.
The air suspension cab and air suspension seats are equipped, which alleviate the fatigue caused by long driving.
The air conditioning systems with both cooling and heating functions, the hydraulic power-assisted steering, the clutch and brake assistance systems, etc., have also enhanced the comfort and safety of driving.
In addition, advanced technologies such as cruise control, multifunctional LCD dashboards, and electrically heated rearview mirrors have been added.
Chassis system
Axle: Front disc and rear drum brake design, with a rear axle ratio of 4.555.
This design ensures the stability and safety of the vehicle during high-speed driving and heavy loads. Additionally, the 6×4 drive system and the design of the central differential lock on the mid and rear axles further enhance the vehicle's off-road capabilities and passability.
Safety performance
Equipped with braking systems such as anti-lock brakes, ABS and exhaust braking, it ensures the braking performance and safety of the vehicle in emergency situations.
The aluminum alloy 400-liter fuel tank and 295/80R22.5 18PR tires enhance the safety and reliability of the vehicle.

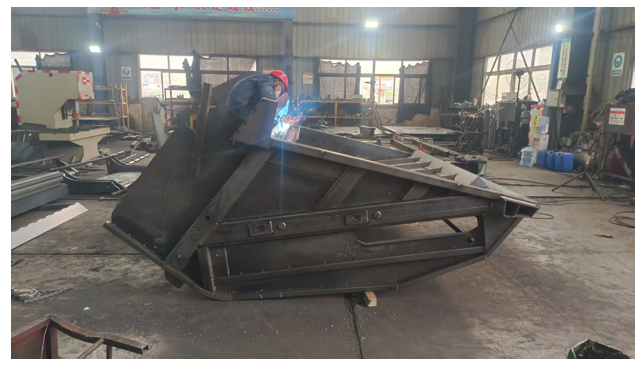

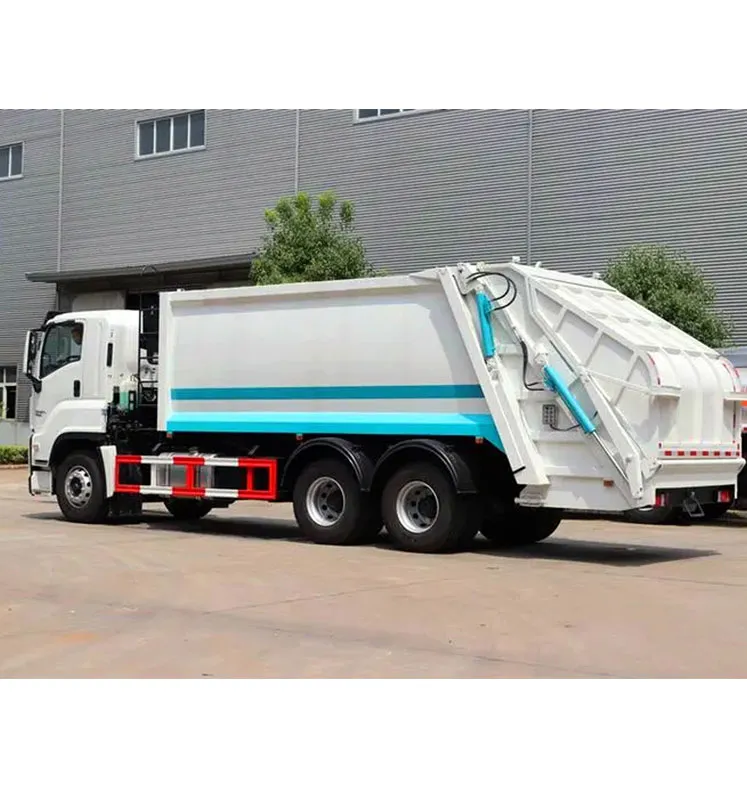

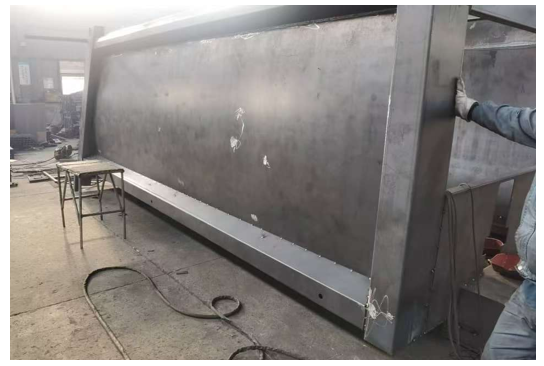

Compactor body upper structure
The material of the box is strong, resistant to corrosion and erosion, and has good wear resistance. It has high strength and strong corrosion resistance, resulting in a long service life.
By adopting advanced bidirectional compression technology, the compression ratio is high, which is at the leading edge in the industry. The loading time is short and the hopper capacity of the filling device is large.

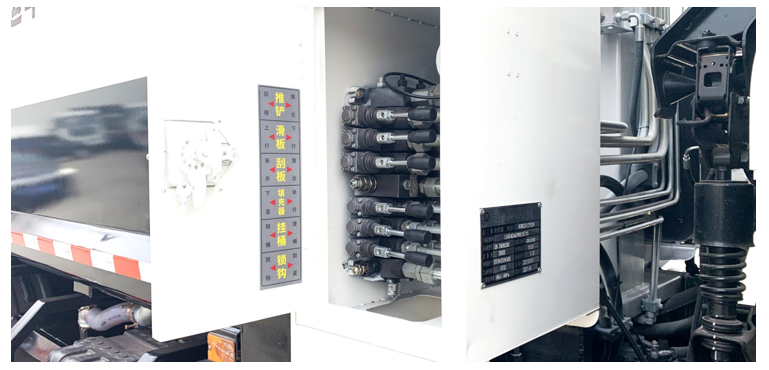

The key components of the electrical and hydraulic systems all adopt high-quality brands, such as: switches, buttons, cylinder seals, etc., which enhance the reliability of the garbage truck.

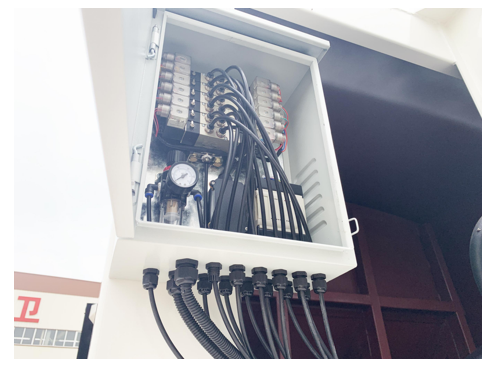

Advanced control technology. Adopting an advanced PLC control mode

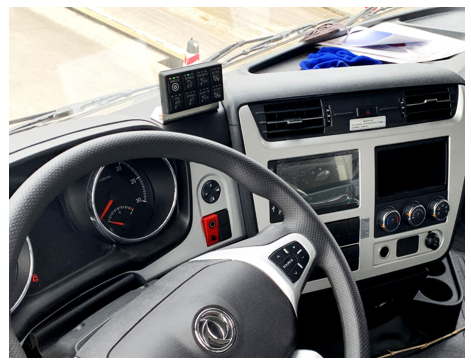

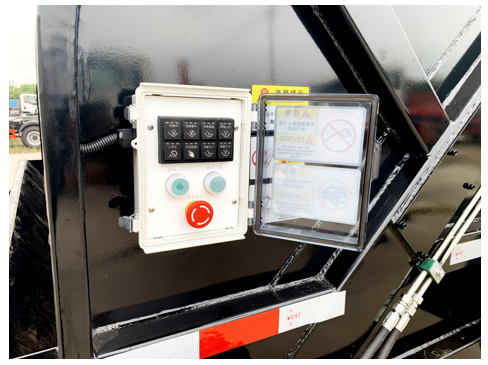

Front control panel operation panel and Post-end control operator panel
