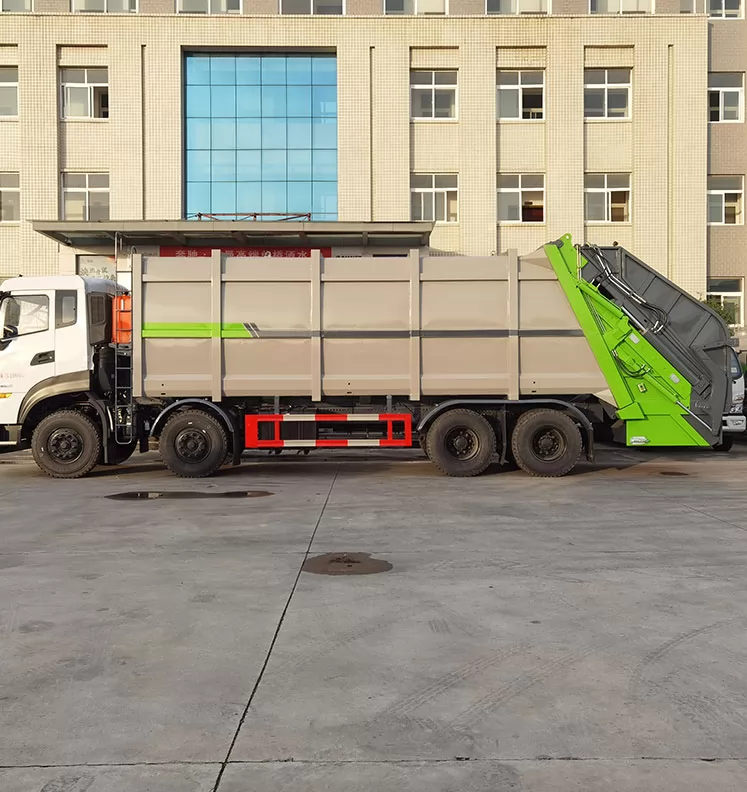

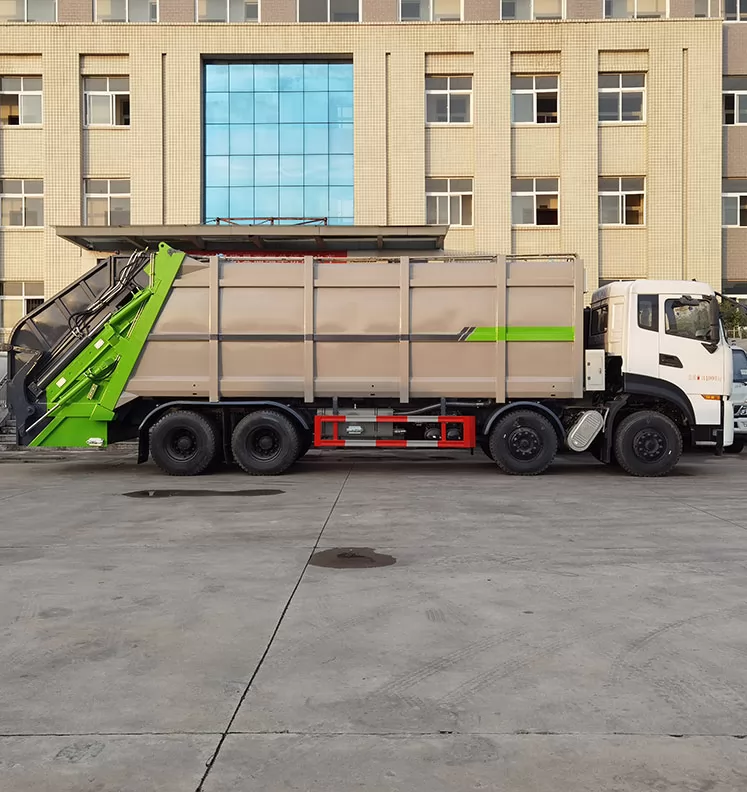

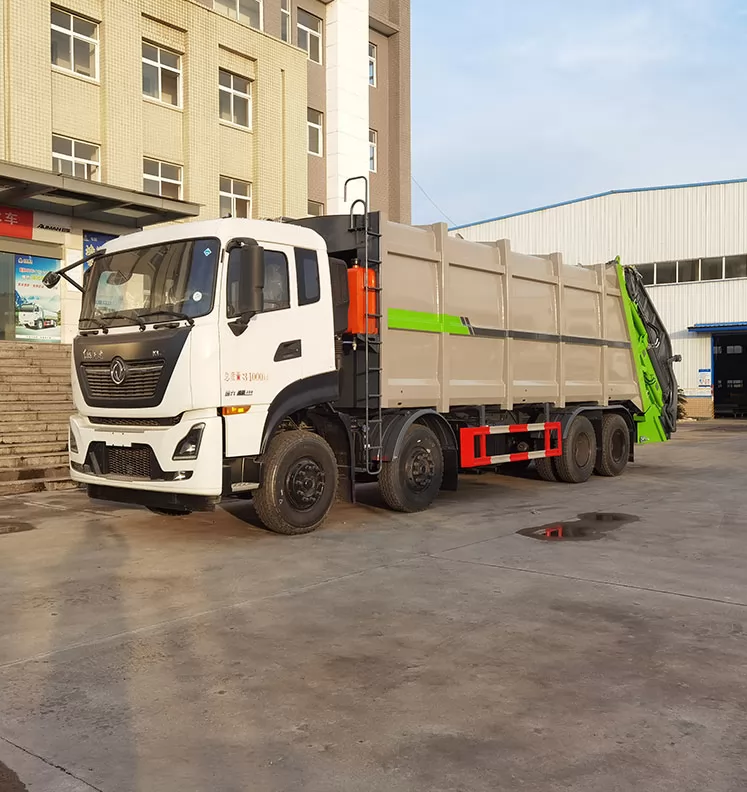

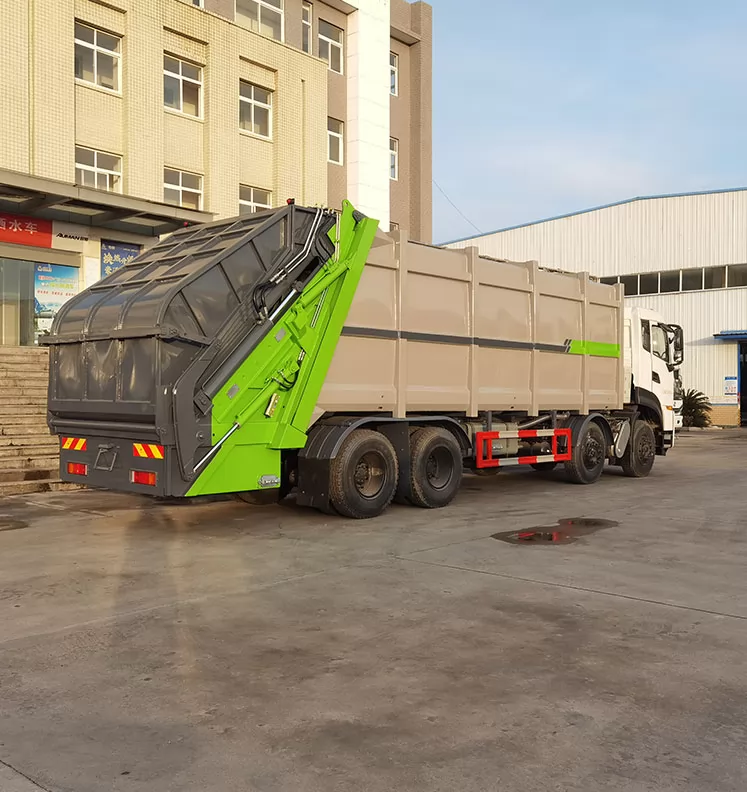

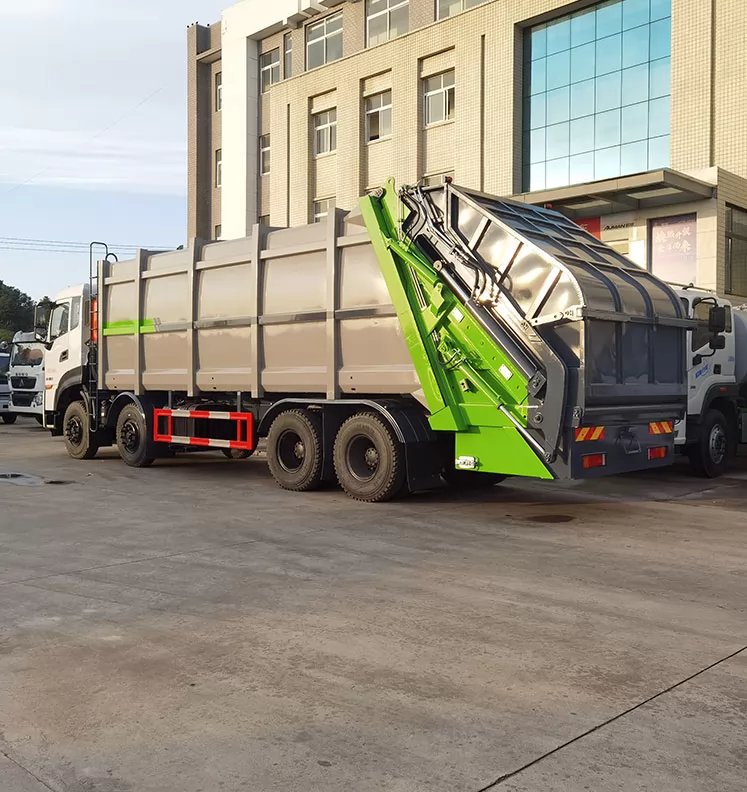

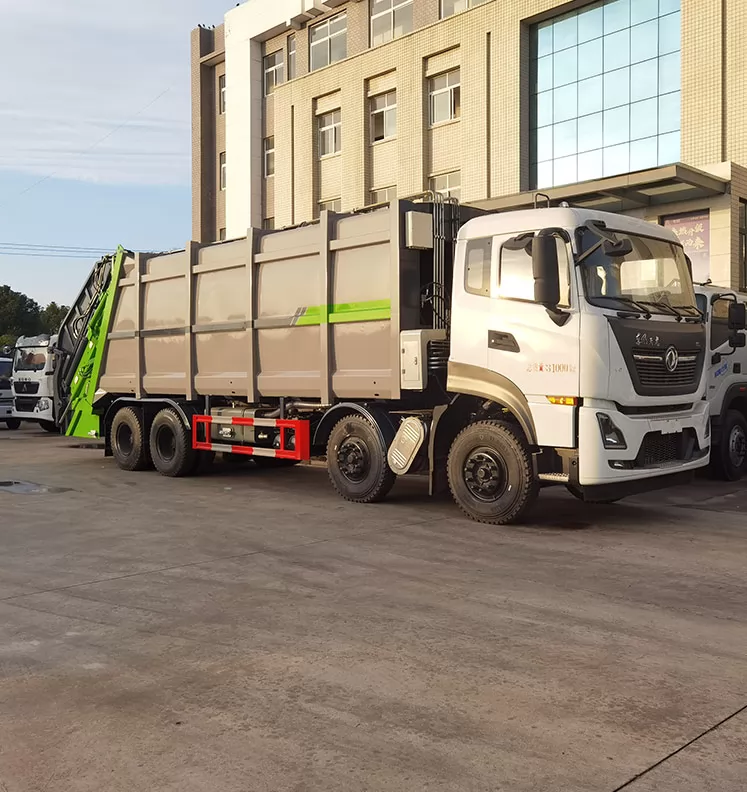

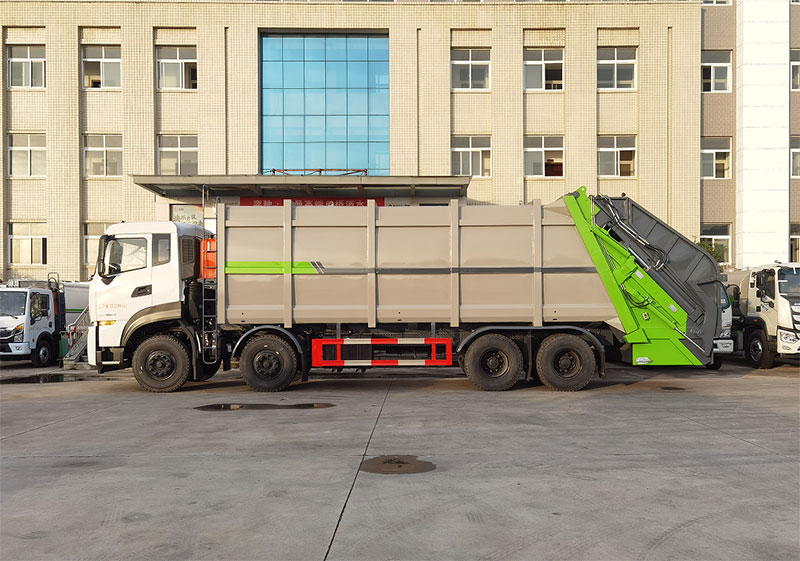

8x4 DongFeng Brand 38m³ Compactor Garbage Truck

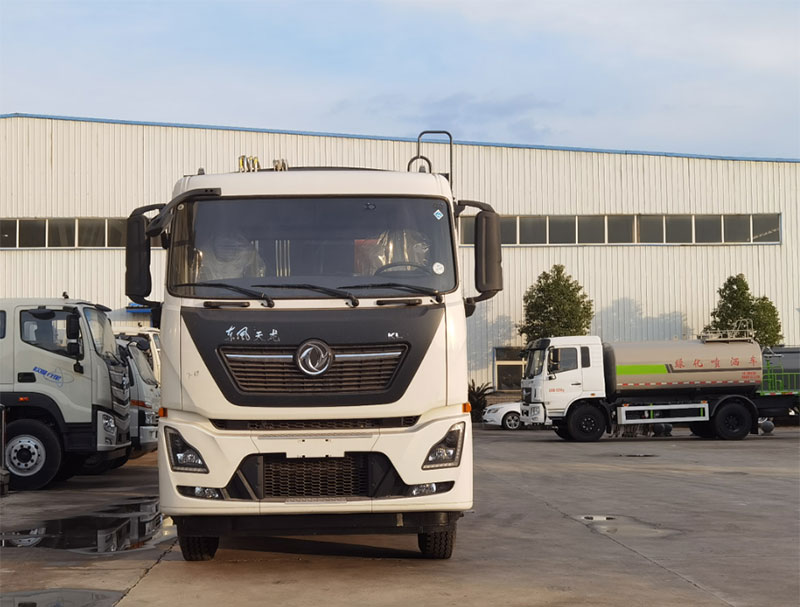

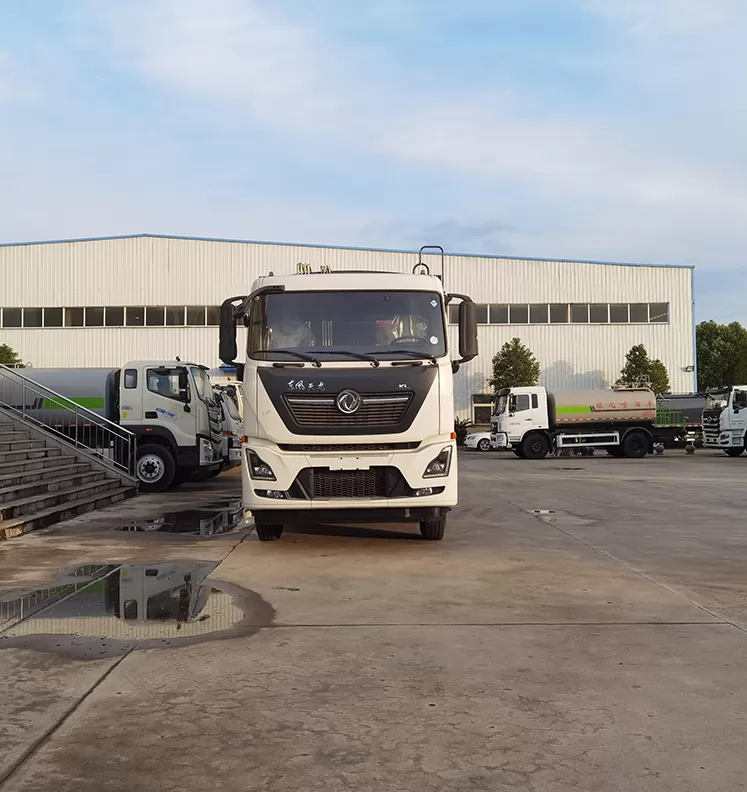

The chassis of the compactor garbage truck: DONGFENG KC with a front four and rear eight, a high-roof cab,

 Engine : WEICHAI engine diesel 350-horsepower, and is equipped with air conditioning, electric glass, power steering, ABS, etc.

Wheelbase: 1950+3425+1400mm

Transmission: FAST 10-speed

Front bridge / rear bridge :5.5-ton MAN  \ 11.5-ton MAN,

300 double-layer girder

Tires: 11.00 steel wire tires, 12 pieces

Fuel tank: 300 liters of aluminum alloy,

In addition, we can also enhance the production of garbage trucks for other brands, FAW, ISUZU, SHACMAN, SINOTRUK, FOTON, BEIBEN, HINO,

8*4 compactor garbage truck with 38m³ body configuration:

Function Introduction: With body volume of 38 m³, it is used for loading domestic waste and consists of a sealed waste body, a filling device, a pusher, a hydraulic transmission system and an electrical control system.

By adopting the integrated electrical-hydraulic technology and combining it with an automatic control system, through dedicated devices such as the garbage body, filling device and pusher, the garbage can be poured in, crushed or flattened, and strongly lifted for filling. It can also be pushed into the vehicle compartment, compelled and pushed away.

All the wastewater generated during the compression process enters the sewage tank, solving the problem of secondary pollution during the transportation of garbage.

Different garbage collection methods can be equipped with different bucket flipping mechanisms: 120L, 240L, 360, 660L, 1100L.

Main performance and features of the 30m³compactor garbage truck:

1. The body is made of a solid frame structure welded with reinforcing beams and special steel, with a side thickness of 6mm and a bottom thickness of 8mm.

2. The push shovel is composed of a rectangular tube frame and a folded panel, featuring a lightweight structure, uniform distribution of garbage, and clean unloading.

3.The components of the electro-hydraulic system adopt well-known Chinese brands, all the seals of the oil cylinder adopt globally renowned brands

4.In the hydraulic system of the lifting filler, a bidirectional balance valve is set up. To ensure the smooth descent of the filler, the direct connection between the lifting cylinder and the hydraulic hose is cut off. Even if the oil pipe bursts, the filler will not suddenly fall, enhancing safety.

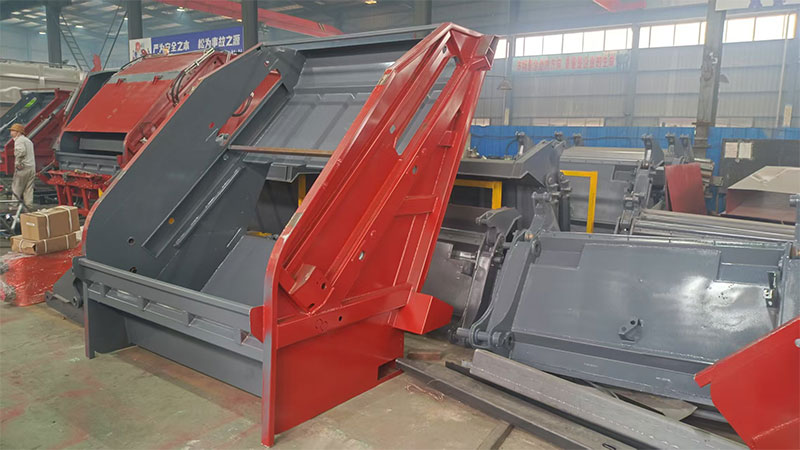

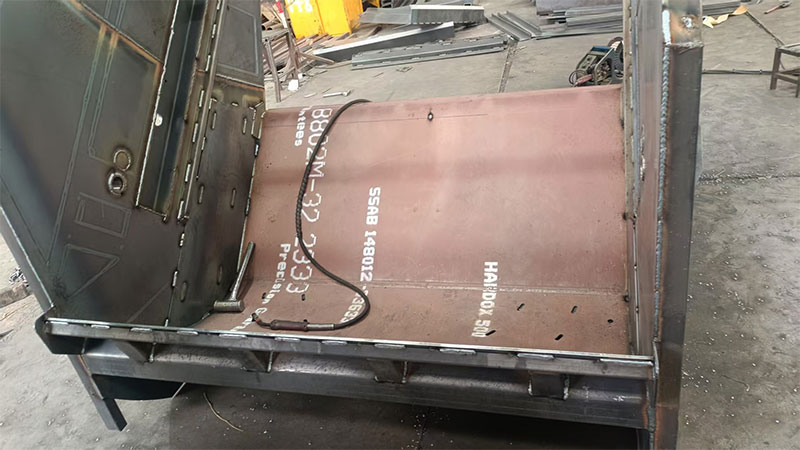

5. The filler assembly: It is composed of components such as the filler shell, slide plate, and scraper,

The slide track is cold-formed with high-strength wear-resistant materials. The two sides of the slide plate are made of integral nylon sliders, which have self-lubricating properties, high stability, convenient maintenance and better wear resistance

The lower arc-shaped plate is made of high-strength wear-resistant materials. There are water leakage ports processed on the arc-shaped plate to facilitate the inflow of sewage from the filling device into the lower sewage storage tank and prevent sewage leakage during transportation. A large-capacity sewage storage tank is set at the lower part of the filling device, and there are large-diameter galvanized sewage discharge ports on both sides of the sewage tank;

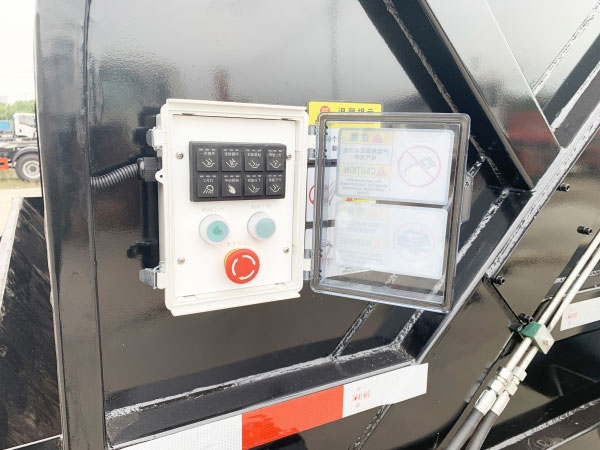

6. Operation control: Installed respectively in the driver's cabin and on the right side of the rear of the vehicle, equipped with an emergency stop button and a remote control. the control box in the driver's cabin: controls the pushing and unloading and selects the operation mode

The control box at the rear of the vehicle: controls the filling mechanism and the bucket flipping mechanism
