| Configuration instructions | |
| Chassis | JMC , JX1083TK25 |
| Engine | Diesel engine, 112 KW, Euro3 / 4 emission standard |
| Cabin | Single row，3 passengers, cab with air conditioning |
| Power system | Mechanical operation |
| Work platform | 1100X650X1150 |
| Boom form | Four-section, six-sided working arm, synchronously retractable |
| Rotary device | 360-degree continuous rotation |
| Outrigger | Front V and H type, individually adjustable |
| operating | Electrical operation of work platform and ground remote control |
| Control System | Electro-hydraulic proportional control system for stepless speed regulation |
| Leveling system | Hydraulic automatic leveling |

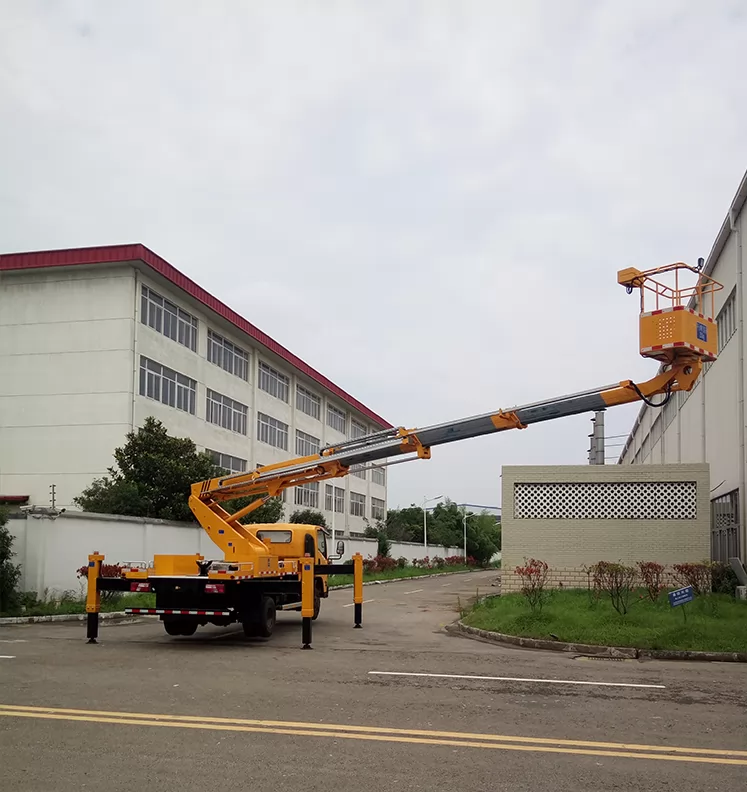

| JMC 22M Aerial work truck | ||||
| Sort | Item | Unit | Data | |
| Size | long | mm | 7750 | |
| width | mm | 2160 | ||
| high | mm | 3190 | ||
| Quality parameter | Crew (including driver) | 3 | ||
| Total mass | kg | 7775 | ||
| Main performance | Working platform rated load | kg | 240 | |
| Working height | m | 22 | ||
| maximum Working height Operating range | m | 6.4 | ||
| maximum Operating range | m | 12.6 | ||
| maximum Operating range Working height | m | 5.36 | ||
| Outrigger span | Horizontal | mm | 5000 | |
| Longitudinal | mm | 3700 | ||
| Boom Amplitude time | s | 100 | ||
| Boom turn around speed | s/r | 75 | ||
| Outrigger Retract time | s | 40 | ||
| Driving specifications | front Hang | mm | 1155 | |
| Rear Hang | mm | 2205 | ||
| Back extension | mm | 1250 | ||
| Wheelbase | mm | 3815 | ||
| Top speed | Km/h | 100 | ||
| Minimum ground clearance | mm | 195 | ||
| name | Function Description |
| Outrigger detection function | When the outriggers are under stress, intelligent movement is limited to protect safety， |
| Level detection function | Real-time detection of vehicle level |
| Electric emergency pump | When the engine and main pump error occured,Can send staff back to the ground |
| Emergency stop | For emergency stop operation |
| Night safety warning device | Engineering strobe light, flashlight |
| Vehicle Horizontal state Tester | Detection Vehicle Tilt both horizontally and vertically |
