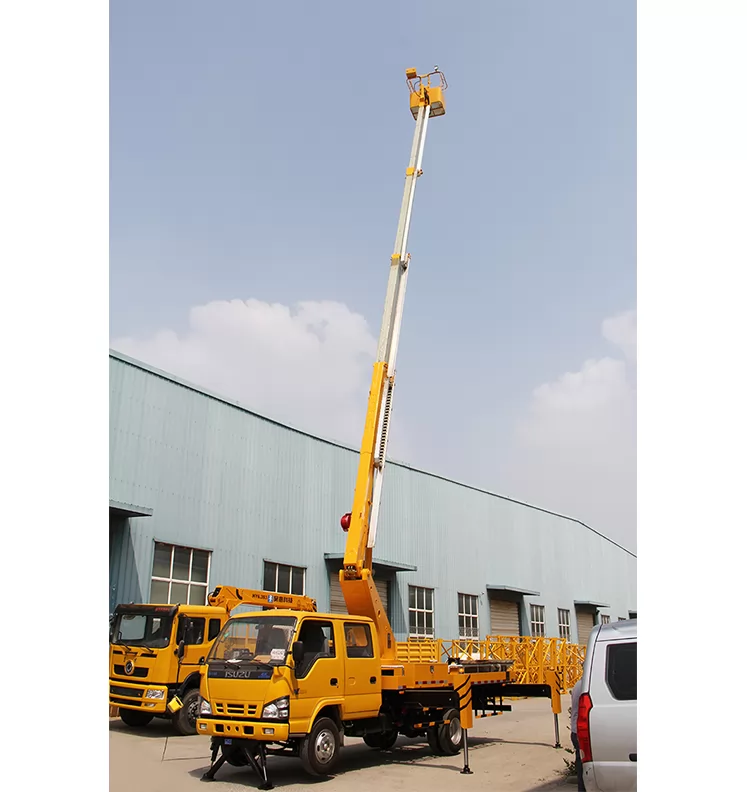

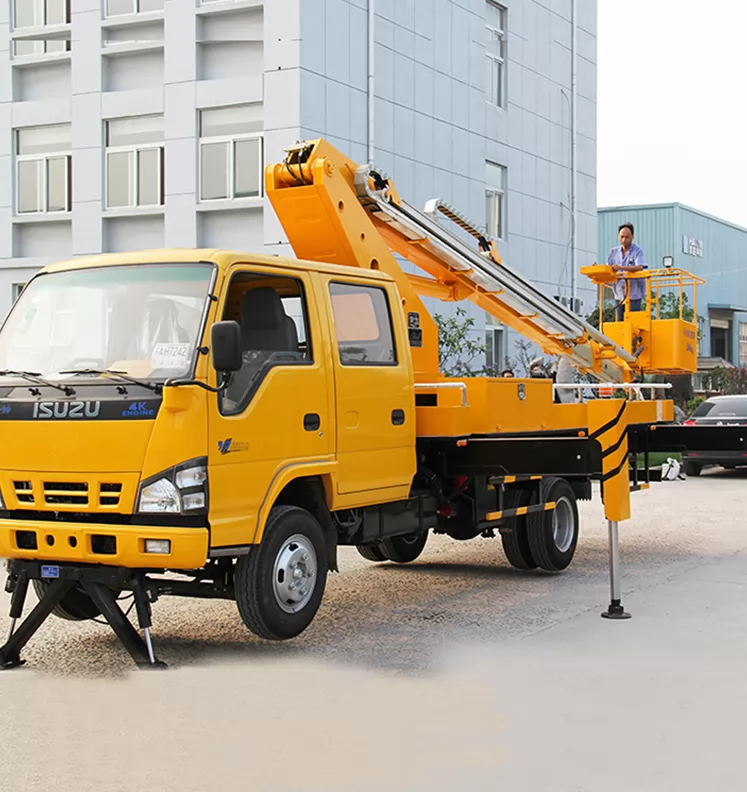

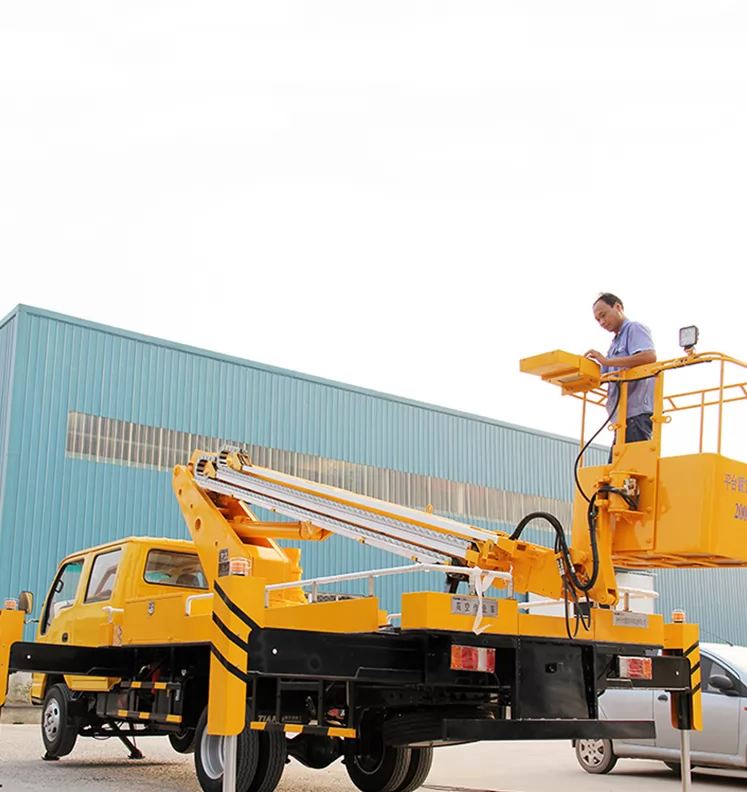

ISUZU 20M High-altitude Operation Truck

Products Description

Product Name	ISUZU 20M High-altitude Operation Truck
Item	Unit	Parameter
Chassis model		China ISUZU 600P
Overall dimensions	mm	7250×2200×3150 (Reference Size)
Wheel base	mm	3815
Displacement	cc	5193
power	Kw/hp	96KW / 130
Max speed	km/h	100
Tire specification	700R16	Engine model	4KH1CN5HS
Traction system	4×2 ; LHD	transmission	MSB 5
Number of axles	2	colour	option
Emission Standards	Euro 5	cabin	Double row ; 3+2 People ; With air conditioning; Power steering

Item		Unit	Data
Work Platform Rated Load		kg	200
maximum working height		m	20.5
Working range at maximum working height		m	3
Maximum working range		m	9
Working height at maximum working range		m	14
Outrigger span	vertical	m	3900
Outrigger span	horizontal	m	3900，3420
Outrigger retraction time	shrink	s	≥60
Outrigger retraction time	release	s	≥60
Swing speed		s/r	≥60
Platform lift time		s	≥120
Platform descent time		s	≥95

Boom	Boom form	Five-section telescopic boom
	Material	high strength steel
	undulation angle	0°-80°(relative to horizontal plane)
Outrigger	Outrigger type	Front X rear H type;Each leg can be adjusted individually,
Outrigger	Rear outrigger strobe lights	2 pcs

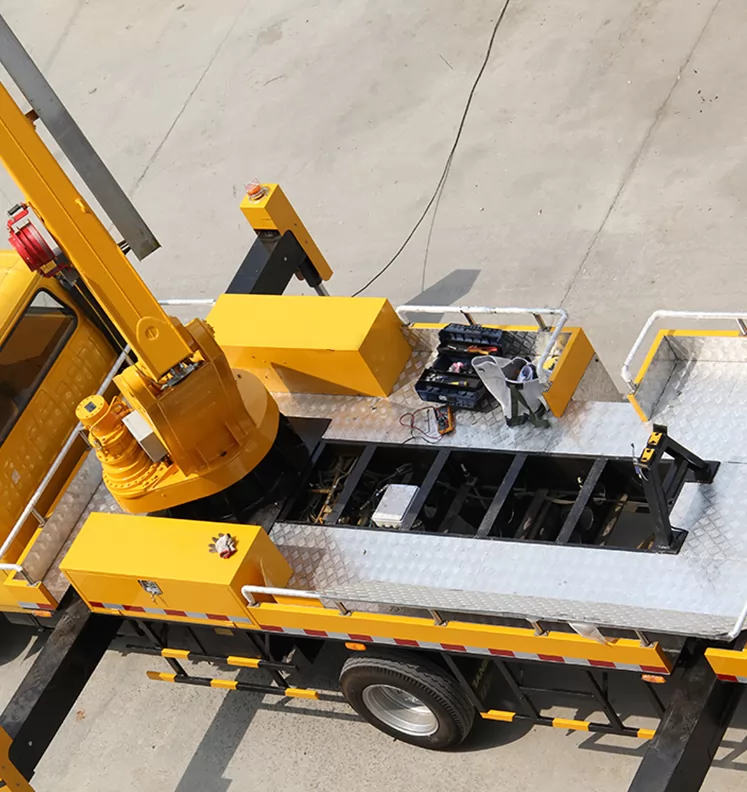

compartment	Material	High quality carbon steel, profile, anti-slip patterned aluminum plate
	Tools	2
	washing hand tank	1
	reducer	Turbine worm
	motor	BMS160

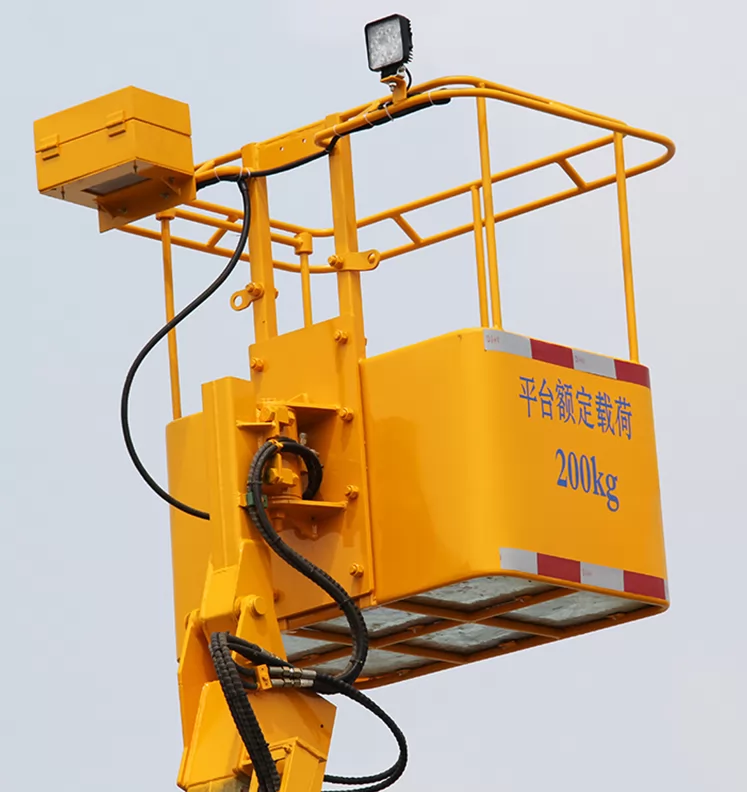

work bucket	Rated load	≤200Kg
	Material	glass fiber
	leveling form	Static hydraulic self-leveling
	rotation	360° continuous rotation
	seat belt	a pair
	leveling device	hydraulic cylinder
Hydraulic system	Hydraulic tank	65L；with level gauge
	gear pump	Quantitative pump, flow rate 25ml/r
	work pressure	With pressure gauge; 16MPa
	Hydraulic valve block	Electro-hydraulic proportional valve block with manual emergency button
	emergency pump	Electric emergency pump
operating system	Operation method	Electronic and wireless remote control
	Operation method	Turntable and gondola wireless remote control
	Engine start and stop	Two-position operation of turntable and gondola
Flashlight		for night work
fire extinguisher		10KG
